DRIVE CONNECTORS –SD-R5002

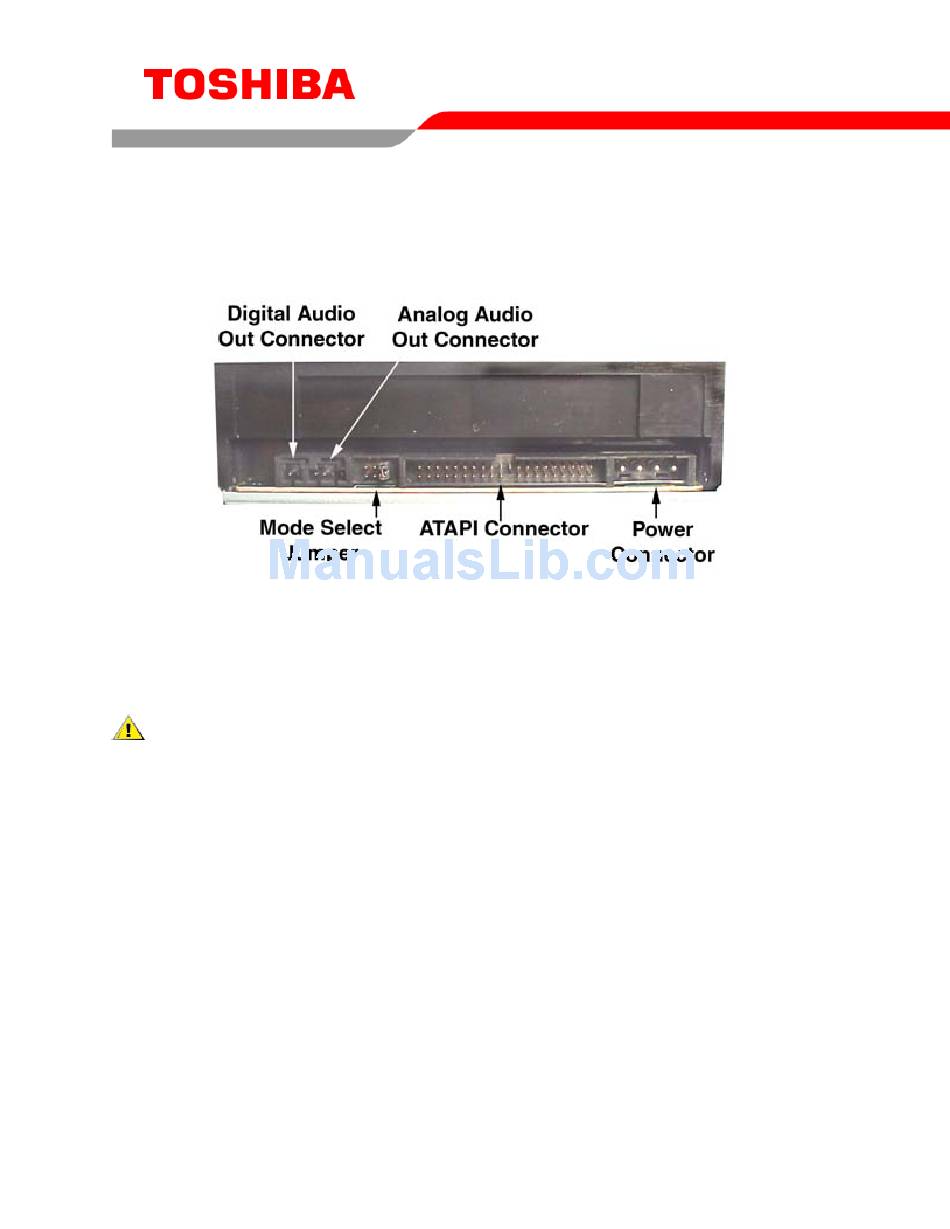

Figure 1.SD-R5002 DVD Rewriteable Drive Rear Panel - Connectors
Power is supplied to your DVD drive by the connection with your computer's +5V/+12V
Power
power cable to the power socket at the back of drive. One side of the plug has
Connector
chamfered edges, so the power connector fits only one way.
CAUTION: Severe damage to the Drive circuits may occur if power cable is plugged in
upside-down with power ON.
Supplies Analog and Digital sound to your system.
Audio
Connectors
ATAPI
The SD-R5002 DVD drive is connected to your computer system through the ATAPI
connector.
Connector
The mode select jumpers are 6 straight angle pins located on the rear of the DVD
Mode Select
drive. By placing a jumper on the pins, you can select the following functions: CL
Jumper
(CSEL), SL (Slave) or MA (Master). (see Setup for additional information).
15
