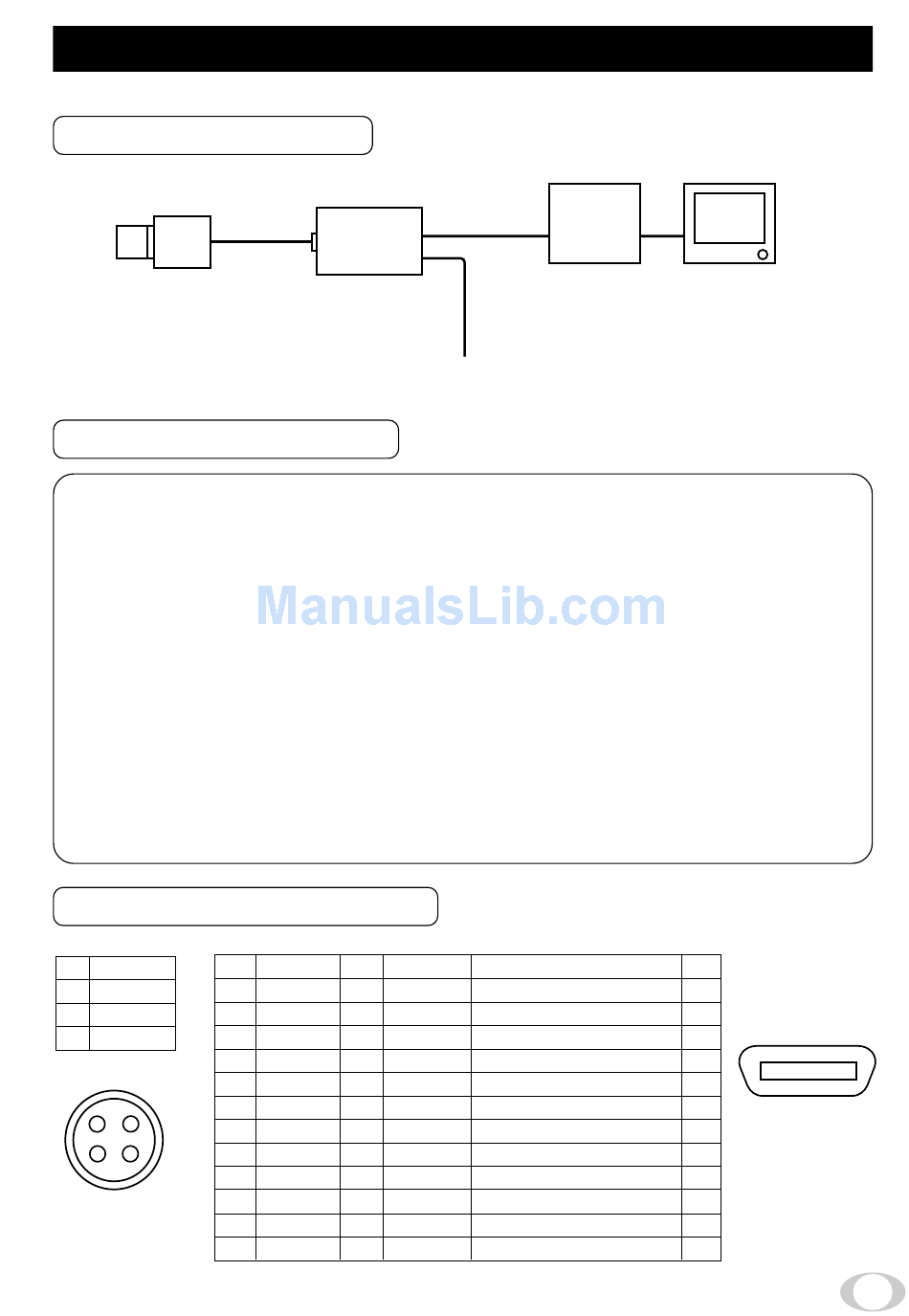

4. CONNECTION

4. 1 Standard Connection

Lans
Camera cable
(option)
for IK-TF9U
IK-TF9H
(option)

4. 2 Cautions on Connection

• Only use optional camera head model # IK-TF9H with this camera controller.
The use of another head may cause damage to the control unit and camera head.
• When connecting the camera cables, be sure to turn off the camera control unit and any other equipment
connected to it.
• For DC power supply connecting to DC IN 12V terminal, use UL listed and/or CSA approved ungrounded
type AC adaptor with the specifications described below.
Power supply voltage
Current rating
Ripple voltage
Connector
• If the securing screw on the connector of the camera cable loosens, noise may appear on the screen.
Be sure to tighten the connector completely.
• Use the standard cable for Camera Link.

4. 3 Connector Pin Assignments

DIGITAL
DC IN 12V
1 +12V
2 +12V
3 GND
4 GND
1 4
2 3
Connector used:
HR10A-7R-4PB
(HIROSE electronics
Co. Ltd) or equivalent.
Camera control unit
IK-TF9U
(option)
DC IN 12V
: 12V DC±10%
: More than 830mA, Less than2.5A
: Less than 50mV(p–p)
: HR10A–7P–4S by HIROSE electronics Co. Ltd
Pins 1, 2 : 12V
Pins 3, 4 : GND
1 GND 14 GND
2 X0- 15 X0+
3 X1- 16 X1+
4 X2- 17 X2+
5 Xcllk- 18 Xcllk+
6 X3- 19 X3+
SerTC+ SerTC-
7 20
8 21
SerTFG- SerTFG+
CC1- CC1+
9 22
10 CC2+ 23 CC2-
CC3- CC3+
11 24
12 CC4+ 25 CC4-
GND GND
13 26
Cable
(option)
Frame grabber board,
image process
equipment etc.
DC power
supply (option)
Function
Serial communication control (RXD)
Serial communication control (TXD)
Trigger pulse input
Partial scanning control
NC
NC
Monitor
I/O
–
O
O
13
O
O
O
I
26
O
Connector used:
I
12226-51000-00
I
(3M) or equivalent.
–
–
–
1
14
7
