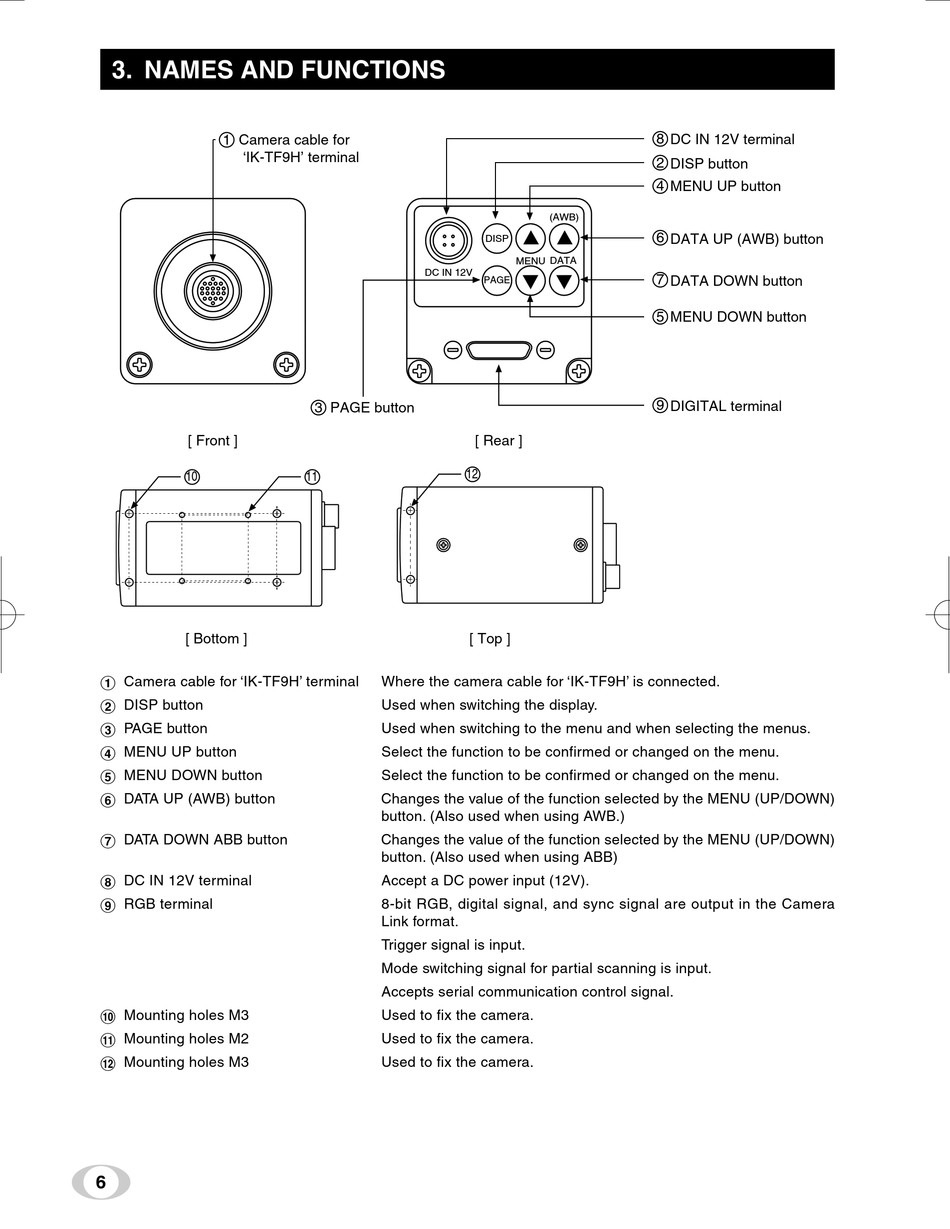

3. NAMES AND FUNCTIONS

1 Camera cable for
'IK-TF9H' terminal
[ Front ]
10
[ Bottom ]
1 Camera cable for 'IK-TF9H' terminal
2 DISP button
3 PAGE button
4 MENU UP button
5 MENU DOWN button
6 DATA UP (AWB) button
7 DATA DOWN ABB button
8 DC IN 12V terminal
9 RGB terminal
! Mounting holes M3
" Mounting holes M2
# Mounting holes M3
6
DC IN 12V
3 PAGE button
11
Where the camera cable for 'IK-TF9H' is connected.
Used when switching the display.
Used when switching to the menu and when selecting the menus.
Select the function to be confirmed or changed on the menu.
Select the function to be confirmed or changed on the menu.
Changes the value of the function selected by the MENU (UP/DOWN)
button. (Also used when using AWB.)
Changes the value of the function selected by the MENU (UP/DOWN)
button. (Also used when using ABB)
Accept a DC power input (12V).
8-bit RGB, digital signal, and sync signal are output in the Camera
Link format.
Trigger signal is input.
Mode switching signal for partial scanning is input.
Accepts serial communication control signal.
Used to fix the camera.
Used to fix the camera.
Used to fix the camera.
(AWB)
DISP
MENU DATA
PAGE
[ Rear ]
12
[ Top ]
8 DC IN 12V terminal
2
DISP button
4 MENU UP button
6
DATA UP (AWB) button
7
DATA DOWN button
5 MENU DOWN button
9
DIGITAL terminal
