Summary of Contents for Tekkeon TekCharge MP1580

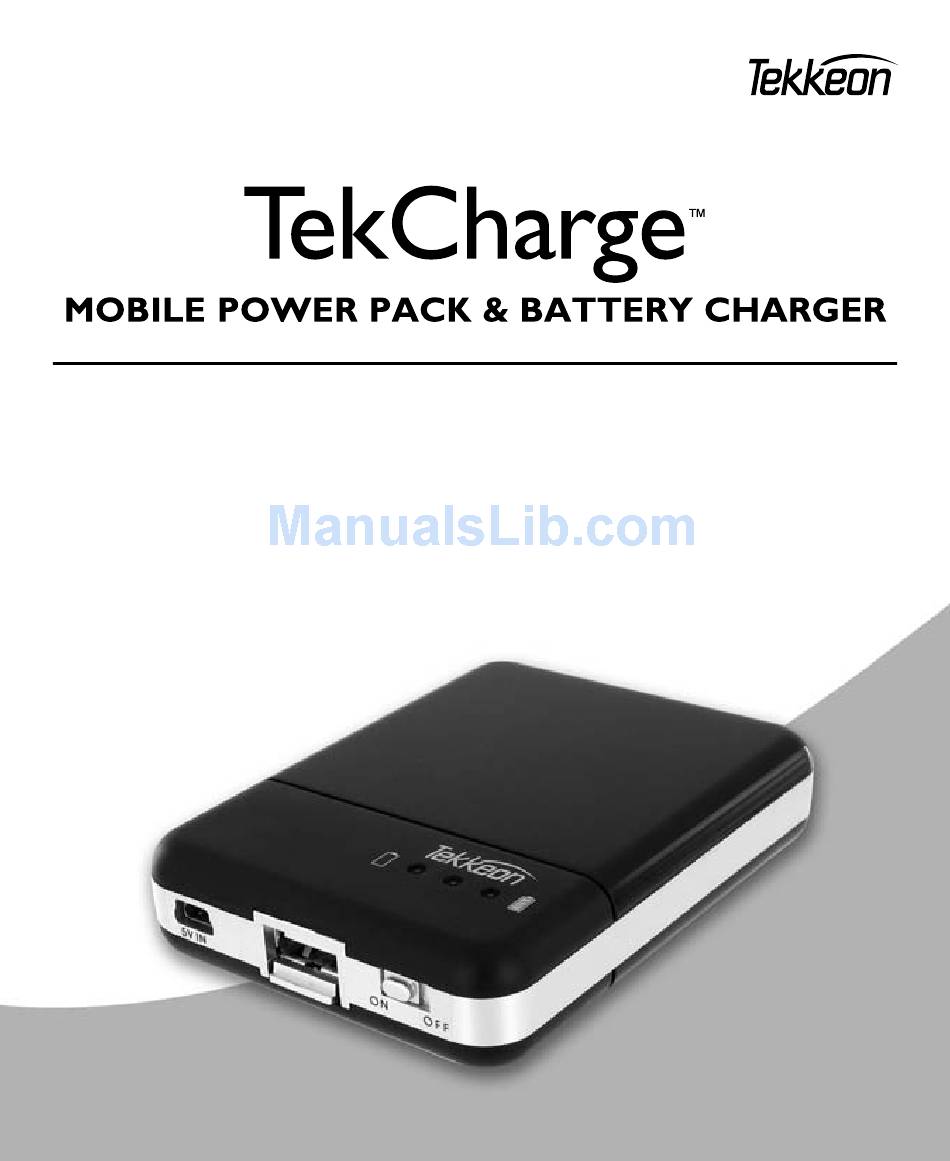

- Page 1 MP1580 User Guide...
-
Page 2: Table Of Contents
User Guide Contents Overview ....................2 Getting Started ..................2 Unpacking TekCharge MP1580 ............2 Getting to Know TekCharge MP1580...........3 Installing Batteries ................4 Using TekCharge MP1580...............4 Charging a Device Using an Adapter ...........5 Charging a Device Using Your Device USB Cable ....... 6 Charging Batteries ................ -
Page 3: Overview
These same adapters also may work with your eBooks, MP3 players, PDAs, portable media players and other small devices. If the extra adapter you need isn’t in the package, just go to www.tekkeon.com or call us at 1-888-787-5888 or 1-949-788-9228 to order more adapters for a nominal fee. -

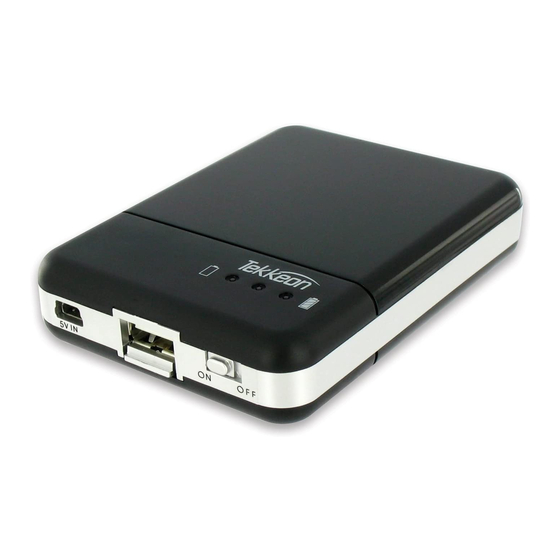

Page 4: Getting To Know Tekcharge Mp1580
Getting to Know TekCharge MP1580 Mini USB Port (5V IN) Capacity Indicators For connection to USB Show status of batteries port on a computer (from empty to full). or power adapter to charge AA batteries. USB Port For connection to Power Switch the portable device. -
Page 5: Installing Batteries
Installing Batteries TekCharge MP1580 requires two or four rechargeable or alkaline AA batteries, which are housed on the bottom side of the unit. As TekCharge MP1580 doubles as a battery charger, rechargeable batteries can be recharged in the unit when Fig A connected to a USB port on a computer or power adapter. -
Page 6: Charging A Device Using An Adapter
NOTE: If neither of the included adapters fits snugly into your portable device power jack, please go to our web site at www.tekkeon.com/tcadapters to determine which adapter plug you need for your device. You can obtain most adapters through the web site, or by contacting Tekkeon by phone at: 1-888-787-5888 or 1-949-788-9228. -
Page 7: Charging A Device Using Your Device Usb Cable
1. With two or four rechargeable AA batteries installed in TekCharge, plug the included mini USB adapter tip into the input/output cord. 2. Plug the mini USB tip into the mini USB port (5V IN). Charging batteries using the Tekkeon USB Power Adapter. MP1580... - Page 8 3. Plug the USB plug on the opposite end of the input/output cord into a USB port on a computer or a USB power adapter (such as Tekkeon’s myCharger, MP1650). The charging lamp will light as follows to indicate the battery status:...
-
Page 9: Troubleshooting
Troubleshooting If TekCharge MP1580 does not power your portable device or charge the device battery, take these steps: 1. Check the battery status to ensure that the AA batteries are good, or that the rechargeable batteries are charged. 2. Check that the input/output cord is connected to both TekCharge and the portable device, and that the adapter plug fits snugly into the power jack on your portable device. -
Page 10: Limited Warranty
This warranty is limited to replacement only and shall not cover any other damages. Any product returned to Tekkeon, Inc. with no fault found will be returned to the owner at the owner’s expense. -
Page 11: Customer Support
Customer Support Customer support for TekCharge is available at: Tekkeon, Inc. c/o TekCharge MP1580 30 Mauchly, Suite A Irvine, CA 92618 888-787-5888 / 949-788-9228 www.tekkeon.com Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds. MP1580... - Page 12 Follow us on Twitter: http://www.twitter.com/tekkeon www.tekkeon.com © 2011 Tekkeon, Inc. All Rights Reserved. TekCharge is a trademark of Tekkeon, Inc. Specifications are subject to change without notice. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.
