Summary of Contents for StarTech.com CTK400LAN

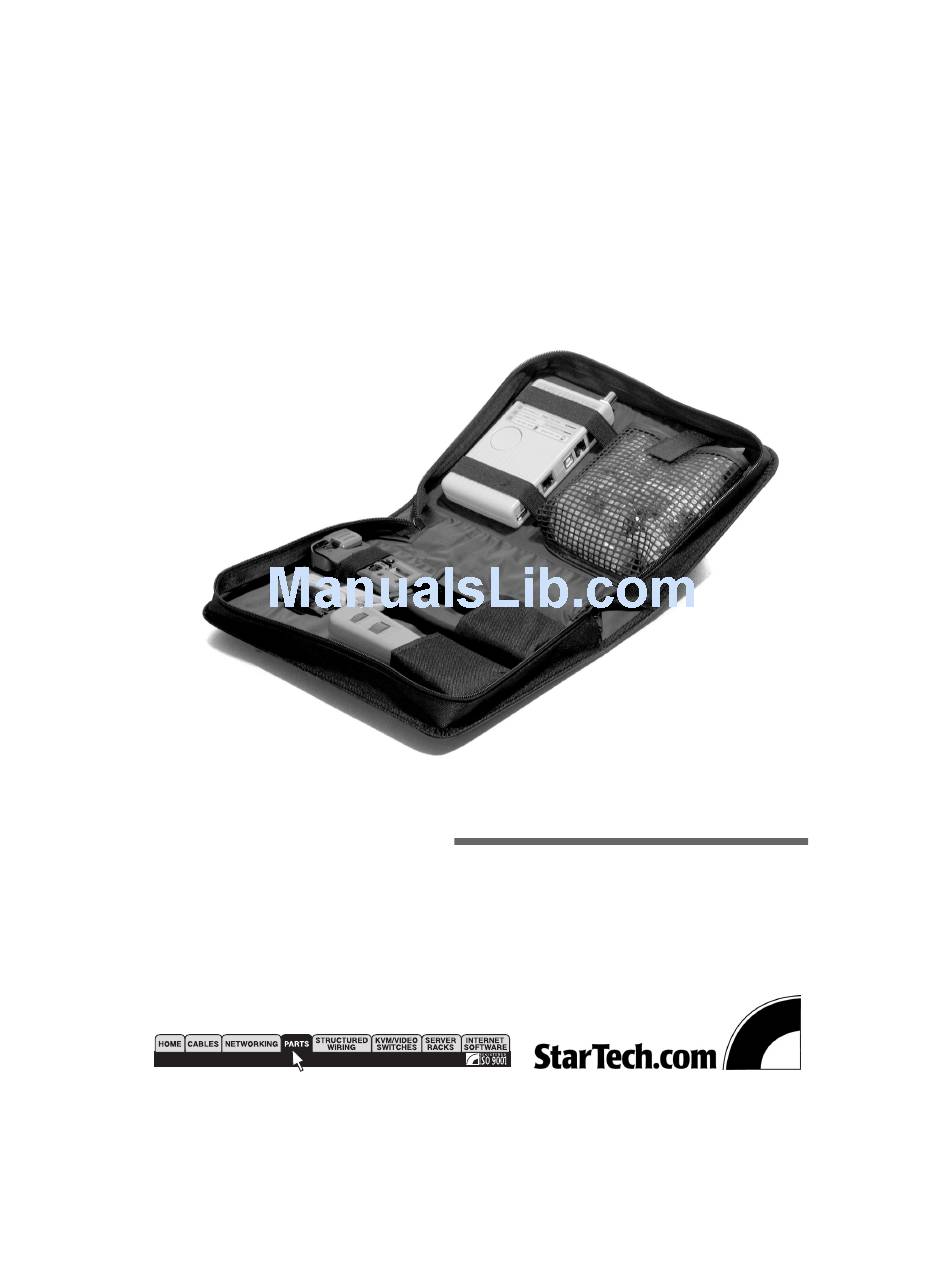

- Page 1 PC Repair Tools Professional Network Installer Tool Kit Installation Manual CTK400LAN...
-
Page 2: Getting Started
StarTech.com REMOTETEST tester). Getting Started Unpacking the CTK400LAN This package should contain: 1 x Remote Cable Tester (in own carrying case, same as StarTech.com’s LANTESTPRO) 1 x Combo Crimper (same as StarTech.com’s RJ4511TOOL) 1 x Punch Down Tool 1 x Stripping Tool... -
Page 3: Testing Connectivity
5. Insert the RJ45/RJ11 plug into the crimping tool as far as possible. There are two modules: a 6-way one for RJ11 connectors (used on phone jacks) and an 8-way one for RJ45 connectors used on computer jacks. Close the tool as firmly as you can to crimp the plug into the cable. - Page 4 MAN: A metropolitan area network (MAN) is larger than a LAN. It normally covers a city-sized area and reaches a size several kilometers. WAN: A wide area network (WAN) includes all networks. A WAN interconnects LASs that may be located in different countries. Appendix B Copper Pairs 1.
- Page 5 Wiring Testers Remote Cable Tester for RJ45 RJ11 and BNC Installation Manual REMOTETEST...
-
Page 6: Specifications
Overview The StarTech.com REMOTETEST cable tester is a palm-sized unit with four kinds of connectors: RJ45, RJ11, USB and BNC, for the testing of today’s most popular media. This unit can be used to verify the condition of cables, both before and after their installation. - Page 7 To test the cables already installed (RJ45, RJ11, USB and BNC): 1. Connect one end of the cable to the master’s proper connector. 2. Separate the remote module, then connect it to the cable’s remote point. 3. Press the test button. 4.
- Page 8 Connected Test When LEDs for Connected, S, and 1...8 LED are on and the tester beeps three times, it means the shielding and indicated wires are pin-to-pin connected between cable’s two ends. For instance, if a standard Ethernet 10BaseT unshielded twisted-paired cable (UTP) are tested, the LEDs for Connected, Wire 1, 2, 3 and 6 will turn on.
- Page 9 Appendix A - LED Indicators The Remote Cable Tester has a total of 14 LEDs, 9 horizontal indicating each individual wire inside a cable, and 5 vertical displaying a cable connection status. You can read the result from the combination of lit horizontal and vertical LEDs. •...
