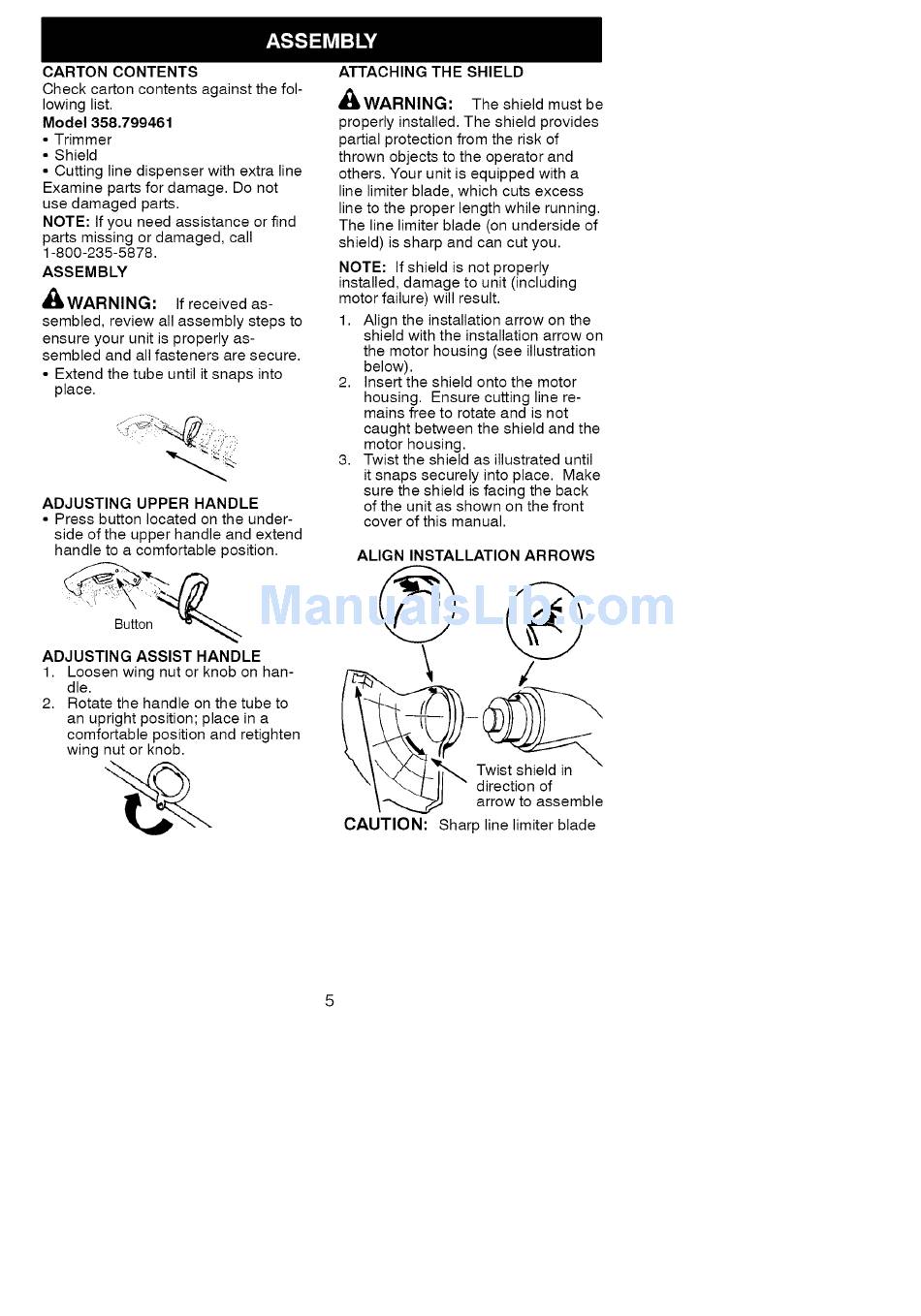

Craftsman 358.799461 Operator's Manual page 5

CARTON CONTENTS
Check carton contents against the fol-
lowing list.
Model 358.799461
• Trimmer
• Shield
• Cutting line dispenser with extra line
Examine parts for damage. Do not
use damaged parts.
NOTE: If you need assistance or find
parts missing or damaged, call
1-800-235-5878.
ASSEMBLY
'_WARNING: If received as-
sembled, review all assembly steps to
ensure your unit is properly as-
sembled and all fasteners are secure.
• Extend the tube until it snaps into
place.
ADJUSTING UPPER HANDLE
• Press button located on the under-
side of the upper handle and extend
handle to a comfortable position.
Button _
ADJUSTING ASSIST HANDLE
1. Loosen wing nut or knob on han-
dle.
2. Rotate the handle on the tube to
an upright position; place in a
comfortable position and retighten
wing nut or knob.
ATTACHING THE SHIELD
dBbWARNING: The shield must be
properly installed. The shield provides
partial protection from the risk of
thrown objects to the operator and
others. Your unit is equipped with a
line limiter blade, which cuts excess
line to the proper length while running.
The line limiter blade (on underside of
shield) is sharp and can cut you.
NOTE: If shield is not properly
installed, damage to unit (including
motor failure) will result.
1. Align the installation arrow on the
shield with the installation arrow on
the motor housing (see illustration
below).
2. Insert the shield onto the motor
housing. Ensure cutting line re-
mains free to rotate and is not
caught between the shield and the
motor housing.
3. Twist the shield as illustrated until
it snaps securely into place. Make
sure the shield is facing the back
of the unit as shown on the front
cover of this manual.
ALIGN INSTALLATION ARROWS
CAUTION: Sharp line limiter blade
