Line 230 Volts
Single Phase
A1
1-1_1 g-k2
5-1_3 lgNO_
J
2-T]
4-T2
6-Tg
14NO_
Set Thermal
Overload At
18 Amps
4-T2
I - °
To Motor

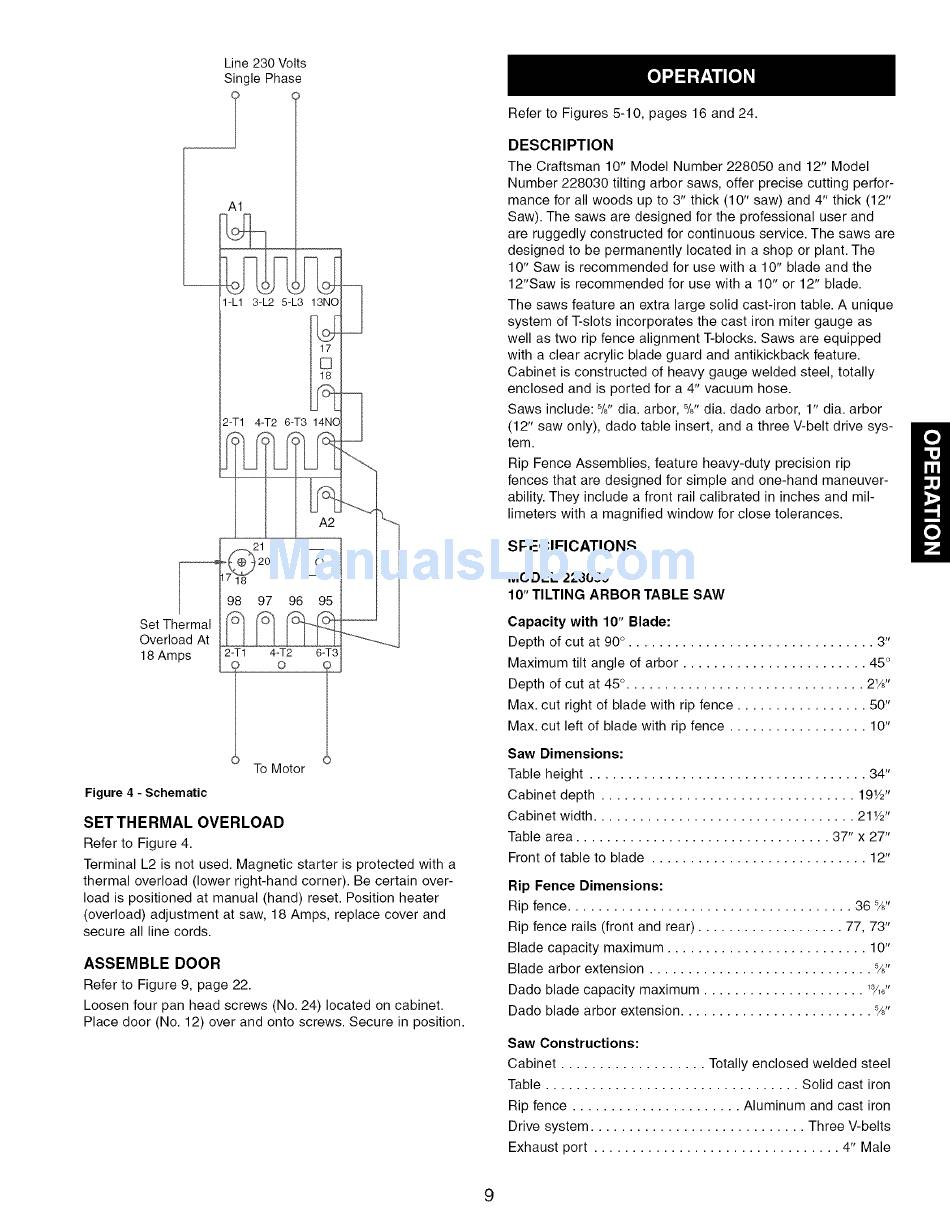

Figure 4 - Schematic
SETTHERMAL
OVERLOAD
Refer to Figure 4.
Terminal L2 is not used. Magnetic starter is protected with a
thermal overload (lower right-hand corner). Be certain over-
load is positioned at manual (hand) reset. Position heater
(overload) adjustment at saw, 18 Amps, replace cover and
secure all line cords.
ASSEMBLE
DOOR
Refer to Figure g, page 22.
Loosen four pan head screws (No. 24) located on cabinet.
Place door (No. 12) over and onto screws. Secure in position.
Refer to Figures 5-10, pages 16 and 24.
DESCRIPTION
The Craftsman 10" Model Number 228050 and 12" Model
Number 228030 tilting arbor saws, offer precise cutting perfor-
mance for all woods up to 3" thick (10" saw) and 4" thick (12"
Saw). The saws are designed for the professional user and
are ruggedly constructed for continuous service. The saws are
designed to be permanently
located in a shop or plant. The
10" Saw is recommended
for use with a 10" blade and the
12"Saw is recommended
for use with a 10" or 12" blade.
The saws feature an extra large solid cast-iron table. A unique
system of T-slots incorporates the cast iron miter gauge as
well as two rip fence alignment T-blocks. Saws are equipped
with a clear acrylic blade guard and antikickback feature.
Cabinet is constructed of heavy gauge welded steel, totally
enclosed and is ported for a 4" vacuum hose.
Saws include: 5/8"dia. arbor, %" dia. dado arbor, 1" dia. arbor
(12" saw only), dado table insert, and a three V-belt drive sys-
tem.
Rip Fence Assemblies, feature heavy-duty precision rip
fences that are designed for simple and one-hand maneuver-
ability. They include a front rail calibrated in inches and mil-
limeters with a magnified window for close tolerances.
SPECIFICATIONS
MODEL 228050
10" TILTING ARBOR TABLE SAW
Capacity with 10" Blade:
Depth of cut at 90 ° . ...............................
3"
Maximum tilt angle of arbor ........................
45 °
Depth of cut at 45 °. ..............................
2W'
Max. cut right of blade with rip fence .................
50"
Max. cut left of blade with rip fence ..................
10"
Saw Dimensions:
Table height ....................................
34"
Cabinet depth .................................
19W'
Cabinet width ..................................
21W'
Table area .................................
37" x 27"
Front of table to blade ............................
12"
Rip Fence Dimensions:
Rip fence .....................................
36 %"
Rip fence rails (front and rear) ...................
77, 73"
Blade capacity maximum ..........................
10"
Blade arbor extension .............................
%"
Dade blade capacity maximum .....................
'Y,_"
Dade blade arbor extension .........................
%"
Saw Constructions:
Cabinet ...................
Totally enclosed welded steel
Table .................................
Solid cast iron
Rip fence ......................
Aluminum and cast iron
Drive system ............................
Three V-belts
Exhaust port ................................
4" Male
