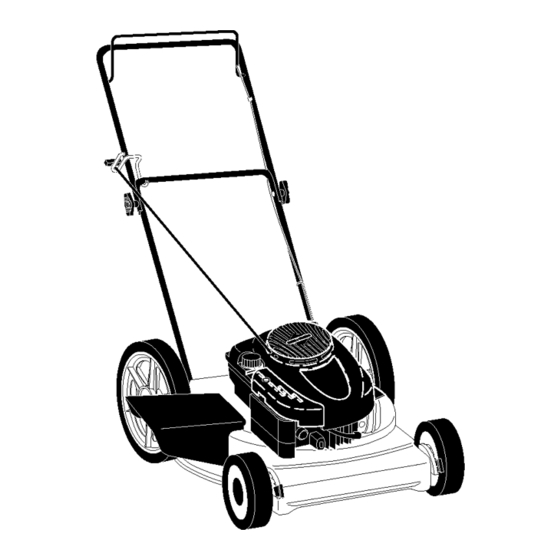

Rotary lawn mower 6.5 horsepower 22" side discharge
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

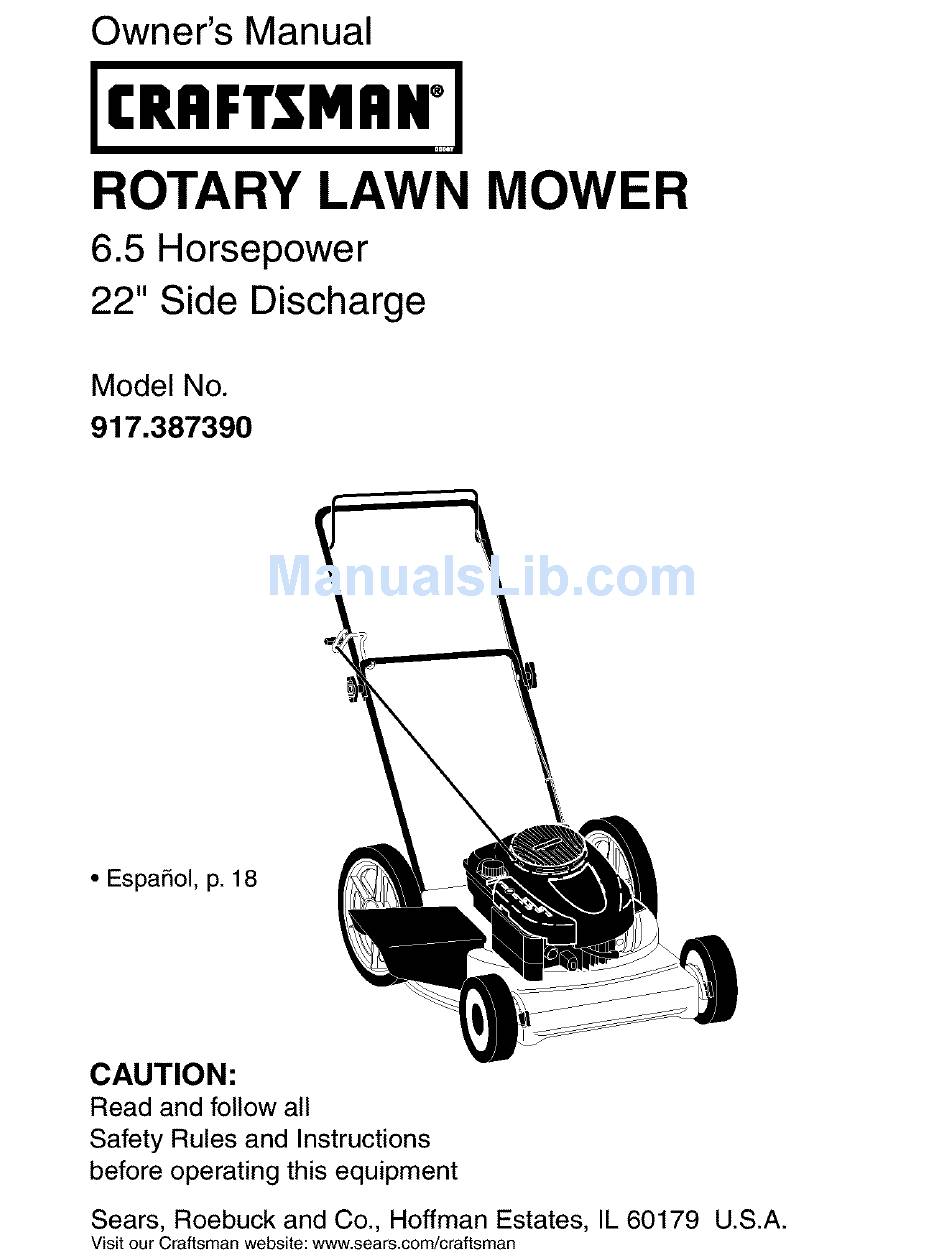

Owner's Manual
IC..FTSMnWl
ROTARY LAWN MOWER
6.5 Horsepower
22" Side Discharge
Model No.
917.387390
• EspaSol, p. 18
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.387390 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftsman 917.387390

Summary of Contents for Craftsman 917.387390

  • Page 1 ROTARY LAWN MOWER 6.5 Horsepower 22" Side Discharge Model No. 917.387390 • EspaSol, p. 18 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website: www.sears.com/craftsman...
  • Page 2 Warranty service is available by returning the Craftsman power mower to the nearest Sears Parts & Repair Center in the United States. This warranty applies only while this product is used in the United States.
  • Page 3 I. GENERAL OPERATION II. SLOPE OPERATION • Read, understand, and follow all Slopes are a major factor related to slip instructions on the machine and in the and fall accidents which can result in manual(s) before starting. Be thoroughly severe injury. All slopes require extra cau- familiar with the controls and the proper tion.
  • Page 4 Record both serial number and date of purchase in space provided above. Repair Protection Agreements Congratulations on making a smart pur- Fast help by phone - phone support chase. Your new Craftsman® product is from a Sears technician on products designed and manufactured for years of requiring in-home repair, plus conve- dependable operation.
  • Page 5 These accessories were available when this lawn mower was produced. They are not shipped with your mower. They are also available at most Sears retail outlets and service centers. Some of these accessories may not apply to your lawn mower. LAWN MOWER PERFORMANCE CLIPPING...
  • Page 6 Read these instructions and this manual in 1. Raise handles until lower handle sec- its entirety before you attempt to assemble tion locks into place in mowing position. or operate your new lawn mower. 2. Remove protective padding, raise up- IMPORTANT: This lawn mower is shipped per handle section into place on lower WITHOUT OIL OR GASOLINE in the engine.
  • Page 7 KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your lawn mower or in literature supplied with the product.
  • Page 8 TO CONVERT MOWER The operationof any lawn mowercan result in foreign Your lawn mower is shipped ready to be objectsthrown into the used as a mulcher. To convert to bagging eyes, which can result in or discharging: severeeye damage.Always • Lift discharge guard and remove wearsafety glasses or eye shields while mulcher plate.
  • Page 9 BEFORE STARTING ENGINE ADD OIL oil cap Your lawnmower is shipped without oil in the engine. For type and grade of oil to use, see "ENGINE" in the Maintenance section of this manual. 4[_ CAUTION: DO NOT overfill engine with oil, or it will smoke heavily from the muffler on startup.
  • Page 10 MULCHING MOWING TIPS MOWING TIPS IMPORTANT: For best performance, _i_CAUTION: Do not use de-thatcher keep mower housing free of built-up blade attachments on your mower. Such grass and trash. See "CLEANING" in the attachments are hazardous, will damage Maintenance section of this manual. your mower and could void your warranty.
  • Page 11 MAINTENANCE SCHEDULE /_:t,_°_o_y AS YOU COMPLETE Lubrication CheckTires Check DriveWheels (Power-Propelled Mowers) Check for Loose Fasteners Clean/Inspect Grass Catcher (If Equipped) Clean Lawn Mower RE Clean Under Drive Cover (Power-Propelled Mowers) Check drive belt/pulleys (Power-Propelled Mowers) Check/Sharpen/Replace Blade Clean Battery/Recharge IElectdc Start MowersI Check Engine Oil Level Change Engine Oil...
  • Page 12 LAWN MOWER Blade adapter Crankshaft Always observe safety rules when per- Key _ keyway forming any maintenance. Blade TIRES • Keep tires free of gasoline, oil, or insect control chemicals which can harm rub- ber. • Avoid stumps, stones, deep ruts, sharp objects and other hazards that may Blade shaft...
  • Page 13 NOTE: Althoughmulti-viscosityoils (5W30, TO CLEAN AIR FILTER 10W30etc.)improvestartingincoldweather, 1. Loosen screw and tilt cover to remove. these multi-viscosity oils will result in in- 2. Carefully remove cartridge. creased oil consumptionwhen used above 3. Clean by gently tapping on a flat sur- 32°E Checkyour engineoil level more fre- face.
  • Page 14 _,WARNING: To avoid serious injury, before SQUEEZE performing any service or adjustments: TO ADJUST 1. Release control bar and stop engine. 2. Make sure the blade and all moving Lower handle i parts have completely stopped. 3. Disconnect spark plug wire from spark plug and place wire where it cannot come into contact with the spark plug.
  • Page 15 Immediately prepare your lawn mower for SQUEEZE storage at the end of the season or if the TO FOLD unit will not be used for 30 days or more. Low( LAWN MOWER When lawn mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc.
  • Page 16 IMPORTANT: Never cover mower while OTHER engine and exhaust areas are still warm. • Do not store gasoline from one season to another. _,CAUTION: Never store the lawn mower • Replace your gasoline can if your can with gasoline in the tank inside a building starts to rust.
  • Page 17 TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Service Center. PROBLEM CAUSE CORRECTION Loss of power 1. Rear of mower housing or 1. Raise cutting height. blade dragging in grass. 2. Cutting too much grass. 2. Raise cutting height. 3.
  • Page 18 Contratapa GARANTiA LIMITADA DE DOS AI_IOS PARA LA SEGADORA A MOTOR CRAFTSMAN Per dos (2) aSos, a partir de la fecha de compra, cuando esta Segadora Craftsman se mantenga, lubrique y afine segSn las instrucciones para la operaci6n y el mantenimiento en el manual del dueSo, Sears repararA gratis todo defecto en el material y la mane de obra.
  • Page 19 HACER: I. OPERAClON • Antes de empezar, debe familiarizarse comple- • Puede recortar a trav6s de la superficie de tamente con los controles y el uso correcto de la cuesta, nunca hacia ardba y hacia abajo. la maquina. Para esto, debe leer y comprender Proceda con extrema precauci6n cuando todas las instrucciones que aparecen en la ma- cambie de direcci6n en las cuestas.
  • Page 20 • Ayuda rapida por telefono - soporte tele- nuevo producto Craftsman® estA diseSado f6nico per parte de un t6cnico Sears sobre y fabricado para funcionar de modo fiable por productos que requieren un arreglo en casa, muchos aSos.
  • Page 21 Estos accesorios estaban disponibles cuando se produjo la segadora. No son facilitados junto al cortacesped. Tambi6n est&n disponibles en la mayorfa de las tiendas de Sears y en los centros de servicio. Algunos de estos accesorios tal vez no se apliquen a su segadora. RENDIMIENTO DE LA SEGADORA DE RECORTES...
  • Page 22 Lea estas instrucciones y este manual comple- 1. Levante los mangos hasta que la secci6n tamente antes de tratar de montar u operar su del mango inferior se asegure en su lugar, segadora nueva. en la posici6n para segar. Remueva la curia protectora, levante la sec- IMPORTANTE: Este cortac_sped viene SIN ACEITE O GASOLINA en el motor.
  • Page 23 FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURIDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicaci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser sobre su segadora o en la literatura proporcionada con el producto.
  • Page 24 PARA CONVERTIR LA SEGADORA La operaci6n de cualquier Su segadora es enviada para usarse como segadora puede hacer que acolchadora. Para convertida a una operaci6n satten objetos extrafios dentro de de ensacado o de descarga: sus ojos, Io que puede producir •...
  • Page 25 ANTES DE HACER ARRANCAR MOTOR deposi_ AGREGUE ACEITE Su segadora fue enviada sin aceite en el motor. Para el tipo y el grado del aceite a utilizar, vea el "MOTOR" en la secci6n del Mantenimiento este manual. rellenador _PRECAUCI(_N: NO sobrellene el motor con de gasolina aceite, o fumar&...
  • Page 26 CONSEJOS PARA SEGAR Y ACOLCHAR _ONSEJOS PARA SEGAR RECAUCI(_N: No utilizar dispositivos anti- IMPORTANTE: Para obtener el mejor paja de la hoja en la segadora ya que estos rendimiento mantenga la caja de la segadora accesorios son peligrosos, pueden dafiar su sin acumulacion de cesped y basura.
  • Page 27 PROQRAMA DE MANTENIMIENTO _-_'_ Lubricaci6n Controlar losneum_.ticos ¥1 Controlar lasruedas motrices Revisar s ihaysujetadores sueltos (segadoras con poder propulsor) Limpiar/inspecoionar el recogedor de c_sped (siviene equipado) Limpiar l asegadora delacubierta d e latrans- misidn (segadoras conpoder p ropulsor) Limpiar debajo (segadoras sadas con poder propulsor)
  • Page 28 SEGADORA / ciguenal Siempre observe las reglas de seguridad cu- Rant ando haga el mantenimiento. Cuchilla LLANTAS • Mantenga las llantas sin gasolina, aceite o substancias qu[micas para control de insec- tos que pueden dai_ar la goma. • Evite los tocones, las piedras, las gdetas pro- fundas, los objetos afilados y otros peligros Perno Arandela...
  • Page 29 PARA LIMPIAR EL FILTRO DE AIRE AVISO: A pesar de que los aceites de multi- viscosidad (5W30, 10W30, etc.) mejoran el 1. Suelte el tornillo e incline la cubierta para arranque en clima fdo, estos aceites de mul- removerlo. tiviscosidad van ha aumentar el consume de Cuidadosamente, remueva el cartucho.
  • Page 30 _._,DVERTENCIA: Para evitar lesi6nes serias, APRIETE antes de dar calquier servico o de hacer ajustes: PARA AJUSTE Suelte la barra de control y pare el motor. Mango inferior i Asegt]rese que la cuchilla y que todas las partes movibles se hayan detenido comple- tamente.
  • Page 31 Inmediatamente prepare su segadora para el Barra de control que almacenamiento al final de cada temporada o si operador la unidad no se va a usar por 30 dias o mas. SEGADORA Cuando se va a guardar la segadora por cierto Mango perfodo de tiempo, Ifmpiela cuidadosamente, remueva toda la mugre, la grasa, las hojas, etc.
  • Page 32 CILINDRO • Cubra su unidad con un forro protector Remueva la bujia. adecuado que no retenga la humedad. No Vacfe una onza (29 mi) de aceite a trav_s use pl_,stico. El plAstico no puede respirar, Io del agujero de la bujfa en el cilindro. que permite la formaci6n de condensaci6n, Tire la manilla de arranque lentamente unas Io que producir#, ta oxidaci6n de su unidad.
  • Page 33 SOLUCION DE PROBLEMAS - Vea la secci6n apropiada en el manual amenos que estd dirigido a un centro de servico Sears. CORRECCI()N PROBLEMA CAUSA Falta de Eleve la attura de corte. 1. Cuchilla desgastada, doblada fuerza o suelta. Eleve la altura de corte. Altura de las ruedas dispareja.
  • Page 34 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.387390 "...
  • Page 35 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.387390 PART PART DESCRIPTION DESCRIPTION 188152 150406 O-Ring Hex HeadThread Rolling Screw 3/8-16 x 1 185349 Control Bar 85463 Danger Decal 186079 185360 Rope Guide / Anti-Fold Bracket Lawn Mower Housing (Includes Key Number 55)
  • Page 36 BRIGGS & STRATTON &CYCLE ENGINE MODEL NUMBER 123K02-0258-E1 I 1019 LABEL KI11 5251 I 635 _ 307_ 8684% 146_ 562_ 228_ 15 8...
  • Page 37 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 123K02-0258-E1 358 ENGINE GASKET SET 8428 s24 3© 443_ _188 977 CARBURETOR GASKET SET 633 O 633 O 276_ 121 CARBURETOR OVERHAUL KIT 276_ 127_ 130 95 6330 276_ lO4_ 276 _ 276_...
  • Page 38 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 123K02-0258-E1 S64_ 3_63 592_ 689 O 597_=_ 1036 EMISSIONS LABEL PART PART DESCRIPTION DESCRIPTION 691092 697322 Cylinder Assembly Screw (Engine Sump) 692315 399269 Kit-Bushing/Seal Flywheel 222698 299819 • Seal-Oil (Magneto Side) Key-Flywheel 697339 493279 Sump-Engine Piston Assembly (Standard)
  • Page 39 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 123K02-0258-E1 PART PART DESCRIPTION DESCRIPTION PawI-Ratchet 695759 Screw (Connecting Rod) 281505 262651 Valve-Exhaust 231082 Nut (Governor Control Lever) 262652 Valve-Intake 495264 Dipstick 691270 Spring-Valve (Intake) 692296 • Seal-Dipstick Tube 691270 Spring-Valve (Exhaust) 495265 Tube-Dipstick Grommet 694086...
  • Page 40 Get it fixed, at your home or ours! Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
