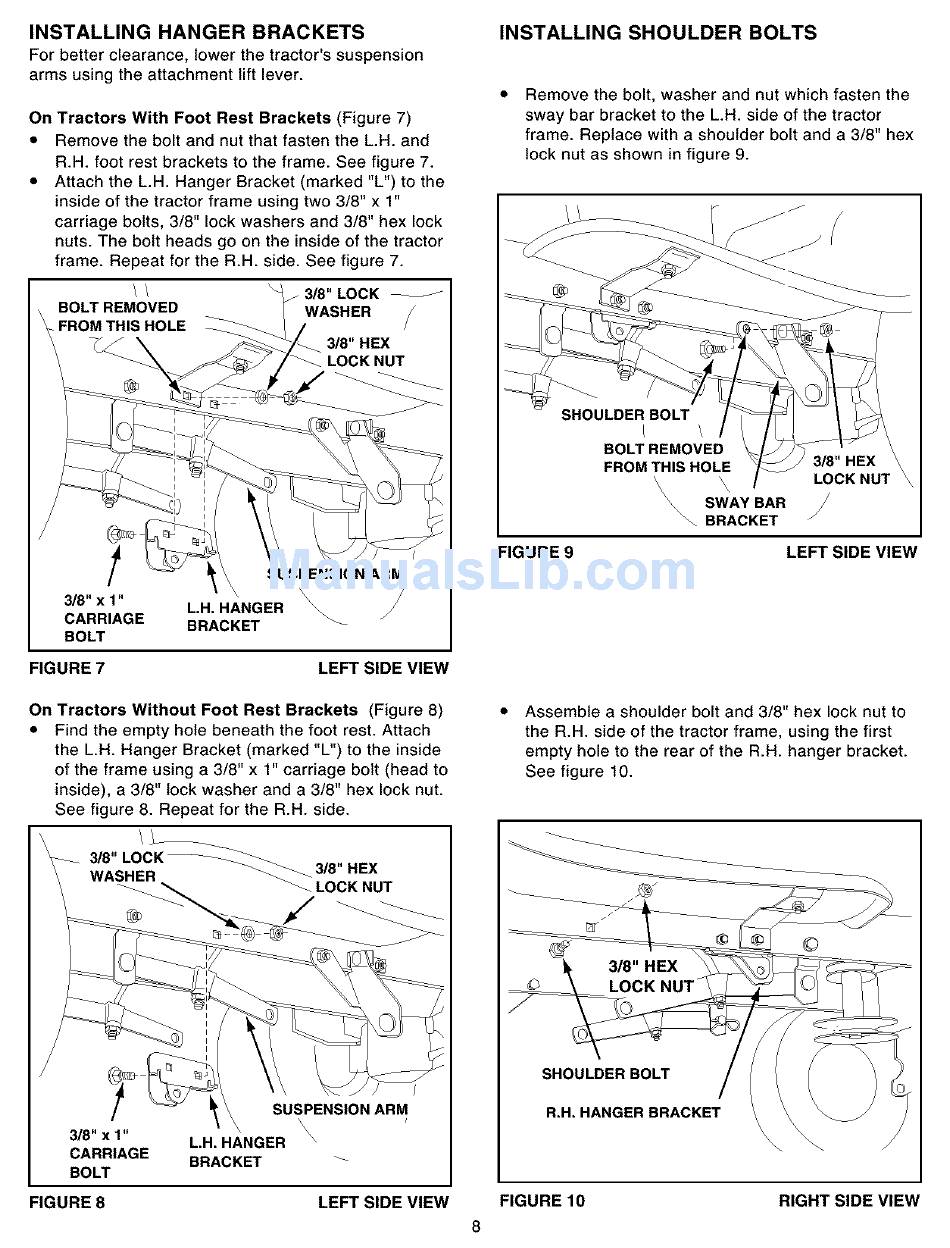

INSTALLING
HANGER
BRACKETS
For better clearance,
lower the tractor's suspension
arms using the attachment
lift lever.
On Tractors With Foot Rest Brackets (Figure 7)
•
Remove the bolt and nut that fasten the L.H. and
R.H. foot rest brackets to the frame. See figure 7.
•
Attach the L.H. Hanger Bracket (marked "L") to the
inside of the tractor frame using two 3/8" x 1"
carriage
bolts, 3/8" lock washers and 3/8" hex lock
nuts. The bolt heads go on the inside of the tractor
frame. Repeat for the R.H. side. See figure 7.
/ /
_ 3/8" LOCK
BOLT REMOVED
WASHER
FROM THIS HOLE
#J
3/8" HEX
-_
_
LOCK NUT
/
3/8" x 1"
CARRIAGE
BOLT
SUSPENSION ARM
L,H, HANGER
_
BRACKET
_
FIGURE 7
LEFT SIDE VIEW
On Tractors Without Foot Rest Brackets
(Figure 8)
•
Find the empty hole beneath the foot rest. Attach
the L.H. Hanger Bracket (marked "L") to the inside
of the frame using a 3/8" x 1" carriage bolt (head to
inside), a 3/8" lock washer and a 3/8" hex lock nut.
See figure 8. Repeat for the R.H. side.
3/8,, ,OCK
WASHER
3/8" HEX
LOCK NUT
SUSPENSION ARM
\
\
\
3/8" x 1"
L.H. HANGER
\
CARRIAGE
BRACKET
_-
BOLT
FIGURE 8
LEFT SIDE VIEW
INSTALLING
SHOULDER
BOLTS
Remove the bolt, washer and nut which fasten the
sway bar bracket to the L.H. side of the tractor
frame. Replace with a shoulder bolt and a 3/8" hex
lock nut as shown in figure 9.
SHOULDER BOLT
L
\
BOLT REMOVED
FROM THIS HOLE
3/8" HEX
'\
LOCK NUT
\
SWAY BAR
\\\\'-. BRACKET
/
FIGURE 9
LEFT SIDE VIEW
Assemble
a shoulder
bolt and 3/8" hex lock nut to
the R.H. side of the tractor frame, using the first
empty hole to the rear of the R.H. hanger bracket.
See figure 10.
©
SHOULDER BOLT
R.H. HANGER BRACKET
RIGHT SIDE VIEW
FIGURE 10
Page 8
