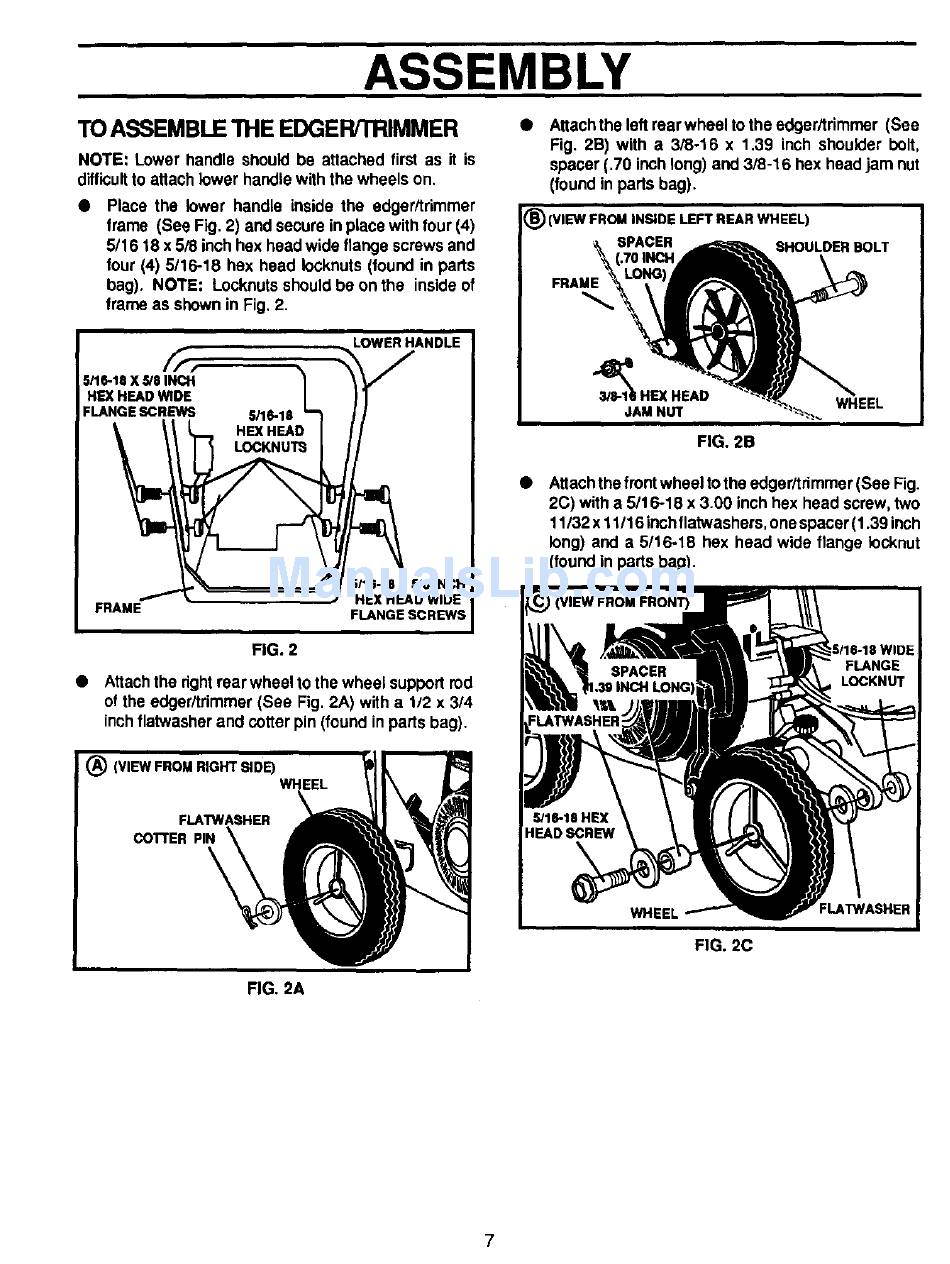

ASSEMBLY
TO ASSEMBLE "IHE EDGER/TRIMMER
NOTE: Lower handle should be attached first as it is
difficultto attach lower handle with the wheels on.
Place the lower handle inside the edger/trimmer
frame (See Fig. 2) and secure in place with four (4)
5/1618 x 5/8 inchhex head wide flange screws and
four (4) 5/16-18 hex head Iocknuts (found in parts
bag). NOTE: Locknutsshould be on the inside of
frame as shown in Fig. 2.
I LOWER HANDLE
,
_le-la x _aINCX 1 %V
HEX HEAD WIDE / I I
FLANGE SCREWS .5/16-18 _ J I
HEX HEAD
I .'% _" I 5118-18XS/81NCH
I / _, _/ HEX HEAD WIDE
I FRAME FLANGE SCREWS
FIG. 2
• Attach the dght rear wheel to the wheel suppod rod
of the edger/trimmer (See Fig. 2A) with a 1/2 x 3/4
inchllatwasher and cotter pin (found in parts bag).
• Attachthe left rearwheel to the edger/trimmer (See
Fig. 2B) with a 3/8-16 x 1.39 inch shoulder bolt,
spacer (.70 inchlong) and 3/8-16 hex head jam nut
(found in parts bag).
_) (VIEW FROM INSIDE LEFT REAR WHEEL)
SPACER SHOULDER BOLT
FRAME
_'_IjAI_IE_u_.H EAD WHEEL
FIG. 2B
• Attachthefrontwheel tothe edger/trimmer(See Fig.
2C) with a 5/1 6-18 x 3.00 inch hex head screw, two
11/32 x 11/16inch flatwashers,one spacer (1.39 inch
long) and a 5/16-18 hex head wide flange locknut
(found in parts bag).
I (VIEW FROM FRONT}
FIG. 2C
FIG. 2A
7
