Summary of Contents for First Alert DWB-740

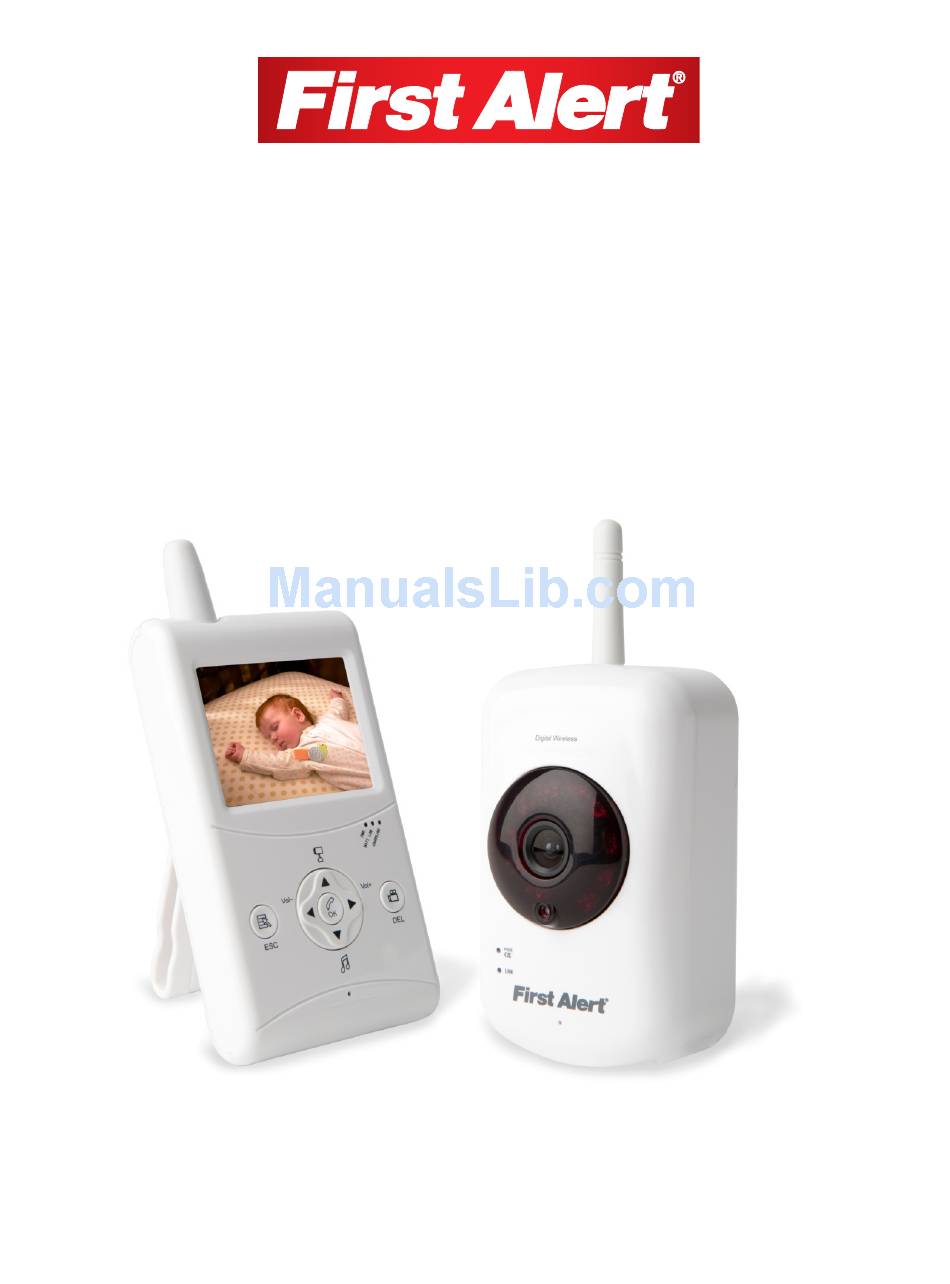

- Page 1 2.5”Color LCD Portable Wireless Family Monitor DWB-740 USER'S MANUAL...
- Page 2 ©2011 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc., 3901 Liberty Street Road, Aurora. IL 60504-8122. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package. BRK Brands, Inc. is a subsidiary of Jarden Corporation (NYSE: JAH). To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30 a.m.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s Safety ..........................4 Safety Precautions ......................4 FCC Compliance ....................... 4 Getting to Know Your DWB-740 Family Monitor ............5 Check Package Contents ....................5 Digital Wireless Camera .................... -
Page 4: Safety
First Alert / BRK Brands, Inc., could void the user’s authority to operate the equipment. We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Getting To Know Your Dwb-740 Family Monitor
Congratulations on purchasing your First Alert Family Monitor. First Alert has been helping your family stay safe for over 50 years. By having a First Alert Family Monitor, you are taking the first step in monitoring activities that may affect your family. -
Page 6: Digital Wireless Camera
Getting to Know Your DWB-740 Family Monitor Model DWB-740 User's Manual I G I T A L I R E L E S S A M E R A Camera Lens Night Vision IR LEDs - Allows you to see up to 16 ft. in complete darkness... -
Page 7: Digital Wireless Receiver
Getting to Know Your DWB-740 Family Monitor Model DWB-740 User's Manual IGITAL IRELESS ECEIVER 1 Power Indicator (PWR.) - Steady Green light when the receiver is charging 2 Low Battery Indicator (BATT.LOW) - Turns Red when the receiver battery is low... -
Page 8: Display Screen Icons
Getting to Know Your DWB-740 Family Monitor Model DWB-740 User's Manual ISPLAY CREEN CONS... -
Page 9: Setting Up Your Dwb-740 Family Monitor
Setting Up Your DWB-740 Family Monitor Model DWB-740 User's Manual S e t t i n g U p Y o u r D W B - 7 4 0 F a m i l y M o n i t o r... -
Page 10: Operating Menus
O p e r a t i n g M e n u s This chapter provides information about the menu screens. The screens are used to control the various functions of the Family Monitor. The user selects options from a series of menus and executes the actions by using the keypad on the receiver. -
Page 11: System Setup
Operating Menus Model DWB-740 User's Manual YSTEM ETUP Access the System Setup menu from the Main Menu. Use this menu to adjust system time and factory default. ETTING Press to enter time setting. Use to change setting. Press again to save. -
Page 12: Camera Setup
Operating Menus Model DWB-740 User's Manual AMERA ETUP Access the Camera Setup menu from the Main Menu. Use this menu to turn the camera on/off and adjust scan time. AMERA to select the camera (selected camera highlighted in black.) Press to change ON/OFF status. -
Page 13: Pairing
Operating Menus Model DWB-740 User's Manual AIRING Access the Pairing menu from the Main Menu. Use this menu to pair each receiver with camera. AIRING AMERA 1. Use to select a channel. 2. Press to start pairing individual camera and receiver. The system will countdown from 60 seconds. -
Page 14: Vox Setting
Operating Menus Model DWB-740 User's Manual ETTING VOX Setting allows voice activated recording. VOX Sensitivity Allows user to set the level of sensitivity for voice activated recording. Level 3 is the highest sensitivity level. This system setting will be set and applies to all cameras while recording. -
Page 15: Brightness
Operating Menus Model DWB-740 User's Manual Recording files are set for 30 seconds long. If event exceeds 30 seconds it will be saved as a new event. CAUTION! Some federal, state, and local laws prohibit certain surveillance activities and/or the use or distribution of the information obtained from such activities. -
Page 16: Playback
Operating Menus Model DWB-740 User's Manual LAYBACK Access the Playback menu from the Main Menu. Use this menu to select a recording file to playback. To Select a recording: Recordings are filed first by Year/Month/Day using YR MO DY. Recordings are then selected by Hour/Minute/Second_ Camera number using HRMNSD_#. -
Page 17: Sd Card Format
Operating Menus Model DWB-740 User's Manual SD Card Format Access the SD Card Format menu from the Main Menu. Use this menu to format SD card. For first time use, it is strongly recommended to format the SD card. Reformatting an SD Card will erase viewing the recording. -
Page 18: Additional Functions
Operating Menus Model DWB-740 User's Manual DDITIONAL UNCTIONS Push To Speak Operations: Push to speak allows the user to speak through the receiver back to the camera. Push to speak works from the receiver directly to one camera. Push to speak is activated by pressing and holding the center button while speaking into the receiver. -
Page 19: Camera Placement & Installation
Operating Menus Model DWB-740 User's Manual Camera Placement Note: Be sure to place camera and monitor no less than 3 feet away from your baby’s crib. Do not place camera where it can fall into the child’s crib. Do not place the camera near open windows, direct sunlight or heat sources. -
Page 20: Troubleshooting
T r o u b l e s h o o t i n g Problem Possible Causes Remedies System message No power supply to Check power adapter and power cable shows “No Signal” camera connection. If camera is running on battery alone, you may need to replace batteries. -
Page 21: Technical Information
T e c h n i c a l I n f o r m a t i o n ENERAL Receiver Screen 2.5” Color LCD Operating Power Operating Temperature 14°F - 122°F Indoor Outdoor Digital Wireless Dimensions Camera & Stand 2.52”... -
Page 22: Maintenance
Technical Information Model DWB-740 User's Manual TORAGE ANAGEMENT SD Card Capacity 640 x 480 (VGA) 320 x 240 (QVGA) 110 Minutes 165 Minutes 250 Minutes 350 Minutes 1070 Minutes 1450 Minutes 2170 Minutes 2960 Minutes 4340 Minutes 5920 Minutes AINTENANCE §... -
Page 23: Warranty
IMITED ARRANTY BRK Brands, Inc., (“BRK”) the maker of First Alert® brand products warrants that for a period of one year from the date of purchase (the “Warranty Period”), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any component of the product found to be defective during the Warranty Period. -
Page 24: Obtaining Service
Warranty Model DWB-740 User's Manual other software that may be or may become resident on the users system as a result of installing the software provided. This warranty is in lieu of other warranties, expressed or implied, and BRK neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale or service of the product.
