Appendix C
Pin Assignments
Aurorean Network Gateway-1100 User's Guide
DB-9
Pin 1 Pin 5
Pin 6 Pin 9

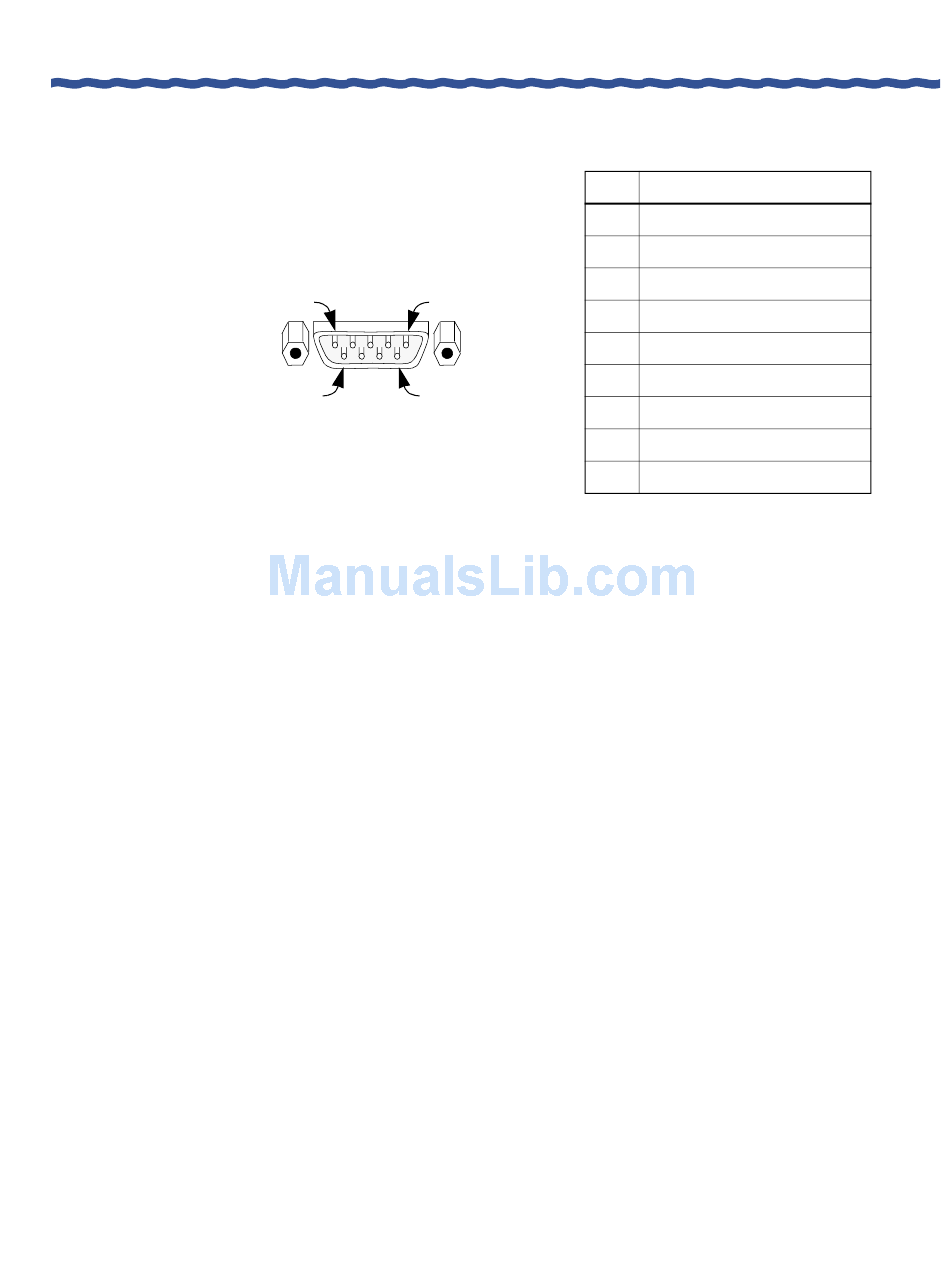

Figure 2 Serial Port Pin Assignments
Pin Signal
1 Carrier Detect (CD)
2 Receive Data (RX)
3 Transmit Data (TX)
4 Data Term Ready (DTR)
5 Ground (GND)
6 No Carrier (NC)
7 Request to Send (RTS)
8 Clear to Send (CTS)
9 No Carrier (NC)
