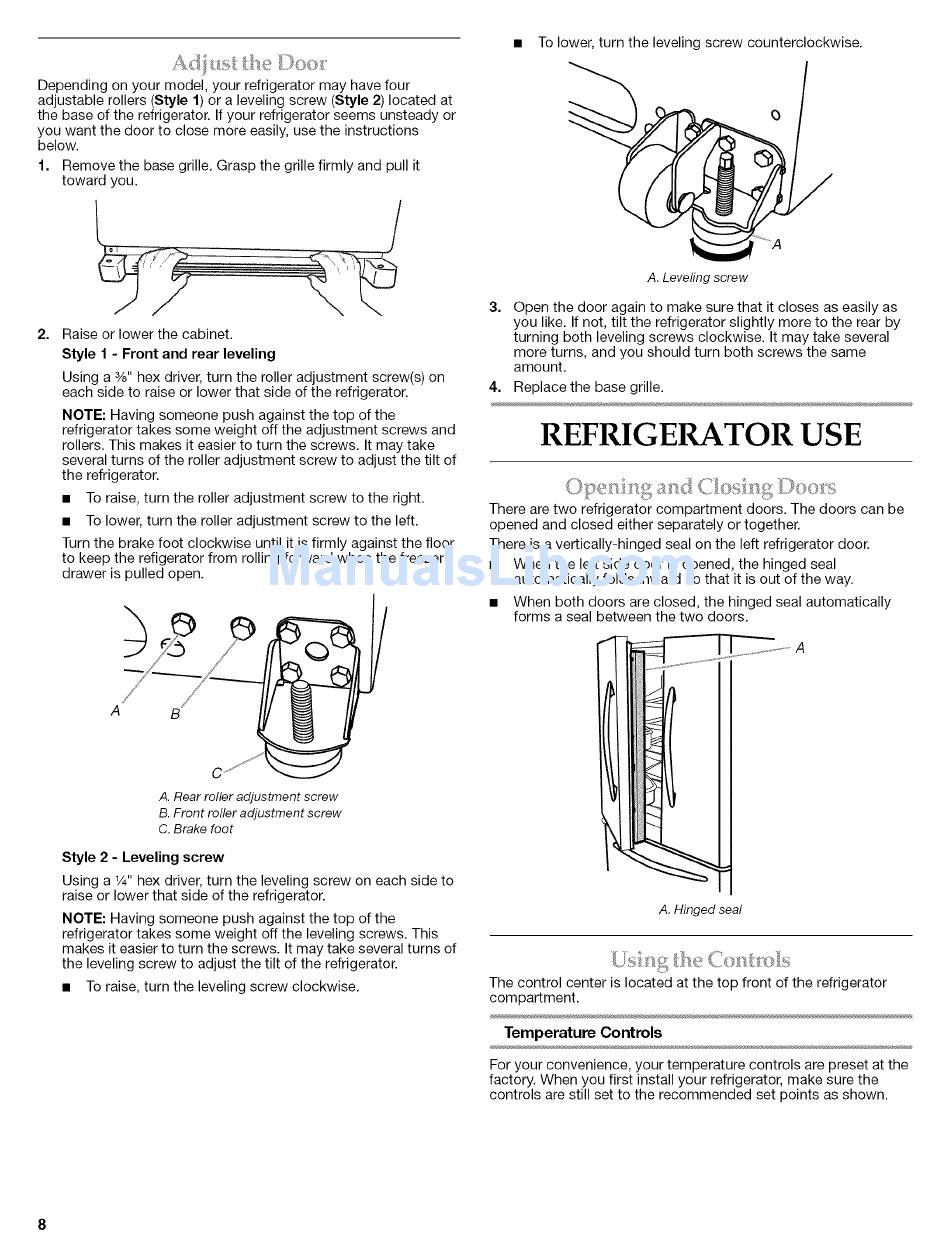

Depending on your model, your refrigerator may have four
adjustable rollers (Style 1) or a leveling screw (Style 2) located at
the base of the refrigerator. If your refrigerator seems unsteady or
you want the door to close more easily, use the instructions
below.
1. Remove the base grille. Grasp the grille firmly and pull it
toward you.
2.
Raise or lower the cabinet.
Style 1 - Front and rear leveling
Using a %" hex driver, turn the roller adjustment screw(s) on
each side to raise or lower that side of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the adjustment screws and
rollers. This makes it easier to turn the screws. It may take
several turns of the roller adjustment screw to adjust the tilt of
the refrigerator.
To raise, turn the roller adjustment screw to the right.
To lower, turn the roller adjustment screw to the left.
Turn the brake foot clockwise until it is firmly against the floor
to keep the refigerator from rolling forward when the freezer
drawer is pulled open.
/d/
/
A. Rear roller adjustment
screw
B. Front roller adjustment
screw
C. Brake foot
Style 2 - Leveling screw
Using a 1/4"hex driver, turn the leveling screw on each side to
raise or lower that side of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws. This
makes it easier to turn the screws. It may take several turns of
the leveling screw to adjust the tilt of the refrigerator.
To raise, turn the leveling screw clockwise.
To lower, turn the leveling screw counterclockwise.
A. Leveling screw
3. Open the door again to make sure that it closes as easily as
you like. If not, tilt the refrigerator slightly more to the rear by
turning both leveling screws clockwise. It may take several
more turns, and you should turn both screws the same
amount.
4. Replace the base grille.
REFRIGERATOR
USE
There are two refrigerator compartment
doors. The doors can be
opened and closed either separately or together.
There is a vertically-hinged
seal on the left refrigerator door.
When the left side door is opened, the hinged seal
automatically folds inward so that it is out of the way.
When both doors are closed, the hinged seal automatically
forms a seal between the two doors.
A. Hinged seal
The control center is located at the top front of the refrigerator
compartment.
Temperature
Controls
For your convenience, your temperature controls are preset at the
factory. When you first install your refrigerator, make sure the
controls are still set to the recommended
set points as shown.
