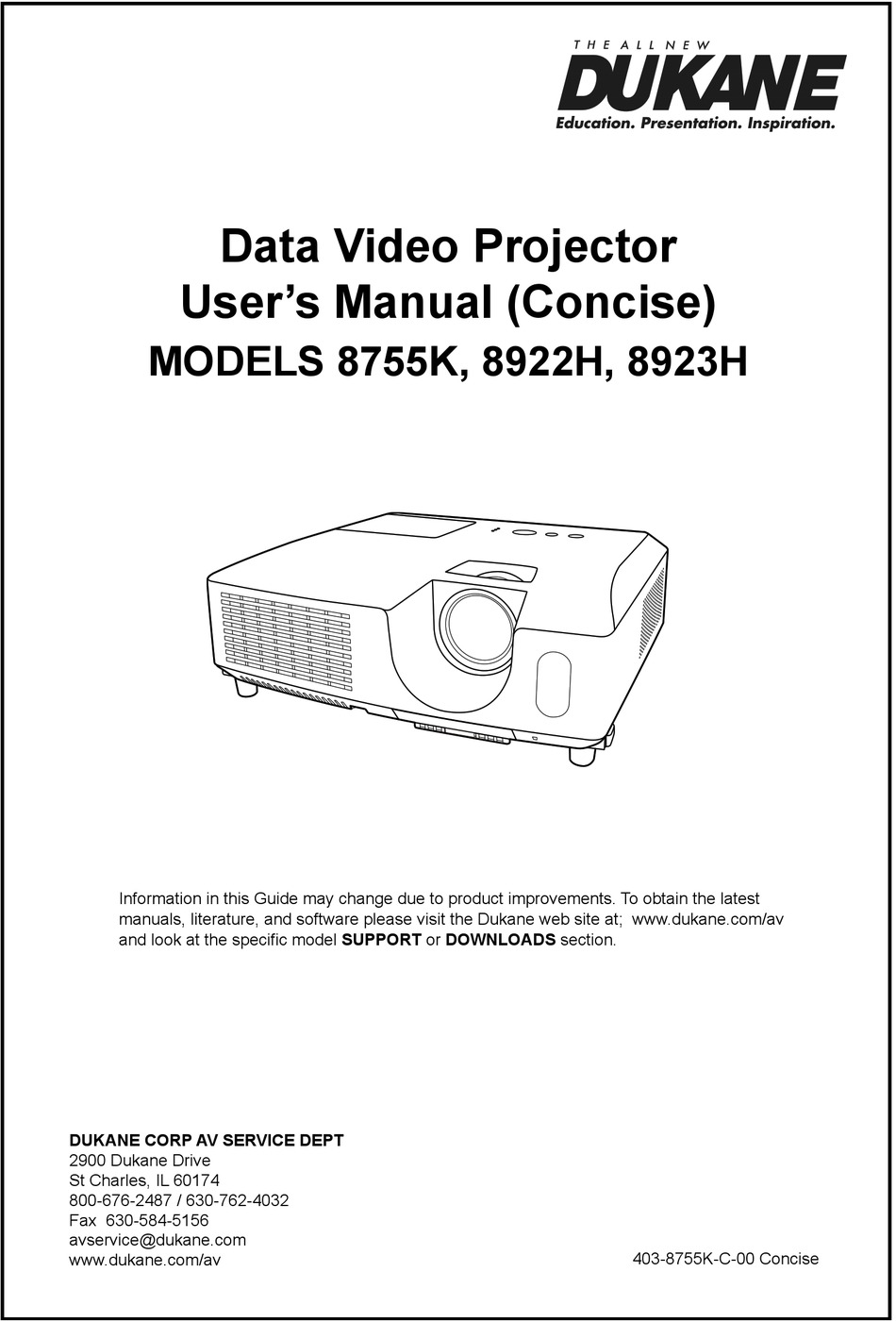

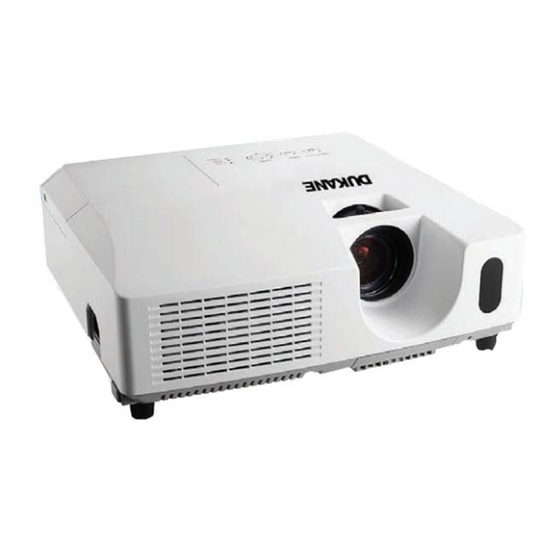

Data Video Projector
User's Manual (Concise)
MODELS 8755K, 8922H, 8923H
Information in this Guide may change due to product improvements. To obtain the latest
manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av
and look at the specific model SUPPORT or DOWNLOADS section.
403-8755K-C-00 Concise

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8755K and is the answer not in the manual?

Questions and answers

Related Manuals for Dukane 8755K

Summary of Contents for Dukane 8755K

  • Page 1 Information in this Guide may change due to product improvements. To obtain the latest Guide” first. After reading them, store them in a manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av and look at the specific model SUPPORT or DOWNLOADS section.

  • Page 2: Table Of Contents

    Projector C8755K, 8922H, 8923H User's Manual (concise) Thank you for purchasing this projector. Please read through this manual before using this product, in order to use safely and utilize well the product. WARNING ►Before using this product, be sure to read all manuals for this product.

  • Page 3: First Of All

    First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.

  • Page 4: Regulatory Notices

    This Class B digital apparatus complies with Canadian ICES-003. In the US, and other places where the FCC regulations are applicable Declaration of Conformity Trade name HITACHI / DUKANE Model Number C8755K, 8922H, 8923H Responsible Party Hitachi America, Ltd. Address 900 Hitachi way, Chula Vista, CA 91914-3556 U.S.A.

  • Page 5: About Waste Electrical And Electronic Equipment

    Regulatory notices (continued) About Waste Electrical and Electronic Equipment The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

  • Page 6: Preparations

    Preparations Loading batteries into the remote control Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 7: Arrangement

    Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024 x 768 Screen size (diagonal) Projection distance (±10%) Screen height (±10%) On a horizontal surface Suspended from the ceiling •...

  • Page 8: Connecting Your Devices

    Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.

  • Page 9: Connecting Power Supply

    Connecting power supply Put the connector of the power cord into the AC IN (AC inlet) of the projector. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

  • Page 10: Adjusting The Projector's Elevator

    Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector 14° horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 14 degrees.

  • Page 11: Displaying The Picture

    Displaying the picture Activate your signal source. Turn the signal source on, and make it send the signal to MY SOURCE/ COMPUTER VIDEO DOC.CAMERA the projector. ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE PAGE VOLUME VOLUME+ button Use the VOLUME + / VOLUME - buttons VOLUME- button DOWN to adjust the volume.

  • Page 12: Turning Off The Power

    Turning off the power STANDBY/ON button Press the STANDBY/ON button on the POWER indicator projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears. The projector lamp will go off, and the MY SOURCE/ VIDEO...

  • Page 13: Replacing The Lamp

    Replacing the lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
  • Page 14 Replacing the lamp (continued) HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 15: Cleaning And Replacing The Air Filter

    Cleaning and replacing the air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. The air filter has two kinds of filters inside. Replace the filters when they are damaged or too soiled. To prepare the new filters, make contact with your dealer and tell the following type number.

  • Page 16: Using The Cd Manual

    Using the CD manual The other manuals for this product are written into the included CD-ROM titled “User’s Manual (detailed)”. Before using the CD-ROM, please read the following to ensure the proper use. System requirements The system for using the CD-ROM requires the following. Windows OS:Microsoft Windows...

  • Page 17: Specifications

    Specifications Item Specification Product name Liquid crystal projector Liquid Crystal Panel 786,432 pixels (1024 horizontal x 768 vertical) 8755K, 190 W UHP Lamp 8922H, 8923H, 210 W UHP Speaker 8 W x2 (monaural) 8755K, AC 100-120 V/2.9 A, AC 220-240 V/1.6 A Power supply 8922H, 8923H, AC 100-120 V/3.3 A, AC 220-240 V/1.7 A...

  • Page 18: Troubleshooting - Warranty And After-Service

    Please check the following web address where you may find the latest information for this projector. www.dukane.com/av NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual.

This manual is also suitable for:

8922h8923h
