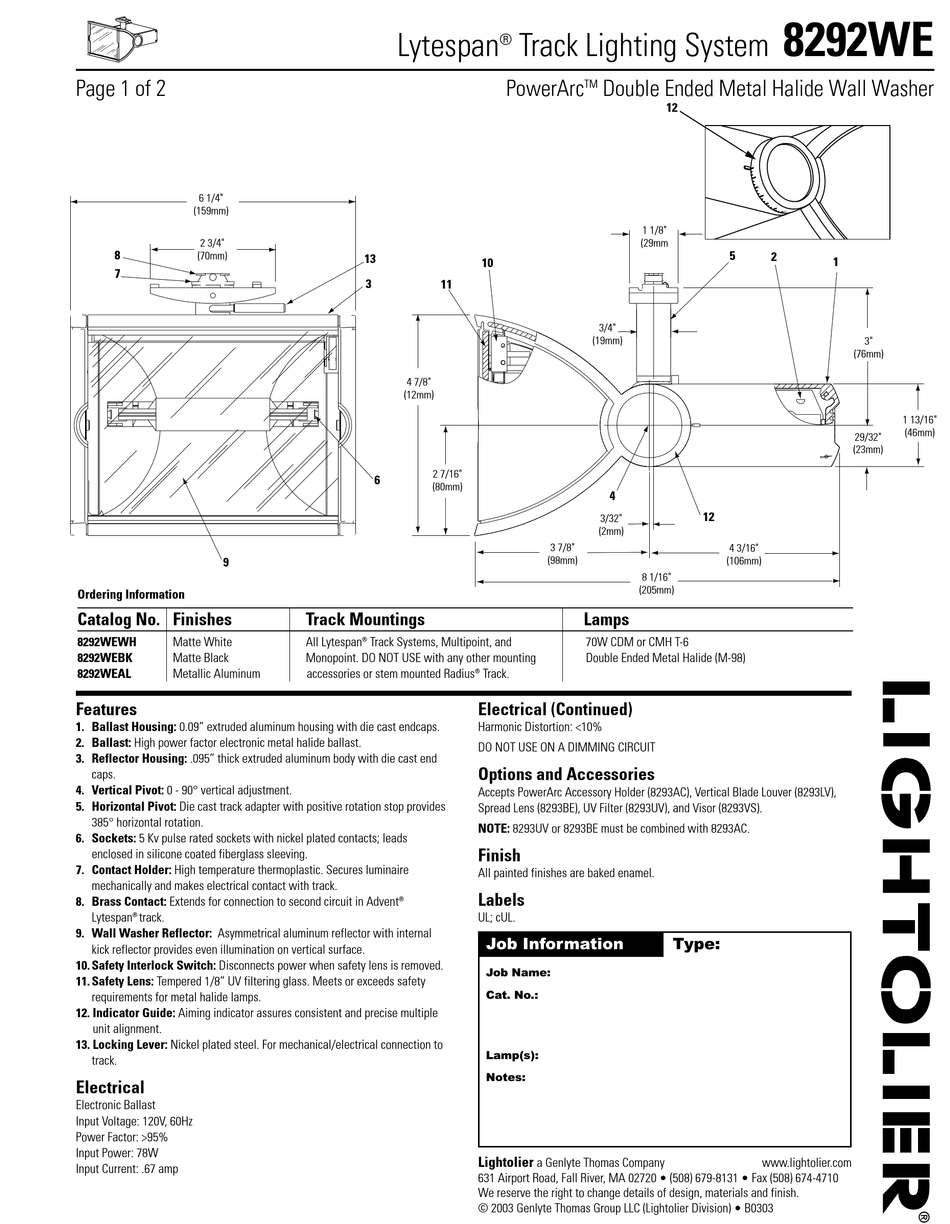

Lightolier Lytespan 8292WE Specification

Page 1 of 2
6 1/4"
(159mm)
2 3/4"
8
(70mm)
7
9

Ordering Information

Catalog No. Finishes
8292WEWH Matte White
8292WEBK Matte Black
8292WEAL Metallic Aluminum

Features

1. Ballast Housing: 0.09" extruded aluminum housing with die cast endcaps.
2. Ballast: High power factor electronic metal halide ballast.
3. Reflector Housing: .095" thick extruded aluminum body with die cast end
caps.
4. Vertical Pivot: 0 - 90° vertical adjustment.
5. Horizontal Pivot: Die cast track adapter with positive rotation stop provides
385° horizontal rotation.
6. Sockets: 5 Kv pulse rated sockets with nickel plated contacts; leads
enclosed in silicone coated fiberglass sleeving.
7. Contact Holder: High temperature thermoplastic. Secures luminaire
mechanically and makes electrical contact with track.
8. Brass Contact: Extends for connection to second circuit in Advent
Lytespan ® track.
9. Wall Washer Reflector: Asymmetrical aluminum reflector with internal
kick reflector provides even illumination on vertical surface.
10. Safety Interlock Switch: Disconnects power when safety lens is removed.
11. Safety Lens: Tempered 1/8" UV filtering glass. Meets or exceeds safety
requirements for metal halide lamps.
12. Indicator Guide: Aiming indicator assures consistent and precise multiple
unit alignment.
13. Locking Lever: Nickel plated steel. For mechanical/electrical connection to
track.

Electrical

Electronic Ballast
Input Voltage: 120V, 60Hz
Power Factor: >95%
Input Power: 78W
Input Current: .67 amp
Lytespan
13
10
3 11
4 7/8"
(12mm)
2 7/16"
6
(80mm)
Track Mountings
All Lytespan ® Track Systems, Multipoint, and
Monopoint. DO NOT USE with any other mounting
accessories or stem mounted Radius ® Track.
Electrical (Continued)
Harmonic Distortion: <10%
DO NOT USE ON A DIMMING CIRCUIT

Options and Accessories

Accepts PowerArc Accessory Holder (8293AC), Vertical Blade Louver (8293LV),
Spread Lens (8293BE), UV Filter (8293UV), and Visor (8293VS).
NOTE: 8293UV or 8293BE must be combined with 8293AC.

Finish

All painted finishes are baked enamel.

Labels

®
UL; cUL.
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • B0303
® Track Lighting System
PowerArc TM Double Ended Metal Halide Wall Washer
12
1 1/8"
(29mm
3/4"
(19mm)
4
3/32"
(2mm)
3 7/8"
(98mm)
8 1/16"
(205mm)
Lamps
70W CDM or CMH T-6
Double Ended Metal Halide (M-98)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
a Genlyte Thomas Company
8292WE
8292WE
0400
5
2
1
12
4 3/16"
(106mm)
Type:
www.lightolier.com
3"
(76mm)
1 13/16"
(46mm)
29/32"
(23mm)
