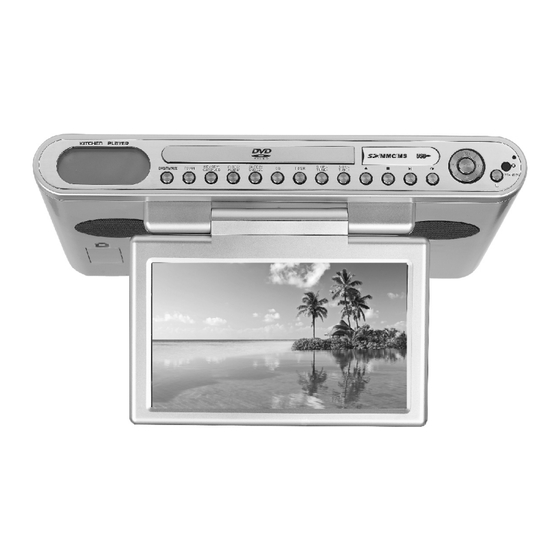

Multi-media digital tv receiver for kitchen
Hide thumbs
Table of Contents

Advertisement

Quick Links

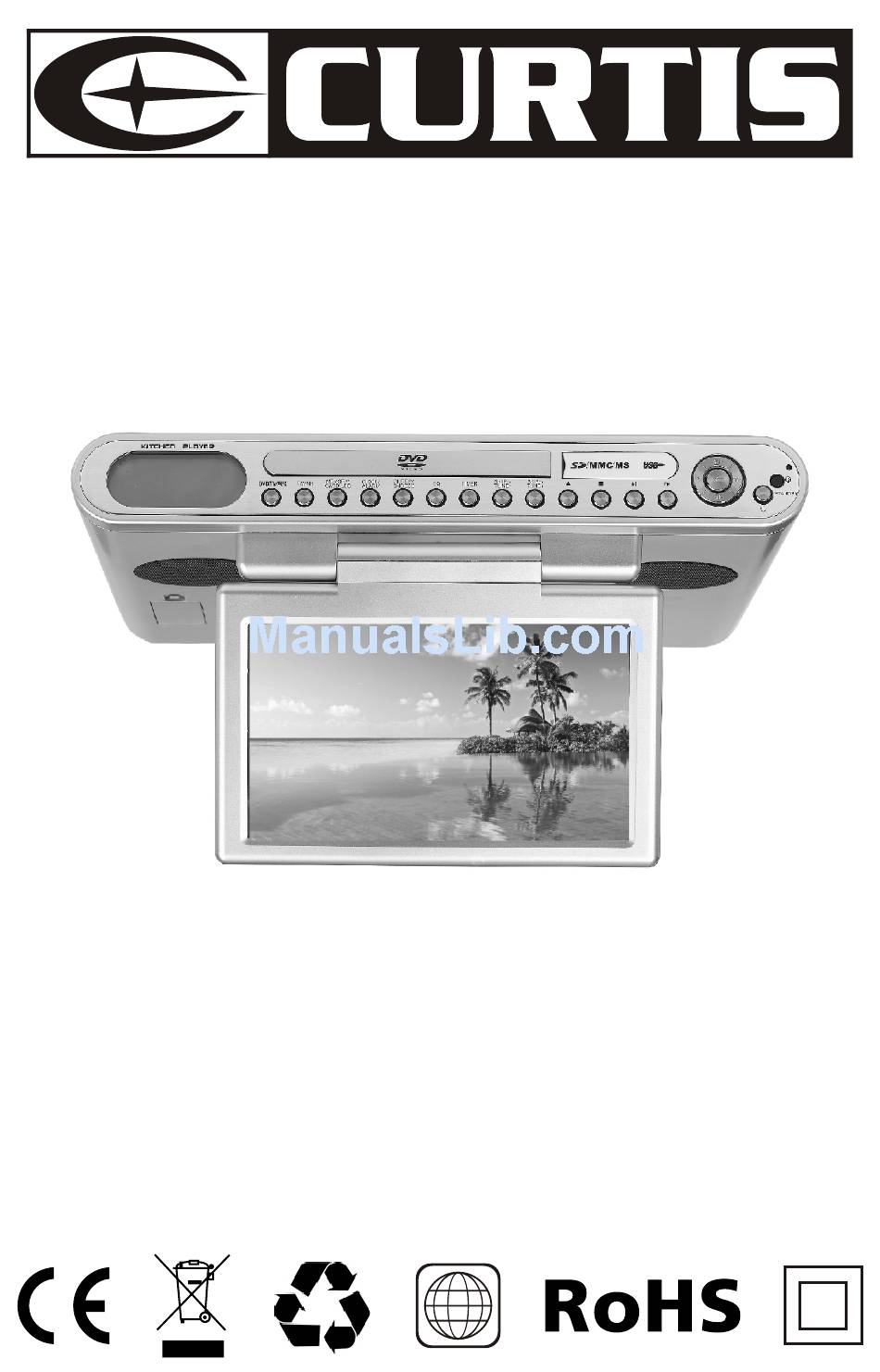

Operation Instruction
MODEL NO.: KCR2620DUK
Multi-media Digital TV Receiver
for Kitchen
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KCR2620DUK and is the answer not in the manual?

Questions and answers

Related Manuals for Curtis KCR2620DUK

Summary of Contents for Curtis KCR2620DUK

  • Page 1 Operation Instruction MODEL NO.: KCR2620DUK Multi-media Digital TV Receiver for Kitchen...

  • Page 2: Table Of Contents

    Table of Contents Precautions Accessories Description of Appearance Description of Remote Controller Basic port Connect Operation Instruction for Alarm Clock Radio System VII DVB-T Digital TV Receiver Instruction VIII Analog TV receiving operation DVD Operation Instruction Troubleshooting Technical Parameters...

  • Page 3: I Precautions

    I Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -20 to 60 and the working temperature from -5 to 40 . 2. Do not use this product at damp environment like bathtubs, wash basins, washtubs, as well as basements, swimming pools or similar places Protect TFT Display from bumping.

  • Page 4: Accessories

    II Accessories Knighthead Screws Operation Remote control Instructions Installation 2 UM4 Batteries manual...

  • Page 5: Description Of Appearance

    III Description of Appearance 1. DVD/TV/AUX: Mode Switch key. In power-on state, press this key to switch between DTV/ATV/DVD/AUX. 2. FM/AM: Radio Mode key. In power-on state, press this key to enter the FM/AM Mode Switch of RADIO system. 3. MEMORY/CARD/USB: In the radio state, press this key to enter Channel Storage State, then press "SKIP+/TUNE+"...
  • Page 6 Power-off Setting function. Press this key in sleep state to cancel this state; in alarm state, press this key to start snooze function (interval time is 8 minutes), and the screen will show "SNOOZE" symbol. 6. EQ: Sound Effect key. Press this key in power-on state, you can set the sound effect as Rock Jazz Popular Classical Normal in turns.
  • Page 7 13. OK: OK key. In the DTV and DVD state, press this key to confirm the selected item. 14. VOL-: Volume Decreasing key. In power-on state, press this key to decrease volume; when entering analogue adjusting menu, press this key to adjust analogue decrease; in the DTV and DVD state, press this key to select left.

  • Page 8: Description Of Remote Controller

    25. TV Antenna Input. 26. External video Input. 27. External Audio Left Channel Input. 28. External Audio Right Channel Input. 29. External DC Power socket (Optional). 30. Power Cable. 31. FM Antenna. IV Description of Remote Controller 1. POWER: Standby/ Power off key. Press it to switch between Power-on and Standby, when the alarm sounds, press this key to close alarm.
  • Page 9 and minutes of the current time, AL1, AL2(the number of current hour or minute will flash), then press "SKIP/TUNER" key to adjust. When these two alarms are set at the same time, alarm 1 is effective but alarm 2 isn't. 6.
  • Page 10 18. A-B: A-B Screen Repeat key. 19. SLOW: Slow key (Only in DVD state). 20. SLEEP: Sleep Timing Power off key. Press this key to set the system power-off at different times. 21. OPEN: Eject key. 22. CARD/USB/MEMORY: In the radio state, press this key to enter Channel Saving State, then press "SKIP+/TUNE+"...

  • Page 11: Basic Port Connect

    34. EPG/ANGLE: In DTV state, it is the Electronic Program Menu key. Press this key to enter electronic program menu interface; in DVD state, it is Angle Switch key. 35. TEXT: Text Information key. In DTV state, press this key to start text function to check the text information.

  • Page 12: Operation Instruction For Alarm Clock Radio System

    VI Operation Instruction for Alarm Clock Radio System 1 .Time setting CLOCK on remote) Press for 3 seconds Hour setting CLOCK on remote) Press one time Minute setting CLOCK on remote) Press one time Alarm 1 hour setting CLOCK on remote) Press one time Alarm 1 minute setting CLOCK...
  • Page 13 3. Snooze/Turn off alarm While the alarm ring, press SNOOZE to pause, it will ring again after 8 minutes. While the alarm ring, press POWER to stop, it will ring at this time next day. 4. Sleep time setting Press SLEEP key to choose sleep time to be (90, 80, ..10) minutes. 5.

  • Page 14: Dvb-T Digital Tv Receiver Instruction

    VII DVB-T Digital TV Receiver Instruction 1. Automatic installation guide For first use or when the program list doesn't exist, system will implement quick installation guide after connecting power. Please follow the screen prompt, press "OK" key to scan automatically as shown in the following picture: 2.
  • Page 15 Operation Instruction Menu Function Submenu "Program information list": Enter "Service Organiser", press to browse program information, following the prompt, you can press the red key to delete the program in channel list, press green key to move current Organiser program order in channel list, press move;...

  • Page 16: Analog Tv Receiving Operation

    VIII Analog TV receiving operation Press DVD/TV/AUX to enter ATV mode, display options as follows: PICTURE SYSTEM PRESET MAIN MENU PICTURE SYSTEM PRESET 1. PICTURE Press to select Picture item. Press , Bright, Contrast, Saturation and Reset displays on the screen as illustrated below: PICTURE BRIGHT CONTRAST...
  • Page 17 2. STSTEN Press to select System item, press then (language), (picture mode), (Image Flip) and Blue back displays on the screen as illustrated below: SYSTEM ENGLISH 16:9 BLUE BACK Use direction key to adjust selected item. 3. PRESET Press to select Preset item, Position, Remember, Auto search, Swap, Fine, Search, Sound-sys and Color-sys as illustrated below: PRESET PROGRAM...
  • Page 18 Note Auto Search Start from Program No. 0. 2. When receive signal under Manul Search, the indicati o n frequency stop means the optimum position for signal storage. If channel under weak signal is received, the channel storage system will automatically identify it as no signal.

  • Page 19: Dvd Operation Instruction

    IX DVD Operation Instruction 1. Instruction for basic operation > 1 Play/Pause 1) After the disc be read, the disc types information of DVD, VCR or CD could be displayed on TFT screen. 2) Some disc will play automatically when tray is in. 3) When playing DVD or some VCD2.0 disc, the menu will emerge, you could select the option by pressing direction key or digital keys, then press OK to confirm.
  • Page 20 2. Special function operation instruction > 1 Selection of caption language While playing, you could select your favor caption language by press SUBTITLE key directly or pressing SETUP key to enter system menu to change caption language. Please refer to system menu operations. Note: 1) Some disc only contain one language.
  • Page 21 6>Menu Some DVD discs have complex contents such as multi-subtitle, multi- audio, or multi-angle. In these cases, you can use the DVD menu to select audio language, subtitle language, and video angle. 1) Press MENU during playback to display the DVD menu. 2) Press MENU again resumes to normal playback of the scene when MENU key was first pressed.
  • Page 22 DVD disc Info Display CD disc Info Display VCD disc Info Display Title selecting If the disc include many Title or chapter, press "SEARCH" use direction key or digit number key to select title, chapter and time. Play CD CD track select Playing CD, all track can be select and play: 1.
  • Page 23 Viewing JPEG files JPEG files list Current selected file Preview picture JPEG file list in the current folder The operation method of viewing JPEG files is similar as the operation method of playing MP3, the above picture will appear after insert JPEG disc.
  • Page 24 3. System menu setup To setup the mainframe system, Press SETUP to enter system menu. Then you could setup the DVD player for Lock, Display, Audio, Language and Default etc. 1. Use left/right key to select item on the main option list. The item list appear.
  • Page 25 The default of this DVD player MENU ITEM DEFAULT NTSC/PAL/AUTO TV SYSTEM TV TYPE 4:3PS/4:3LB/16:9 USE NUMBER KEYS TO ENTER A NEW PIN, THEN SYSTEM WILL START LOCK FUNCTION. PASSWORD SYSTEM (DEFAULT PIN IS 9999) SETUP KID SAFE/G/PG/PG13/PG-R/R/NC-17/ADULT RATING DEFAULT RESTORE ENGLISH/CHINESE/GERMAN/SPANISH/ LANGUAGE...

  • Page 26: Troubleshooting

    X Troubleshooting The following phenomenon does not indicate failures. Before you contact us for repair, please check your device according to the approaches below. Problems Causes Power wire is not properly connected; the functioning power source is not No picture or sound recognized;...

  • Page 27: Technical Parameters

    XI Technical Parameters DVD Technical parameters Laser wave length: DVD 650nm; CD 780nm Optical pickup: DV34 (SANYO) Compatible disc: MPEG-4, DVD, VCD, CD, MP3, WMA, JPEG CD, CD-R, CD-R/W, DVD+R/-R(nonsupport DIVX 3.11 version) Other Compatible media: USB/Multi Media Card(MMC)/SD/Memory Stick(MS) Shockproof: DVD 3seconds;...
  • Page 28 Speaker Output Power: more than1.2W 2CH(when Distortion is less than 10%) Power Consumption: less than 20W Dimensions: 360mm 290mm 78mm Weight: about 2900g Note: Batteries only power the system clock. When main power is off, clock and memory remains the same and the TV receiver stops playing. Because system clock is powered by batteries, the time display will be still correct when the TV receiver is reconnected to main power and begins to play.
  • Page 29 W a rn in g This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements, the features and design are subject to change without notice. W a rn in g No repairable components exist in the machine.
