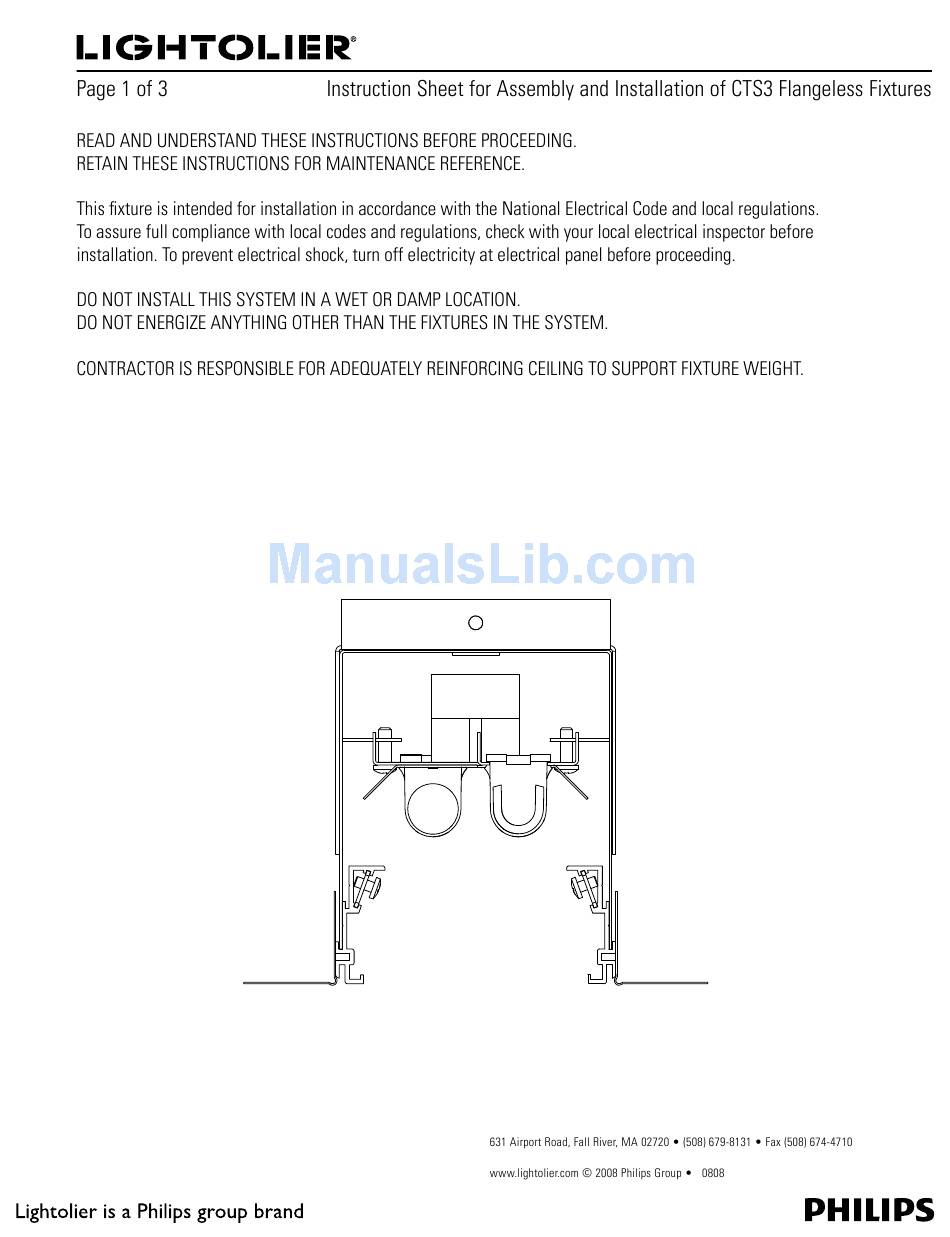

Page 1: Lighting Systems
IS-CTS3_FLNGLSS Lighting Systems NOTE: FIXTURES WERE DESIGNED TO BE INSTALLED PRIOR TO CEILING. We reserve the right to change details of design, materials and finish. - Page 2 IS-CTS3_FLNGLSS Lighting Systems Individual Installation Figure 1 Hang Fixture from Struc- ture Above. Make Sure Figure 2 Figure 3 Fixture is Leveled Length- wise and Widthwise Provide Power to Fixture Through Install Diffuser Provide Access Plate and Test. Build with Fixture. Lens or Ceiling Around Fixture Then Louver.
- Page 3 IS-CTS3_FLNGLSS Lighting Systems Row Installation End or Telescopic Access Plate Individual 1 or More Joiners Spline Aligner Starter Figure 4 Spline Aligner We reserve the right to change details of design, materials and finish.
