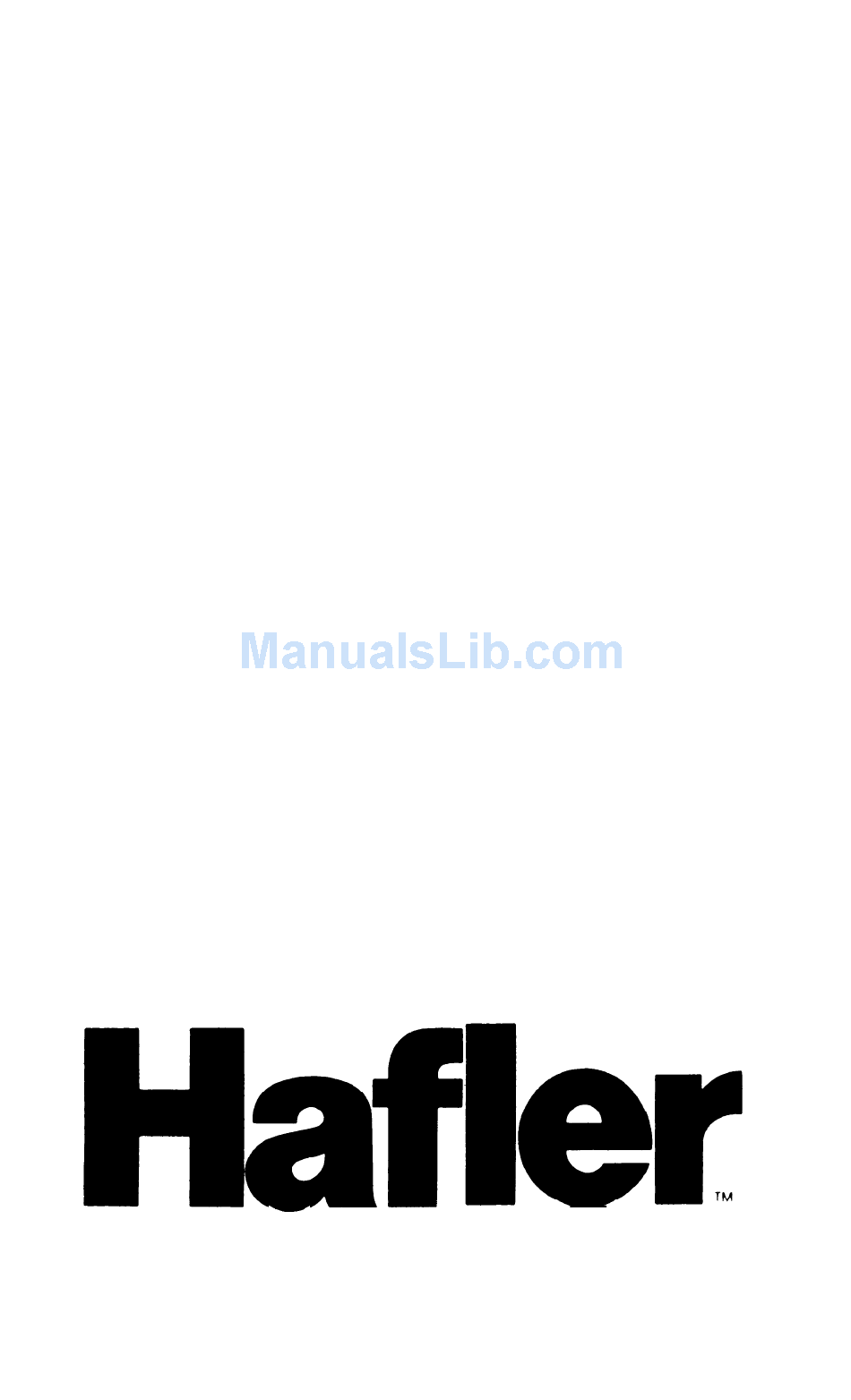

  • Page 1 OWNER’S MANUAL IRIS FM TUNER IRIS FM TUNER 9f Ier A Division of Rockford Corporation 613 South Rock-ford Drive Tempe, Arizona 85281 602-967-3565...

  • Page 2: Installation

    IRIS Tuner. Hafler products are designed to be easy to operate for new or occasional users, but also to provide access to many additional features and modes for those who wish to be- come informed about them.

  • Page 3: Power Connections

    The IRIS Tuner is shipped with styled end caps on its front panel. Rack-mounting ears are available from the factory for standard 19”-wide racks. POWER CONNECTIONS The IRIS Tuner is internally connectable for virtually all AC line power systems. Unless otherwise labelled, all units are wired for volts AC, Hz.

  • Page 4: Operation

    way. Be sure to insert the plugs fully. Connect the free end of the cable to the single connector on the rear of the IRIS Preamp. OPERATION For now, make sure that the four SPECIAL FUNCTION switches 4) are in the OUT position. (11-I (1-5) PRESET KEYS These keys allow five station frequencies to be STORED...

  • Page 5: Scan Mode

    higher tuning resolution is included in your tuner for both European use and to allow for slight intentional off-tuning, which is sometimes useful in unusual reception situations. (9) SCAN KEY (AUTOMATIC TUNING) This mode will usually be preferred for locating stations. Pressing SCAN initiates an automatic band-scanning mode which pauses for four seconds on stations, then resumes the SCAN.
  • Page 6 Holding SCAN for one second results in a FAST-SCAN mode, which, upon key release, reverts to normal-speed SCAN to the next detected station. During FAST-SCAN the tuning process will hold at the band ends, until you release the SCAN key. (11-14) THE SPECIAL FUNCTION SWITCHES (11) DISTANT STATION All tuners featuring automatic tuning have circuitry to tell...
  • Page 7 19 MUTE INDICATOR LIGHTS WHEN AUDIO OUTPUT IS (DEAD) MUTE TUNEFREQUENCY 18 REMOTE INDICATOR 20 STEREO INDICATOR (MEGAHERTZ) LIGHTS IF MONO FLASHES EACH TIME SMALL “5” LIGHTS FOR SWITCH IS OUT TUNER RECEIVES COMMAND CODE 0.05 MHz - 50 kHz 1 6 SIGNAL STRENGTH AND USABLE STEREO FROM IRIS REMOTE SYSTEM...
  • Page 8 During PRESET, SCAN and FAST MANUAL tuning modes, muting is always activated by digital signals from the tuning system. Muting is also commanded by the IRIS remote control system, as explained later. For “DXing”, i.e. searching for extremely distant stations, you may elect to de-activate the AUDIO-MUTING system, for SLOW MANUAL station “searching”.

  • Page 9: Remote Control

    needed, to cancel the noise deriving from the separation information, carried totally on the subcarrier. In nearly all cases, such progressive channel blending, applied only on weak signals, results in a far more listenable overall situation. The IRIS noise-reduction circuit has no effect on stronger signals, thus we have configured the (13) BLEND OFF switch...

  • Page 10: Key Operation

    (This “handshake” muting of IRIS Tuner by IRIS Preamplifier, when the Tuner is de-selected, is employed to guarantee that the “on” Tuner cannot “crosstalk” into the audio of your other selected Preamplifier sources--thus allowing you to leave the Tuner powered for maximum remote convenience.) KEY OPERATION All of the KEY functions of the Tuner panel which are...

  • Page 11: Additional Information

    RECORD SECURITY As explained in the “remote” section of the IRIS Preamplifier Manual, if RECORD SECURITY is in effect (either RECORD switch is in on the IRIS Preamplifier), the Tuner will refuse all IRIS remote commands, including CLR. The Preamplifier’s red MUTE legend will remind you of this by distinctive interrupted-flashing mode.

  • Page 12: In Case Of Difficulty

    The Hafler IRIS Tuner is warranted for 3 years from date of purchase, including parts, labor, and return shipping costs from the factory to the owner within the Continental USA.
