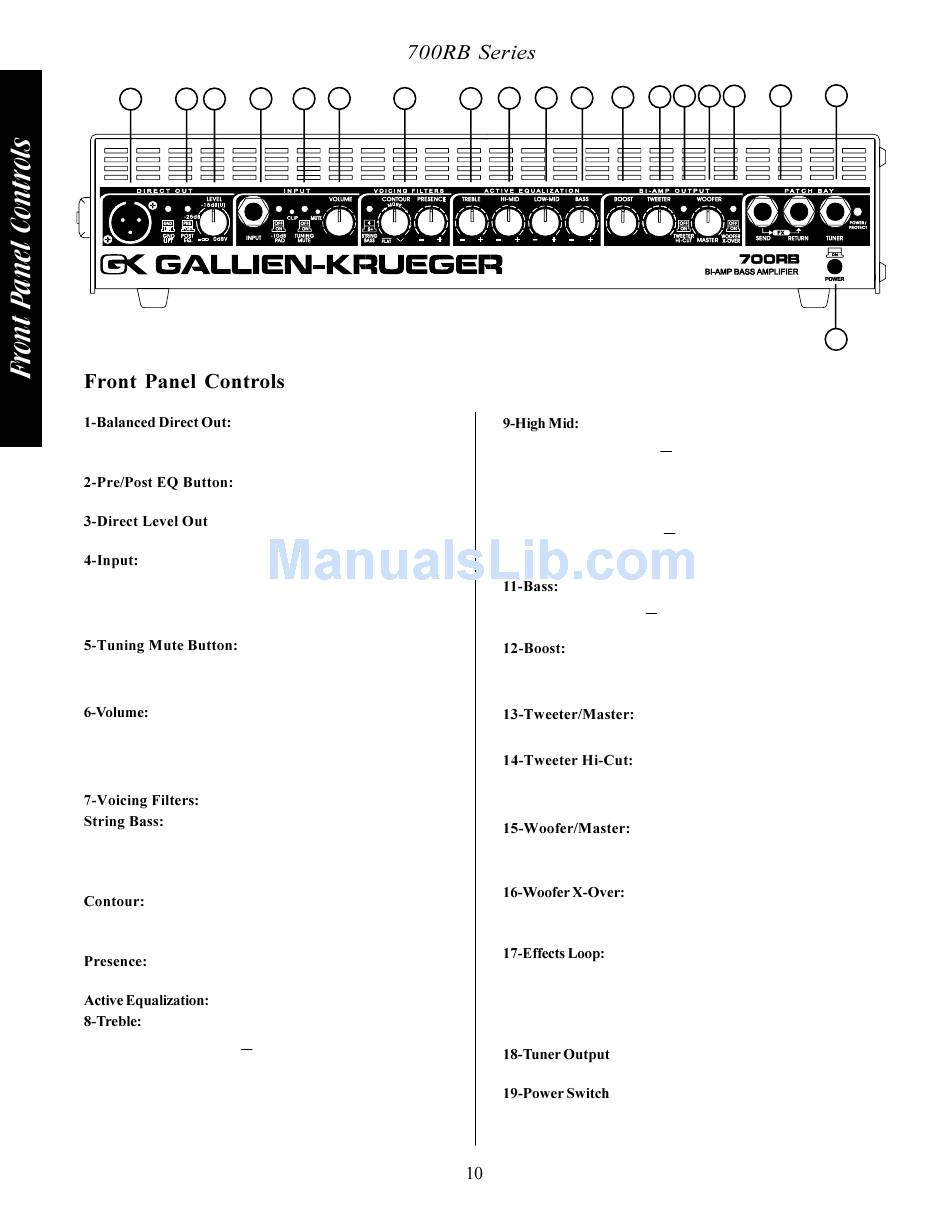

Front Panel Controls; Front Panel Display - Gallien-Krueger 700RB series Owner's Manual

3 4
1 2
An electronically balanced output, that you can run
to your P.A. system.
Selects the direct out signal from before or after the EQ.
Controls the level at the direct out jack.
A standard ¼" input jack and input attenuator button.
The button is generally left out, except in rare cases when
the clip LED flashes.
Set this switch to "On" when tuning up. No signal
will be sent to the speakers, or the P.A. system.
Sets pre-amp gain after the input stage. It is used in
conjunction with the input pad, to optimize the
amplifier's headroom.
Setting this button voices the pre-amp for basses with
"B" tuning. Leave it out and the amp is voiced like the
800RB, for 4 string basses.
Drops the mid-range frequencies while boosting lows &
highs.
Adds edge and definition to higher frequencies.
Boost and cut at 7 kHz +15dB shelving type. Add or
remove edge and definition.
5 6 7 8
12 13 14 15 16
10 11
9
Boost and cut at 1 kHz +10dB, "Q Optimized," band
pass type. Works on lower string harmonics, and
effects the punch of your sound.
Boost and cut at 250Hz +10dB, "Q Optimized,"
band pass type. Works on the main body of your
sound.
Boost and cut at 60Hz +10dB, shelving type. Controls
low end push.
A post EQ gain stage using GIVE technology which
adds "growl" as it is turned up.
Controls output level to tweeter.
Cuts frequencies above 10kHz, producing a more
"cone" like sound from the tweeter.
Controls output level of 380W amplifier. For Bi-
Amp operation, this controls the woofer level.
Set this button to engage the electronic crossover
for the woofer. The tweeter is always crossed over.
Send and return jacks provided for the insertion of
effects after the EQ, but before the boost section.
Some effect units have gain, turning the BOOST
down, will compensate for this.
Output to tuner.
Turns the amplifier on or off. Should a problem
occur during operation press this switch first.
17 18
19
