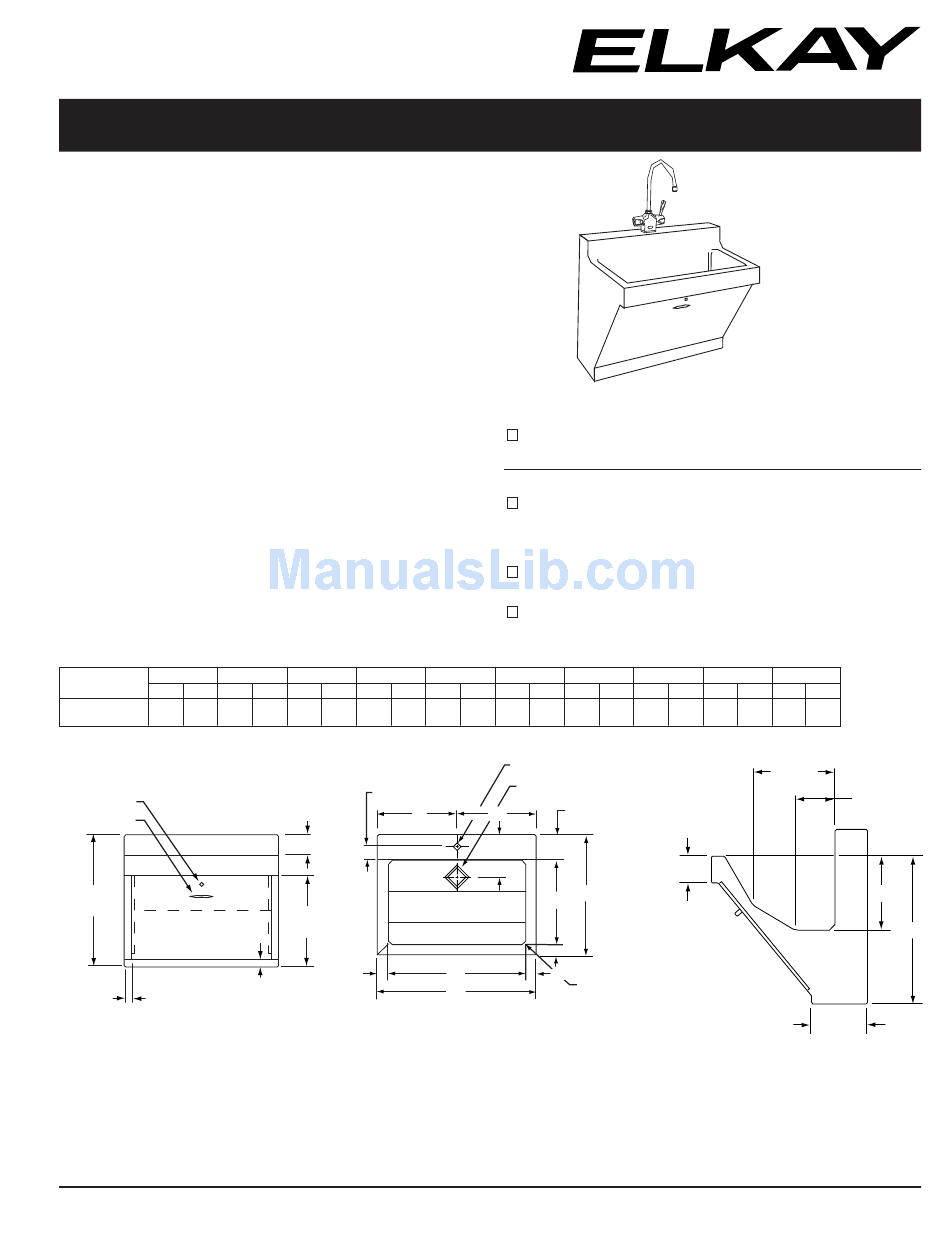

Elkay EWSF13026 Specifications

Scrub-up Sink, Sensor-Operated,
Single Station, Wall Mounted
Models EWSF13026SACC and EWSF13026
SPECIFICATIONS
GENERAL
#16 gauge, type 304 (18-8), stainless steel single station slant
front scrub-up sink with sensor faucet, coved corners, keyed
access door, wall hanger, full length backsplash and full enclo-
sure. Exposed surfaces are polished to a satin finish. Underside
is sound deadened.
FURNISHED COMPLETE WITH:
SUPPLY: LK720AC Sensor-operated, deck-mounted, goose-
neck faucet with adjustable sensor eye, adjustable
temperature control and manual override. AC pow-
ered, chrome plated – solid brass construction.
15-1/4" (387mm) high (bottom of base to top of
spout) and 8" (203mm) reach spout with 2.0 GPM
laminar flow control, 10-1/4" (260mm) from deck to
spout outlet. Includes vandal-resistant, water-
resistant sensor control module with armored vandal-
resistant control and power cables. 12V DC plug-in
voltage adapter, slow-closing piston operated
solenoid valve, (2) in-line Y strainers with check
valves, and (2) 3/8" (10mm) stainless steel braided
19" (483mm) supply line. Control circuit is solid state,
has adjustable sensor range (6" [152mm] preset to
30" [762mm]), shut off delay preset at 1 second and
field adjustable to 2, 4 or 8 seconds, and automatic
time-out feature (to prevent sink overflow) is preset at
0 seconds and is field adjustable to 15, 30 or 60
seconds.
DRAIN: LK18B Stainless steel perforated strainer grid, drain
fitting with 1-1/2" (38 mm) O.D. x 4" (102mm) stain-
less steel tailpiece.
DIMENSIONS
A
Model
Number in. mm in.
EWSF13026 30 762 23
KEY LATCH
HANDLE
26"
(660mm)
1-1/2"
(38mm)
TYP.
NOTE: SEE REVERSE SIDE FOR ROUGH-IN DIMENSIONS
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay Manufacturing Company
www.elkay.com
B C D
mm in. mm in. mm
584 26 660 16 1 / 413
4
2-1/2" (64mm)
F
H
18"
(457mm)
E
1-1/2"
(38mm)
FOLLOWING MODEL DOES NOT INCLUDE SENSOR
FAUCET AND DRAIN:
EWSF13026
SPECIFY FAUCET DRILLINGS AND LOCATION.
OPTIONAL (Specify Separately):
LK723 Anti-scald thermostatic mixing valve with nickel
plated brass body, 1/2" (13mm) union SWT inlets and outlet
connection. Comes with internal check valves on inlets and
mixed temperature range of 80° – 120°F.
LK729 Battery holder with (4) AA batteries for converting
LK720AC to battery powered.
LK731 Rose spray head, 2.5 GPM, female thread.
E F G
in. mm in. mm in. mm
2 51 15 381 8 1 / 206
8
1-1/4" (32mm) DIA. HOLE
3-1/2" (89mm) DIA. HOLE
4-3/4"
F
(121mm)
G
B
D
C
E
3/4"
A
(19mm)
TYP.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Model EWSF13026SACC
H I J
in. mm in. mm in. mm
4 102 11 279 22 559
11-1/2"
(292mm)
H
8-3/8"
(213mm)
Printed in U.S.A.
©2002 Elkay Mfg. Co.
(Rev. 3/02)
®
5-3/4"
(146mm)
I
J
3-30B
