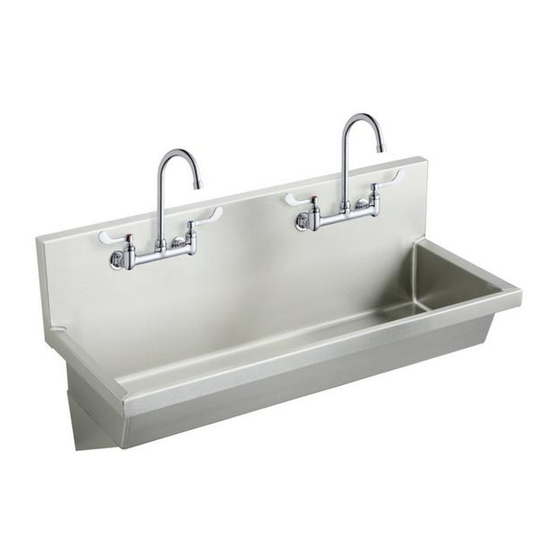

Elkay EWMA4820 Specifications

Two Station Wall Mounted
Wash Sink
Models EWMA4820C and EWMA4820
SPECIFICATIONS
GENERAL
#14 gauge, type 304 (18-8), stainless steel multiple station
wash sink with 1/4" (6mm) radius coved corners. 1-1/2"
(38mm) wide inward sloping top channel rims, with 2" (51mm)
flat apron. Full length 10" (254mm) high backsplash. Exposed
surfaces are hand blended to a uniform lustrous satin finish.
Furnished with wall hangers and stainless steel support
brackets.
(CHECK MODEL SPECIFIED)
EWMA4820C
FURNISHED COMPLETE WITH:
SUPPLY: LK393ABH6. (Two) chrome plated mixing faucet with
BH6A 6" (152mm) wrist blade handles, swing 10-1/4"
(260mm) high gooseneck spout, AE19A vandal-
resistant anti-hose aerator.
DRAIN: LK18B. Stainless steel perforated strainer grid.
1-1/2" (38mm) O.D. x 4" (102mm) stainless steel
tailpiece.

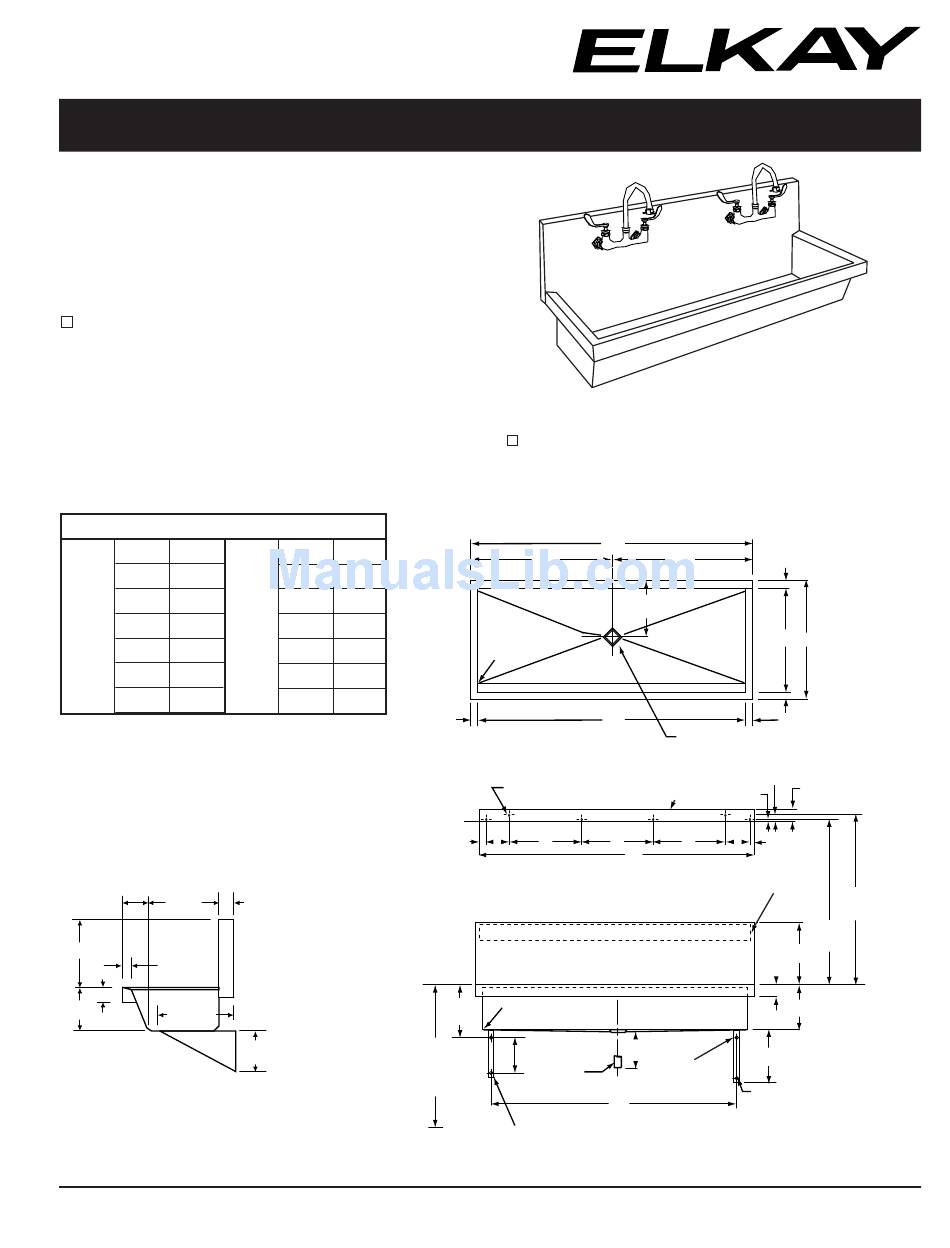

DIMENSIONS
Model Number EWMA4820
DIMS. in. mm DIMS.
A 48 1219
B 20 508
C 45 1143
D 16 / 419
1
2
E 24 610
F 40 1016
SIDE
4-1/4"
(108mm)
13-3/4"
(349mm)
G
J
14"
K
(356mm)
I
Elkay
www.elkay.com
in. mm
G 10 254
H 4 102
I 2 51
J 1 / 38
1
2
K 8 203
I
7-3/4"
36" (914mm)
(197mm)
SUGGESTED
FLOOR TO
RIM HEIGHT
2222 Camden Court
Oak Brook, IL 60523
FOLLOWING MODEL DOES NOT INCLUDE
SUPPLY AND DRAIN:
EWMA4820
SPECIFY FAUCET DRILLINGS AND LOCATION.
(See other side for standard faucet hole drilling configurations.)
TOP
E
1/4" R
(6mm)
J
1/4" (6mm) x 1" (25mm)
LONG SLOT (6 PLACES)
1"
(25mm)
H G
SEE OTHER SIDE FOR FAUCET
FRONT
HOLE DRILLING CONFIGURATIONS
9-1/8" 1/4" R
(232mm) (6mm)
5-3/8"
(137mm)
1-1/2"
(38mm) O.D.
(1092mm)
STAINLESS STEEL BRACKETS
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Model EWMA4820C (Two station)
A
E
I
8-7/8"
(225mm)
D
C
J
3-1/2" (89mm) DIA.
FOR LK18B DRAIN
1-1/2"
(38mm)
1/2"
WALL HANGER (13mm)
1"
G G H
(25mm)
F
WALL HANGER
I
6-3/8"
7-3/4"
(162mm)
(197mm)
7/16" (11mm) x
3/4" (19mm)
SLOT
7/16" (11mm)
DIA. HOLE
43"
Printed in U.S.A.
©2002 Elkay
®
B
2-3/4"
(70mm)
8-11/16"
(221mm)
7-11/16"
(195mm)
G
K
3-14G
(Rev. 9/02)
