INSTALLING THE COOKER HOOD

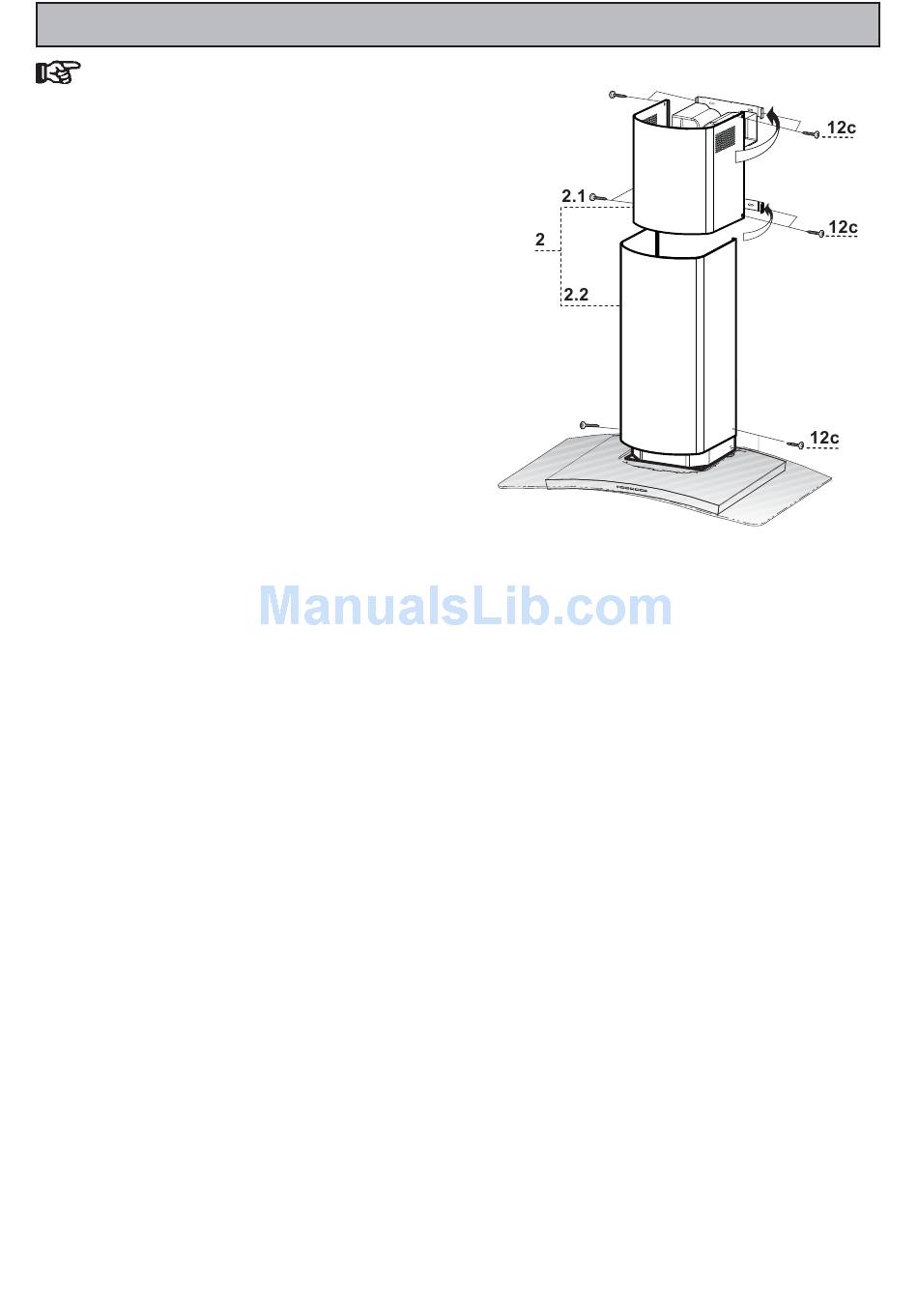

Fitting the Chimney Stack
The chimney consists of two sections.
The lower chimney measures 740mm and the
upper chimney (with the recirculation grilles
on either side) measures 465mm. The overall
installed measurement is min. 870 - max
1200mm.
UPPER CHIMNEY
To fi t the upper chimney section item 2.1 expand
the chimney slightly to allow it to be fi tted over the
brackets item 7.2.1 as illustrated.
When installed in the recirculation mode ensure
that the recirculation ducting outlet extension
pieces item 14.1 align correctly with the outlet
grilles in the chimney.
Secure the sides of the chimney to the brackets
using the four screws item 12c (2.9x9.5mm)
provided, as illustrated.
LOWER CHIMNEY
To fi t the lower chimney section item 2.2 expand
the chimney slightly to allow it to be fi tted over the
upper chimney item 2.1 and the hood body item 1
as illustrated.
Secure the sides of the chimney to the hood
body using the two screws item 12c (2.9x9.5mm)
provided, as illustrated.
17
