Please ensure that when the appliance is installed
it is easily accessible to an engineer in the event of
All installations must comply with the local
authorities requirements for the discharge of
Incorrect installation may affect the safety of this
Before installation check the wall to which the
cooker hood is to be ﬁ tted for electric cables,
water pipes or gas.
This cooker hood is designed to be ﬁ xed to any vertical
surface over a cooking area, and can be used in the
extraction (ducted to the outside) or recirculation mode.
The installation work must be undertaken by a qualiﬁ ed
and competent person.
The manufacturer disclaims any responsibility for
damage due to incorrect installation of the cooker hood
or if the hood is not installed in compliance with relevant
regulations controlling this type of installation.
Before unpacking the cooker hood position
the carton with the arrows pointing upwards as
illustrated on the carton.

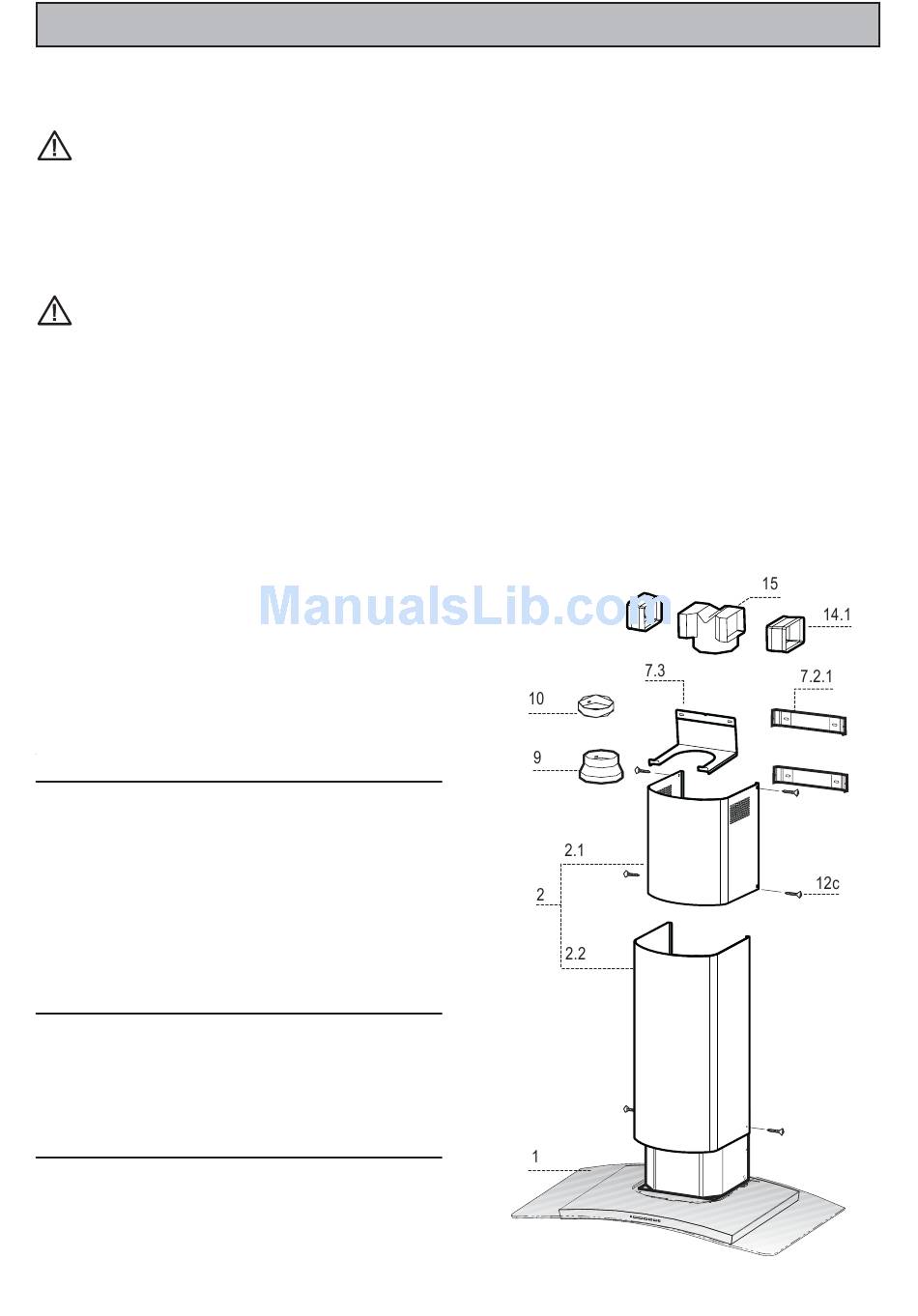

The cooker hood is made up of the following
Hood body, complete with controls,
lighting, fan and ﬁ lters.
Telescopic Chimney comprising:
ø150-120 Ducting spigot
ø120-125 Ducting ﬂ ange
Air outlet Connection Extension
Air outlet connector
Upper chimney Section Fixing
Air Outlet Connection Support
Screws 4,9 x 9,5
INSTALLING THE COOKER HOOD
