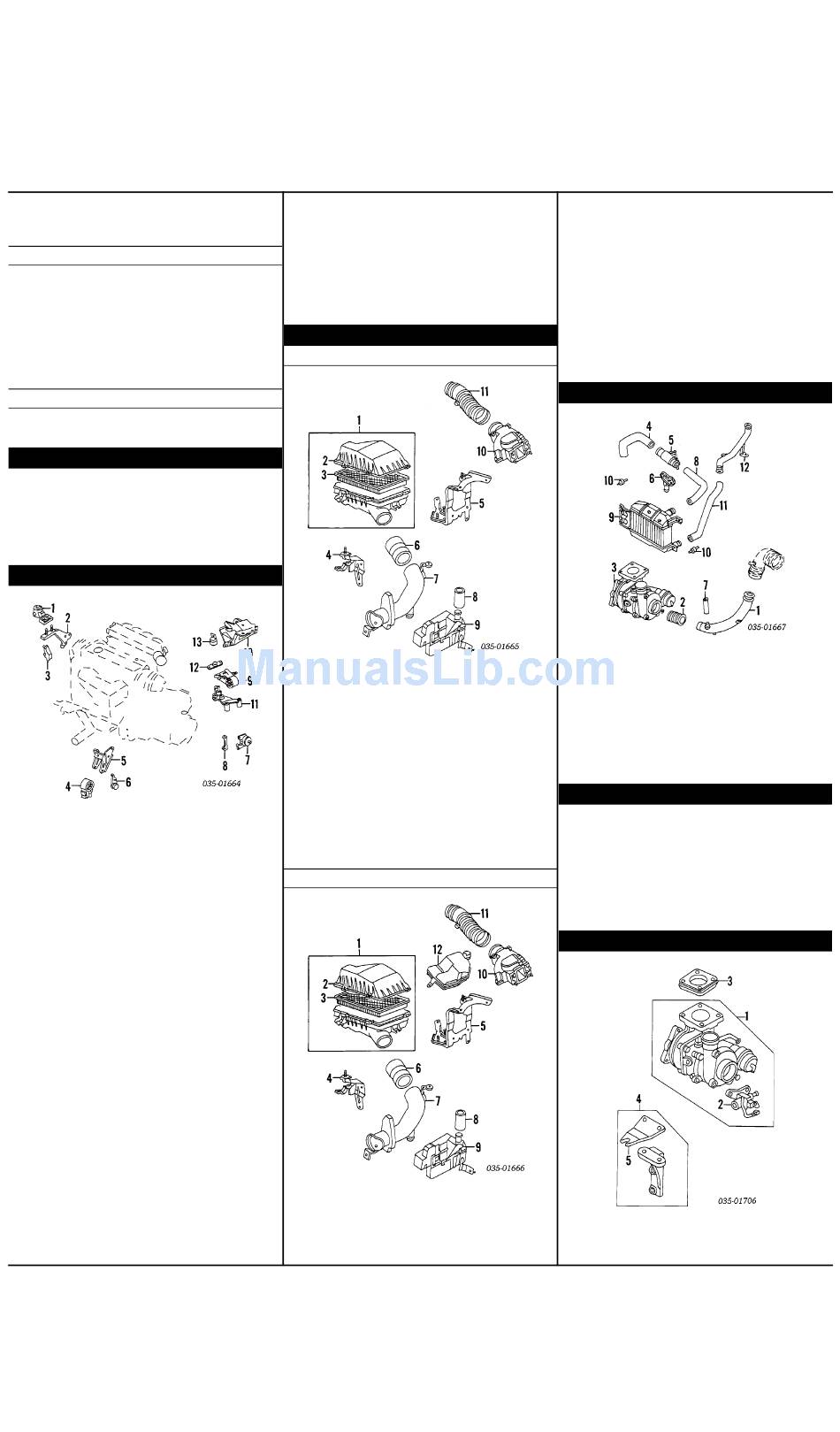

Mazda 626 Owner's Manual: Air Cleaner; Engine Mounts; Intercooler; Turbocharger

1988-92.
Hide thumbs
Also See for 626
Owner's manual - 365 pages
Manual - 18 pages
Workshop manual - 577 pages

Advertisement

Man Trans
GN51-66-760A
Auto Trans
w/Turbo
GN56-66-760
w/o Turbo
GN51-66-760A
Bracket, Main Fuse Block
GJ21-67-980D
ALTERNATOR
Alternator Assy¶ (a)
F8B1-18-300R-00
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
(a) Order by Application
Pulley, Alternator (b)
1988-89
F8B1-18-W11
1990-92
F202-18-W11
(b) Included w/Alternator Assy
Bracket, Lower
F201-18-371
Bracket, Adjusting
F201-18-361
Belt, Alternator
88-89 F201-18-381A-9U
90-92 F2F6-18-381-9U
BATTERY
Battery¶
0000-80-026R-WB
¶Order by Application
Cable, Battery-Serviced w/Wiring Harness
ENGINE
Pulley, Crankshaft
88-89 F202-11-401
90-92 F262-11-401
Pulley, Crankshaft Timing
FE1H-11-321
Cover, Upper Timing
F210-10-510
Cover, Lower Timing
FE4R-10-500C
Pan, Eng Oil
FE3N-10-400B
Gasket, Eng Oil Pan
F801-10-431
Sealant, Eng Oil Pan Gasket
8527-77-739
Fuel Pump-See Fuel Tank Section

ENGINE MOUNTS

1 Mount, Engine Right
Man Trans
w/Turbo
GJ26-39-060E
w/o Turbo
GJ27-39-060E
Auto Trans
GJ27-39-060E
2 Brkt, Right Mount
88-89 GJ21-39-030G
90-92 GJ51-39-030A
3 Protector, Rubber Mtg
1988-89
GJ21-39-999A
1990-92-Not Serviced
4 Mount, Front
Man Trans
1988-89
GJ21-39-050B
1990-92
w/Turbo
GJ21-39-050B
w/o Turbo
M001-39-050
Auto Trans
GJ23-39-050C
5 Bracket, Front Mount
Man Trans
w/Turbo
GJ25-39-020
w/o Turbo
88-89 GJ21-39-020C
90-92 M001-39-020
6 Damper, Vibration
Man Trans
w/o Turbo
GJ21-39-02XA
7 Mount, Trans Left
Man Trans
w/Turbo
GJ25-39-040B
w/o Turbo
88-89 GJ21-39-040A
90-92 M001-39-040
Auto Trans
w/Turbo
GJ28-39-040E
w/o Turbo
88 GJ23-39-040C
89-92 M002-39-040B
8 Bracket, Mount
Man Trans
w/Turbo
GJ25-39-04XB
w/o Turbo
1988-89
GJ21-39-04XC
1990-92-Not Serviced
9 Mount, Trans Upper
Man Trans
w/Turbo
GJ25-39-070C
w/o Turbo
GJ21-39-070D
Auto Trans
GJ23-39-070C
10 Bracket, Upper Mounting
1988-89
M001-39-080
madpl1_g01_
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
Page 143—April 22, 2004—13:31:41—Version
1990-92
w/Turbo
w/o Turbo
11 Bracket, Lower Mounting
Man Trans
w/o Turbo
12 Damper, Vibration
Man Trans
w/o Turbo
13 Damper, Vibration
Man Trans
w/o Turbo
Xmbr, Eng-See Rocker/Pillars/Floor Section

AIR CLEANER

1 Cleaner Assy, Air
2 Cover, Air Cleaner¶
3 Element, Filter¶
¶Included w/Air Cleaner Assy
4 Bracket, Cleaner Right
5 Bracket, Cleaner Left
USA Built
Japan Built
To 7-1-90
From 7-1-90
6 Hose, Air
7 Duct, Fresh Air
8 Hose, Resonance
9 Chamber, Resonance
10 Meter, Air Flow
11 Hose, Intake Air
1988-90
1990-92
Man Trans
Auto Trans
1 Cleaner Assy, Air
USA Built
Japan Built
2 Cover, Air Cleaner¶
USA Built
Japan Built
3 Element, Filter¶
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
M001-39-080
M001-39-080
GJ21-39-090A
GJ21-39-07Y
GJ21-39-08X
W/TURBO
F220-13-320F
F220-13-Z01A
AS01-13-Z40-9U
F201-20-210C
F201-20-220D
F201-20-220D
FEHH-20-220
F201-13-206
F220-13-20XB
F201-13-207
88-89 F201-13-19XE
90-92 F285-13-19XC
F201-13-210R-00
F220-13-221B
F220-13-221B
F221-13-221B
W/O TURBO
F220-13-320F
F201-13-320D
F292-13-Z01
F220-13-Z01A
AS01-13-Z40-9U
MAZDA 626 1988-92
¶Included w/Air Cleaner Assy
4 Bracket, Cleaner Right
F201-20-210C
5 Bracket, Cleaner Left
1988-90
F201-20-220D
1991-92
USA Built
F201-20-220D
Japan Built
FEHH-20-220
6 Hose, Air
F201-13-206
7 Duct, Fresh Air
1988-89
F201-13-20XA
1990-92
USA Built
F201-13-20XA
Japan Built
F285-13-20X
8 Hose, Resonance
F201-13-207
9 Chamber, Resonance
88-89 F201-13-19XE
90-92 F285-13-19XC
10 Meter, Air Flow
F201-13-210R-00
11 Hose, Intake
F201-13-221B
12 Resonator, Intake
F202-13-195B

INTERCOOLER

1 Pipe, Air
F220-13-331B
2 Joint, Rubber
F220-13-224A
3 Turbocharger Assy-See Turbocharger Section
4 Hose, Intake Air
F220-13-222A
5 Pipe, Air
F220-13-230A
6 Valve, Air By-Pass
F220-20-250B
7 Hose, By-Pass Air
F220-13-751A
8 Hose, Intake Air
F220-13-225A
9 Intercooler
F220-13-565C
10 Insulator, Mounting (4)
F220-13-363
11 Hose, Intake Air
F220-13-223A
12 Pipe, Air
Man Trans
F220-13-360C
Auto Trans
F220-13-360C
EXHAUST
Manifold, Exhaust
w/Turbo
F220-13-450C
w/o Turbo
F202-13-450
Insulator, Exhaust
w/Turbo
F287-13-390A
w/o Turbo
F285-13-390A
Pipe, Front Exhaust¶
F201-40-500
Converter, Catalytic¶
F2Y2-20-600
Pre-Silencer¶
FEH7-40-300D
Pipe, Middle¶
F213-40-600A
Muffler, Main¶
F203-40-100F
¶Order by Application

TURBOCHARGER

1 Turbocharger Assy
F220-13-700B
2 Valve, Solenoid¶
F220-20-285A
¶Included w/Turbocharger Assy
3 Gasket
F220-13-710B
