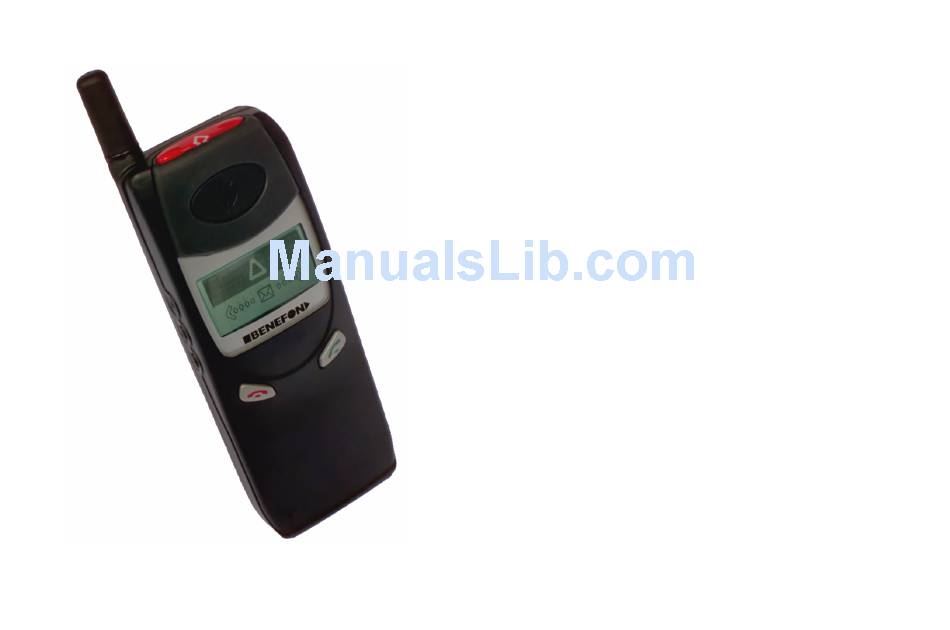

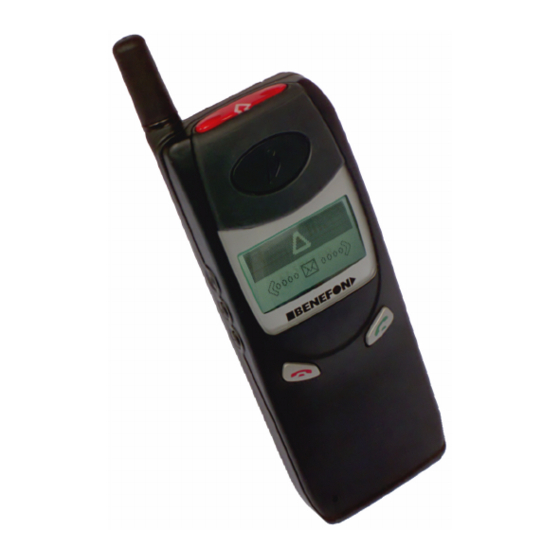

Page 1: Operating Instructions
BENEFON SERAPH NT Operating Instructions All rights reserved. Publication number: YZ2660-0 © Benefon Oyj, 2003. - Page 2 Hiermit erklärt Benefon Oyj, daß dieses Mobiltelefon vom Typ TGP79EE die wesentlichen Anforderungen und andere relevante Bestimmungen der Richtlinie 1999/5/EC erfüllt. Με το παρόν, η Benefon Oyj δηλώνει ότι αυτό το κινητό τηλέφωνο, τύπου TGP79EE, συµµορφώνεται µε τις ουσιώδεις Greek απαιτήσεις...
-
Page 3: Table Of Contents
CONTENTS PART A: GENERAL..........7 SIM FEATURES: PHONE BOOK ........14 Editing and adding an entry ........14 MECHANICS AND ENVIRONMENTAL EFFECTS..... 7 Deleting entries ............14 Sight ................7 Moving and copying entries........14 Temperature ranges ........... 7 Arranging entries ............15 Mechanical durability ..........7 SERAPH SETTINGS: CALLS ..........16 INSERTING THE BATTERY AND RUBBER SEAL...... - Page 4 SETTING CALL NUMBER MASK ............22 PART C: OPERATING THE SERAPH ....31 SETTING EMERGENCY TONES ............22 USER INTERFACE ............31 SETTING VIBRATION ................22 SETTING MANUAL EMERGENCY MODE TERMINATION ....23 Turning the device on ..........31 SERAPH SETTINGS: TELEMATICS ......... 24 Turning the device off ..........
- Page 5 MAINS CHARGER ............. 44 CHARGING ................ 44 APPENDIX.............. 55 BATTERY CARE AND MAINTENANCE ......45 LIST OF MPTP COMMANDS AVAILABLE FOR BENEFON SERAPH ......55 DISPOSAL OF A BATTERY ..........45 LOCATION MESSAGES ............... 55 WAYPOINT MESSAGES ..............55 PART E: ACCESSORIES ........46 ASSISTANCE MESSAGES..............
-
Page 7: Part A: General
BENEFON SERAPH OPERATING INSTRUCTIONS PART A: GENERAL Temperature ranges PART A: GENERAL •Usage: -20 to +55 °C with a standard Li-Ion battery MECHANICS AND ENVIRONMENTAL •Charging: Standard Li-Ion battery must not be charged below °0. Likewise, charging above +55 °C is prevented. -
Page 8: Inserting The Battery And Rubber Seal
For more information on MPTP messages, please see the Push the release catch down- separate document on MPTP commands, located at the Web wards and pull the battery ca- YSTEM CONNECTOR site: www.benefon.com. refully away from the device. 8 MPTP MESSAGES AND REMOTE CONFIGURATION (OTA) -
Page 9: The Benewin Software For The Seraph
The Benewin application window is split in two sections: •The Benetree structure is located on the left. It consists of two main nodes: My benefon (on-line) and My computer (off-line). By clicking the main nodes, you have access to their sub-nodes. By clicking the sub-nodes, you have 2. -
Page 10: Loading Settings From The Seraph To The Software
9. You can choose the desired sub-node/icon by clicking it. MATCHES WITH THE PORT THE DATA ADAPTER IS PLUGGED IN The data fields will be displayed. 4. Double-click the main node My Benefon . Or, double- Loading settings from the Seraph icon. Or, choose... -
Page 11: Saving Settings In A Computer Disk
PART B: CONFIGURING SETTINGS FOR THE SERAPH Saving settings in a computer disk Transferring settings from the software to the Seraph 1. If the device is not currently connected to the software, you can still make configurations, save them and trans- While the Benewin software is connected to the device, you fer them to the device afterwards. -
Page 12: Changing Default Mobile Phone
PART B: CONFIGURING SETTINGS FOR THE SERAPH Changing default mobile phone Disconnecting the Seraph from the software When any Benefon phone or device is connected to the Be- newin, the software identifies it automatically, and offers 1. Choose Disconnect from the Mobile menu. -
Page 13: Sim Features: Short Messages
PART B: CONFIGURING SETTINGS FOR THE SERAPH SIM FEATURES: SHORT MESSAGES Writing and sending a short message 1. Open the Benewin software. In order to write or send normal short messages via device, the device must be connected to an external device. Receiv- 2. -
Page 14: Sim Features: Phone Book
PART B: CONFIGURING SETTINGS FOR THE SERAPH Moving and copying entries SIM FEATURES: PHONE BOOK 1. To move or copy a phone book entry to another slot, As you open the Phone book , the memory entries stored in click the desired entry. the SIM card are listed and can be processed. -
Page 15: Arranging Entries
PART B: CONFIGURING SETTINGS FOR THE SERAPH Arranging entries Arrange the phone book by Index Name , or Number either - clicking the title - choosing the option from the Edit menu - clicking the mouse´s right button. • Sort by : Rearranges the phone book permanently. -
Page 16: Seraph Settings: Calls
PART B: CONFIGURING SETTINGS FOR THE SERAPH SERAPH SETTINGS: CALLS STORING NUMBER FOR MAKING CALLS Key in the phone number for making information calls (1). Calling The name associating the number is displayed, if it is stored in the phone book and read from there (1a). For more infor- mation on storing the phone book information, see EDITING AND ADDING AN ENTRY ON PAGE 14... -
Page 17: Allowed Callers
PART B: CONFIGURING SETTINGS FOR THE SERAPH Allowed callers By checking the Answer automatically box (1a), all incoming calls will also be answered automatically. The device con- You can restrict callers if you like. You have three alternative tains a built-in microphone and speaker and after certain settings to choose from: Only listed , and... -
Page 18: Ringing (Sound Options)
PART B: CONFIGURING SETTINGS FOR THE SERAPH Ringing (sound options) ADJUSTING VOLUME You can select volume level for incoming call, information call and notification tones. Click the arrow and highlight the desired option (2). SETTING INCREASING VOLUME You can make the ringing tone increasing by checking the box. -
Page 19: Seraph Settings: Emergency
PART B: CONFIGURING SETTINGS FOR THE SERAPH SERAPH SETTINGS: EMERGENCY SERAPH SETTINGS: EMERGENCY 19... -
Page 20: Selecting Activation Method
PART B: CONFIGURING SETTINGS FOR THE SERAPH SELECTING ACTIVATION METHOD STORING EMERGENCY NUMBERS FOR REPORTS AND CALLS You can determine the way the emergency cycle will be start- The emergency reports are sent and emergency calls are made to the emergency numbers stored in the Reporting and •By pressing and holding down the BeneGuard button for calling... -
Page 21: Selecting Processing Order
PART B: CONFIGURING SETTINGS FOR THE SERAPH SELECTING PROCESSING ORDER SELECTING CALL MODE You can define order for making emergency (voice) calls To select the call mode, click the arrow (7) and highlight the and sending emergency reports while the emergency cycle desired option: Audio both ways Audio to emergency num-... -
Page 22: Setting Confirmation For Emergency Report Delivery
PART B: CONFIGURING SETTINGS FOR THE SERAPH SETTING CONFIRMATION FOR EMERGENCY SETTING CALL NUMBER MASK REPORT DELIVERY You can name the emergency cycle as you like (11). This is the way to mask the real phone number to which you are By checking the Resend unconfirmed reports box (9), you can... -
Page 23: Setting Manual Emergency Mode Termination
PART B: CONFIGURING SETTINGS FOR THE SERAPH SETTING MANUAL EMERGENCY MODE TERMINATION By leaving the check box blank, the emergency mode ends and the device returns to normal mode automatically, after going through the emergency cycle. By checking the box, emergency mode is on until it is turned off manually (14). -
Page 24: Seraph Settings: Telematics
PART B: CONFIGURING SETTINGS FOR THE SERAPH SERAPH SETTINGS: TELEMATICS 24 SERAPH SETTINGS: TELEMATICS... -
Page 25: Service Center Number
PART B: CONFIGURING SETTINGS FOR THE SERAPH Service center number AUTHORIZATION OFF If authorization is turned off (2), all requests are automati- You can change and store the phone number, which is used cally processed. for sending telematics protocol messages to the service cen- ter. -
Page 26: Message Settings
PART B: CONFIGURING SETTINGS FOR THE SERAPH Message settings MESSAGE VALIDITY You can select the length of validity for normal short mes- sages and telematics protocol messages, i.e. for how long MESSAGE RECEPTION the SMS messages are stored in the server of the operator. Select tone and volume level for incoming messages (4). -
Page 27: Seraph Settings: Power
PART B: CONFIGURING SETTINGS FOR THE SERAPH SERAPH SETTINGS: POWER • No power-off (3) - The device cannot be powered off nor- mally (by pressing ). Moreover, if the device powers off for some reason (e.g. Low battery), the device will send a protocol message to the service center. -
Page 28: Seraph Settings: Gps
PART B: CONFIGURING SETTINGS FOR THE SERAPH SERAPH SETTINGS: GPS SLEEPING TIME (IN ECONOMY MODE) As a default setting, the GPS economy mode calculates posi- tion approximately every 45 seconds. The position interval consists of two things: •An ideal sleeping time for the GPS plus •An actual time needed for searching satellites and calcu- lating position by the GPS. -
Page 29: Waypoint Tracking
PART B: CONFIGURING SETTINGS FOR THE SERAPH WAYPOINT TRACKING area in meters. The radius should be rounded to tens, otherwise the software does the rounding. E.g. by enter- ing 67, the actual radius will be rounded to 70 meters. 50 meters is the minimum value. -
Page 30: Code Settings
PART B: CONFIGURING SETTINGS FOR THE SERAPH Security code CODE SETTINGS The security code can be set to secure Waypoint tracking Automatic PIN entry and/or Seraph settings . If the setting is enabled, the code is requested each time when powering on the system (Be- The PIN code can be stored to the EEPROM of the device. -
Page 31: Part C: Operating The Seraph
PART C: OPERATING THE SERAPH Turning the device on PART C: OPERATING THE 1. To power on the device, press the upmost side key SERAPH hold it down for a few seconds. 2. The logo will be shown. USER INTERFACE 3. -
Page 32: Turning The Device Off
PART C: OPERATING THE SERAPH Turning the device off Display indicators 1. To power off the device, press the upmost side key and hold it down for a few seconds. Note that some con- EVICE IN STAND BY MODE figurations do not allow the device to be turned off nor- mally. -
Page 33: Display/Tone Notifications
PART C: OPERATING THE SERAPH Display/tone notifications ATTERY STATUS ENERAL NOTIFICATIONS The water level indicates charge left in the bat- tery. The higher the level, the more charge is left. Processing. An operation is in progress, please wait. During charging, the water level will move upwards and downwards, freezing for a quick moment to General failure. - Page 34 PART C: OPERATING THE SERAPH THER EMERGENCY CYCLE NOTIFICATIONS DISPLAYS ON TARTING EMERGENCY CYCLE NOTIFICATIONS DISPLAYS ON Emergency cancellation. Shown right Starting emergency cycle (a long press): after the emergency cycle was cancelled. Emergency tone settings are switched on. Press the BeneGuard button and hold it Emergency completion.
- Page 35 PART C: OPERATING THE SERAPH ETWORK EMERGENCY CALL Network emergency call query. Shown when the BeneGuard button is pressed but making emergency cycle is NOT possible (e.g. SIM card is missing ). OTIFICATIONS REFERRING CALLS OR MESSAGES Normal incoming call. If available, the name associated with the calling number/ the phone number itself is shown on the bottom.
-
Page 36: Incoming Calls And Messages
PART C: OPERATING THE SERAPH Incoming short messages INCOMING CALLS AND MESSAGES An incoming short message is echoed to the system connec- For incoming calls and messages tor, so that an external device can check it. •A valid SIM card must be inserted and No messages are ever stored on SIM card. -
Page 37: Remote Configuration Message
For more information on how the device responds these messages, see POSITIONING FEATURES ON PAGE 42 For more information on how to create location request messages, please see the separate document on MPTP com- mands, located at the Web site: www.benefon.com. INCOMING CALLS AND MESSAGES 37... -
Page 38: Outgoing Calls And Messages
ALLOWED CALLERS ON PAGE request, History request). For more information, see POSI- TIONING FEATURES ON PAGE 42 For more information on MPTP messages, please see the separate document on MPTP commands, located at the Web site: www.benefon.com. 38 OUTGOING CALLS AND MESSAGES... -
Page 39: Emergency Cycle
PART C: OPERATING THE SERAPH Emergency cycle Emergency cycle is started by pressing once the BeneGuard < button , located on the top of the device. The button Emergency cycle means making specific emergency call to must be pressed the way it has been configured: A long pre-configured numbers. -
Page 40: Making An Emergency Call Which Includes Both Call Numbers And Sms Numbers
PART C: OPERATING THE SERAPH MAKING AN EMERGENCY CALL WHICH CANCELLING EMERGENCY CYCLE INCLUDES BOTH CALL NUMBERS AND SMS As a sign of cancellation period, you may hear the cancella- NUMBERS tion tone. You may also see a timer indicating time left for <... -
Page 41: Ending Emergency Mode Manually
PART C: OPERATING THE SERAPH ENDING EMERGENCY MODE MANUALLY Making network emergency call Depending on configuration, the emergency cycle can be Making calls and sending messages to normal phone num- ended either automatically or manually. bers or the emergency numbers is NOT possible in these cases: Manual ending of the emergency cycle means, the emergen- cy numbers are permitted to track the device without fur-... -
Page 42: About Sending Messages
The storage capacity is 100 messages. After the device separate document on MPTP commands, located at the Web is in service again, these messages are automatically sent for- site: www.benefon.com. ward. Message type: As a default value, the message type is set to Responding location request Text messages. -
Page 43: Responding Location History Request Messages
Calculation of the position needs a separate server, available from Benefon Partners. The device cannot calcu- late the position based on network parameters by itself. POSITIONING FEATURES 43... -
Page 44: Part D: Power Management
- 900 mAh (BBL77N) The mains charger is provided with the device, but is also - 1200 mAh (BBL77P) available from the assortment of Benefon accessories. For more information on other charger types, see PART E: ACCES- - 1700 mAh (BBL77G). -
Page 45: Battery Care And Maintenance
PART D: POWER MANAGEMENT DISPOSAL OF A BATTERY The ideal temperature range for charging is +10°...+30°C. If charging the battery above or below these temperatures the Li-Ion batteries do not contain heavy metals which can dam- life of a battery may be shortened. Also, the battery may not reach full capacity. -
Page 46: Part E: Accessories
ZE5314 Carrying case (trendline) ZE2403 Standard Li-Ion battery, 1700 mAh NOTE: You will find complete and updated list of accesso- CHARGERS ries in the web site: www. benefon.com Code Part GSM ANTENNA ADAPTER ZE1106 Mains charger CMA-70-230 (EUR model) ZE1109... -
Page 47: Part F: Troubleshooting
To work in off-line, first select CALLS but the device does Benewin Pro from the Edit menu and set not arrive until tomor- Benefon Seraph to be the default Bene- Question/Problem Answer/Checkpoints row. fon mobile phone. I want to receive calls Check that... -
Page 48: Sos Query
PART F: TROUBLESHOOTING SOS QUERY Question/Problem Answer/Checkpoints Question/Problem Answer/Checkpoints What if I accidently Set emergency cycle cancellation time for Making emergency Make sure that there is a valid SIM card press the Beneguard e.g. 7 seconds. See PAGE 20 cycle does not work. inserted in the device. -
Page 49: Tracking In Emergency Mode
PART F: TROUBLESHOOTING TRACKING IN EMERGENCY MODE Question/Problem Answer/Checkpoints I am going to a sum- Remove all work numbers from the list of merhouse over the authorised numbers. See PAGE 25 weekend. I want to be Remove service center number if it is a able to make an emer- work number. -
Page 50: Part G: Important Safety Information
PART G: IMPORTANT SAFETY INFORMATION •Protect the device from heat. High temperatures may shorten the life of the electronical devices, melt or warp PART G: IMPORTANT SAFETY plastics and damage batteries. Do not warm up the device INFORMATION or battery or use it near fire. •Do not short-circuit the battery. -
Page 51: Safety And Precautions
PART G: IMPORTANT SAFETY INFORMATION SAFETY AND PRECAUTIONS The Global Positioning System (GPS) is operated by the gov- Telematics protocol ernment of the United States, which is solely responsible for its accuracy and maintenance. The system is subject to MPTP (Mobile Phone Telematic Protocol) allows, among changes that could affect the accuracy and performance of other things, tracking of the device over the SMS communi- all GPS equipment. -
Page 52: General
PART G: IMPORTANT SAFETY INFORMATION General •Other accessories: Any other accessories used should also be approved by the device manufacturer. Check the •Traffic: Strictly adhere to all eventual European and compatibility of new power supply units and other acces- national legislation and also honour other eventual safety sories at the dealer or manufacturer. -
Page 53: Radio Frequency (Rf) Energy
PART G: IMPORTANT SAFETY INFORMATION Radio frequency (RF) energy ical plants or where blasting operations are in progress because remote control RF devices are often used to set •Aircrafts: Turn your device off before boarding any air- off explosives. Do not store or carry flammable liquids, craft and do not use the device while in the air. -
Page 54: Benefon Warranty
Benefon during the warranty period. cidental, punitive or consequential damages, or loss of use. BENEFON warrants its products to be free of defects in ma- terial or workmanship when leaving the factory. If a defect is found during the given warranty period, the customer... -
Page 55: Appendix
Short description Waypoint activation/deactivation/deletion Status information (Power msgs/notifications) Arrival/departure to waypoint (Alarm message) SW-versions and IMEI-number request/reply ASSISTANCE MESSAGES Information message (Power failures) Command Short description Assistance call (Information call/Position report) LIST OF MPTP COMMANDS AVAILABLE FOR BENEFON SERAPH 55... - Page 56 APPENDIX 56 LIST OF MPTP COMMANDS AVAILABLE FOR BENEFON SERAPH...
