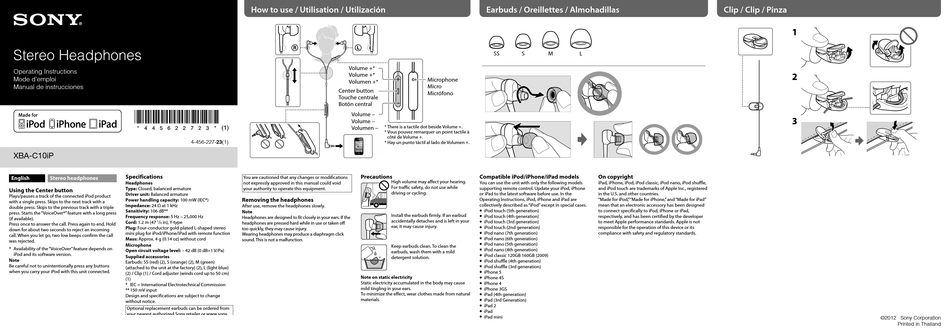

Sony XBA-C10iP Operating Instructions

Stereo Headphones
Operating Instructions
Mode d'emploi
Manual de instrucciones
XBA-C10iP

Specifications

English Stereo headphones
Headphones
Type: Closed, balanced armature

Using the Center button

Driver unit: Balanced armature
Plays/pauses a track of the connected iPod product
Power handling capacity: 100 mW (IEC*)
with a single press. Skips to the next track with a
Impedance: 24 Ω at 1 kHz
double press. Skips to the previous track with a triple
Sensitivity: 106 dB**
press. Starts the "VoiceOver*" feature with a long press
Frequency response: 5 Hz – 25,000 Hz
(if available).
Cord: 1.2 m (47 1 / in), Y-type
Press once to answer the call. Press again to end. Hold 4
Plug: Four-conductor gold-plated L-shaped stereo
down for about two seconds to reject an incoming
mini plug for iPod/iPhone/iPad with remote function
call. When you let go, two low beeps confirm the call
Mass: Approx. 4 g (0.14 oz) without cord
was rejected.
Microphone
* Availability of the "VoiceOver" feature depends on
Open circuit voltage level: – 42 dB (0 dB=1 V/Pa)
iPod and its software version.
Supplied accessories
Note
Earbuds: SS (red) (2), S (orange) (2), M (green)
Be careful not to unintentionally press any buttons
(attached to the unit at the factory) (2), L (light blue)
when you carry your iPod with this unit connected.
(2) / Clip (1) / Cord adjuster (winds cord up to 50 cm)
(1)
* IEC = International Electrotechnical Commission
** 150 mV input
Design and specifications are subject to change
without notice.
Optional replacement earbuds can be ordered from
your nearest authorized Sony retailer or www.sony.
com.
How to use / Utilisation / Utilización
Volume +*
Volume +*
Volumen +*
Center button
Touche centrale
Botón central
Volume –
Volume –
Volumen –
4-456-227-23(1)

Precautions

You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.

Removing the headphones

After use, remove the headphones slowly.
Note
Headphones are designed to fit closely in your ears. If the
headphones are pressed hard while in use or taken off
too quickly, they may cause injury.
Wearing headphones may produce a diaphragm click
sound. This is not a malfunction.
Note on static electricity
Static electricity accumulated in the body may cause
mild tingling in your ears.
To minimize the effect, wear clothes made from natural
materials.
Earbuds / Oreillettes / Almohadillas
SS S M
Microphone
Micro
Micrófono
* There is a tactile dot beside Volume +.
* Vous pouvez remarquer un point tactile à
côté de Volume +.
* Hay un punto táctil al lado de Volumen +.

Compatible iPod/iPhone/iPad models

High volume may affect your hearing.
You can use the unit with only the following models
For traffic safety, do not use while
supporting remote control. Update your iPod, iPhone
driving or cycling.
or iPad to the latest software before use. In the
Operating Instructions, iPod, iPhone and iPad are
collectively described as "iPod" except in special cases.
 iPod touch (5th generation)
Install the earbuds firmly. If an earbud
 iPod touch (4th generation)
accidentally detaches and is left in your
 iPod touch (3rd generation)
ear, it may cause injury.
 iPod touch (2nd generation)
 iPod nano (7th generation)
 iPod nano (6th generation)
 iPod nano (5th generation)
Keep earbuds clean. To clean the
 iPod nano (4th generation)
earbuds, wash them with a mild
 iPod classic 120GB 160GB (2009)
detergent solution.
 iPod shuffle (4th generation)
 iPod shuffle (3rd generation)
 iPhone 5
 iPhone 4S
 iPhone 4
 iPhone 3GS
 iPad (4th generation)
 iPad (3rd Generation)
 iPad 2
 iPad
 iPad mini
Clip / Clip / Pinza
L

On copyright

iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle,
and iPod touch are trademarks of Apple Inc., registered
in the U.S. and other countries.
"Made for iPod, " "Made for iPhone, " and "Made for iPad"
mean that an electronic accessory has been designed
to connect specifically to iPod, iPhone or iPad,
respectively, and has been certified by the developer
to meet Apple performance standards. Apple is not
responsible for the operation of this device or its
compliance with safety and regulatory standards.
©2012 Sony Corporation
Printed in Thailand
