BIG BEN – User's Guide

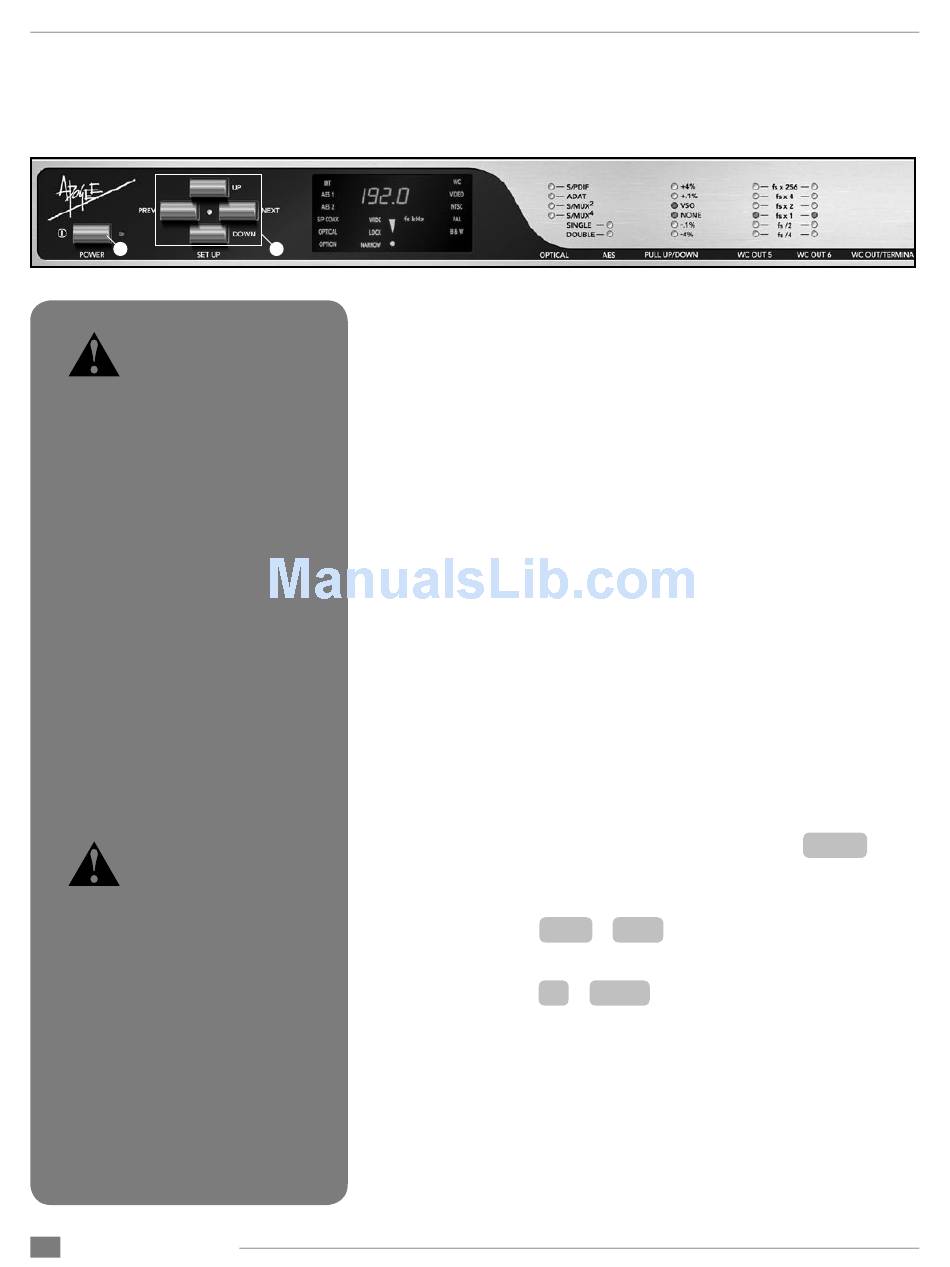

Navigating the Front Panel

1
It's Got a Mind of Its Own!
As Big Ben's settings are modi-
fied, certain parameters and
values become unavailable for selec-
tion, while others seem to change all by
themselves! In fact, Big Ben intelligently
modifies many settings according to the
configuration of the unit. For example,
when an external CLOCK SOURCE is
selected, SAMPLE RATE can't be modi-
fied, as its value is determined from the
selected CLOCK SOURCE. As another
example, the VSO value may be selected
only when CLOCK SOURCE is set to
INTernal.
Keep in mind that before
modification of any Big Ben
setting, SETUP mode must
be enabled.
4
APOGEE ELECTRONICS
2
1) Power Switch – Every aspect of Big Ben has been carefully
thought out – even the Power Switch! Three configurations, set with
internal jumpers, are available:
1) Big Ben is powered on in the expected manner, by pushing the

Power Switch;

2) Big Ben powers on automatically when AC input is applied, but
the Power Switch is still functional;
3) the Power Switch is completely disabled.
Please see the section on "Internal Adjustments" for instructions
on changing the Power Switch mode.
Note that the Power Switch LED indicates that Big Ben is receiv-
ing a proper AC input, and is in Standby mode. The LED goes
out when Big Ben is powered on.
2) Set-Up buttons and LED – These buttons are used to modify
all settings on Big Ben. In general, setting modification requires 4
steps: enabling Setup mode, choosing the parameter to be modified;
choosing the desired value and disabling Setup mode.
1) Enable Setup mode by simply pressing any of the SETUP but-
tons. The SETUP LED will illuminate and the value selected the
previous time SETUP mode was enabled will blink.
2) Press either the PREV or NEXT buttons until the current value of
the parameter to be modified is blinking.
3) Press either the UP or DOWN buttons until the desired value is
blinking.
4) If no buttons are pushed for 2 seconds, Setup mode is disabled
automatically, and the value which was blinking will now illumi-
nate solidly. All settings (except some VSO settings) are saved in
non-volatile memory, and will be recalled the next time Big Ben is
powered up.
