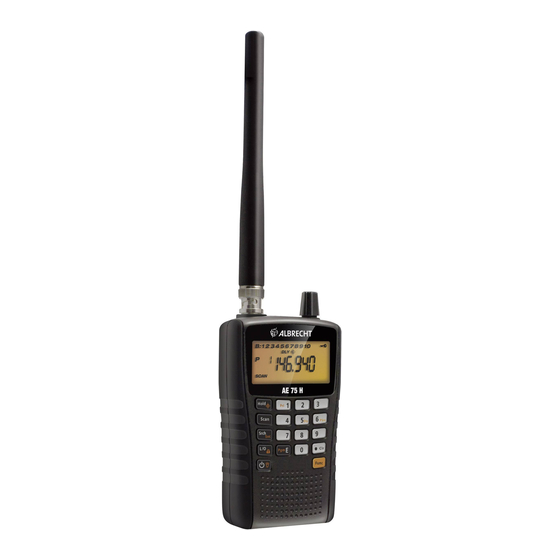

Albrecht AE75H Owner's Manual

50-channel portable scanner
Hide thumbs Also See for AE75H:
Table of Contents

Advertisement

Quick Links

See also: User Manual
AE75H OWNER'S MANUAL
OWNER'S MANUAL
AE75H
50-Channel Portable Scanner
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE75H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Albrecht AE75H

Summary of Contents for Albrecht AE75H

  • Page 1 AE75H OWNER’S MANUAL OWNER’S MANUAL AE75H 50-Channel Portable Scanner...
  • Page 2 AE75H OWNER’S MANUAL FEATURES Your new Albrecht AE75H 50-Channel Portable Scanner gives you direct access to over 22,000 exciting frequencies, including police and fire departments, ambulance services, and amateur radio services. You can select up to 50 channels to scan, and you can change your selection at any time.

  • Page 3: Power Sources

    AE75H OWNER’S MANUAL PREPARATION POWER SOURCES You can power your scanner from any of four sources: Internal batteries (not supplied) with the provided battery holder A rechargeable scanner battery pack (not supplied) Standard AC power (using an optional AC adapter) Vehicle battery power (using an optional DC cigarette-lighter adapter) You can power your scanner from six AA batteries.

  • Page 4: Connecting The Antenna

    AE75H OWNER’S MANUAL specifications could damage the scanner or the adapter. When you finish using the AC adapter, disconnect it from the AC outlet first. Then disconnect it from the scanner. Plug the adapter’s barrel plug into the scanner’s PWR jack. Then plug the adapter’s power module into a standard AC outlet.

  • Page 5: Using The Belt Clip

    AE75H OWNER’S MANUAL Follow the installation instructions supplied with the antenna, route the antenna cable to the scanner, then connect it to the ANT jack. Warning: Use extreme caution when installing or removing an outdoor base station antenna. If the antenna starts to fall, let it go! It could contact overhead power lines, if the antenna touches a power line, contact with the antenna, mast, cable or guy wires can cause electrocution and death! Call the power company to remove the antenna.

  • Page 6: A Look At The Display

    AE75H OWNER’S MANUAL CLEAR – clears an incorrect entry. PGM – lets you program frequencies into channels. Number Keys – use these keys to enter the numbers for a channel or frequency. DLY/. (delay/decimal point) – programs a 2-second delay for the selected channel, or enters a decimal point (necessary when programming frequencies).

  • Page 7: Storing Active Frequencies

    AE75H OWNER’S MANUAL 410-430 430-440 70-cm Amateur Radio 440-450 450-470 You can search these bands to quickly find active frequencies you might want to store into the scanner’s channels. For example, if you wanted to search for transmissions between amateur radio operators, you could search only the search bands where you are most likely to hear the transmissions (Bands 4, and 7).
  • Page 8 AE75H OWNER’S MANUAL Notes: If you entered an invalid frequency in Step 3, Error appears, the channel number flashes, and the scanner beeps three times after you press E. Simply repeat Steps 3 and 4. Your scanner automatically rounds the entered frequency down to the nearest valid frequency. For example, if you enter a frequency of 151.4730, your scanner accepts it as 151.4700.
  • Page 9 AE75H OWNER’S MANUAL 4. To continue the search, hold down up or down-key for about 1 second. MOVING A FREQUENCY FROM THE MONITOR MEMORY TO A CHANNEL 1. Press MANUAL, enter the channel number where you want to store the frequency, then press PGM. PGM, the frequency number or 000.0000, and the selected channel number appear.

  • Page 10: Locking Out A Channel

    AE75H OWNER’S MANUAL SPECIAL FEATURES DELAY Many agencies use a two-way radio system that might have a pause of several seconds between a query and a reply. To avoid missing a reply, you can program a 2-seocnd delay into any of your scanner’s channels.

  • Page 11: Specified Intervals

    AE75H OWNER’S MANUAL GENERAL GUIDE TO SCANNING BIRDIE FREQUENCIES Every scanner has birdie frequencies. Birdies are signals created inside the scanner’s receiver. These operating frequencies might interfere with broadcasts on the same frequencies. If you program one of these frequencies, you hear only noise on that frequency. If the interference is not severe, you might be able to turn SQUELCH clockwise to cut out the birdie.

  • Page 12: Troubleshooting

    AE75H OWNER’S MANUAL TROUBLESHOOTING If your scanner is not working as it should, these suggestions might help you eliminate the problem. If the scanner still does not operate properly, take it to your local store for assistance. Problem Possible Causes Remedies ------------------------------------------------------------------------------------------------------------------------- The scanner...

  • Page 13: Care And Maintenance

    AE75H OWNER’S MANUAL RESETING/INITIALIZING THE SCANNER If the scanner’s display locks up or does not work properly after you connect a power source, you might need to reset or initialize it. Important: If you have problems, first try to reset the scanner. If that does not work, you can initialize the scanner, however, initializing clears all frequencies you stored in the scanner’s memory and initialilzes the scanner to its default settings.

  • Page 14: Specifications

    9 V DC, 6 AA batteries AC adapter/DC adapter (9V, 200 mA) Current Drain (Squelched) 50 mA Dimensions 171 (H) x 59 (W) x 40 (D) mm Weight 240 g without antenna and batteries Supplied Accessory Antenna © 1998 ALBRECHT ELECTRONIC GmbH...
