Summary of Contents for Akura ABLDVD3220W-HDID

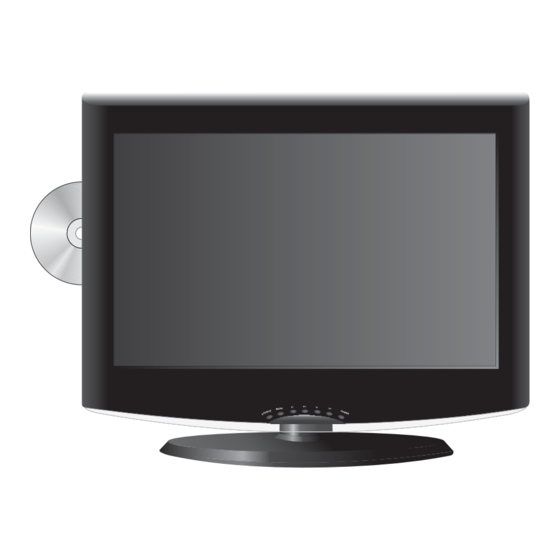

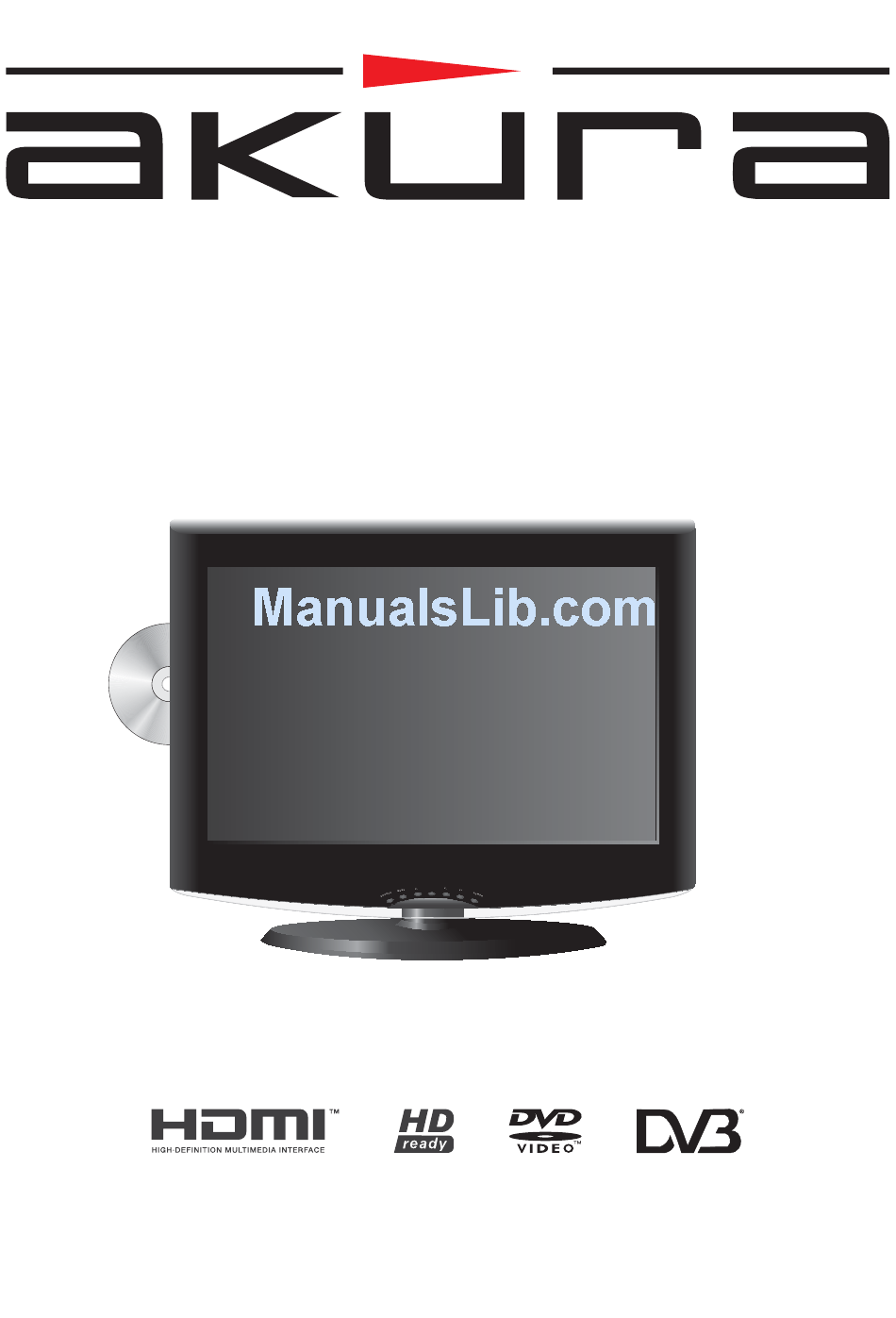

- Page 1 Model : ABLDVD3220W-HDID 32" Digital LCD TV with DVD DVBt "Freeview" HDMI USER'S MANUAL Customer Helpline: 01422 26 33 13 Website: www.ekey.co.uk...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION SAFETY PRECAUTIONS ACCESSORIES FRONT CONTROLS AND REAR CONNECTIONS MAINS LEAD onnection ANTENNA connection HDMI onnection PC connection TV INSTALLATION S-VIDEO connection CONNECTIONS Y,Pb,Pr onnection SCART onnection AV Connection CAM (Conditional Access Module) SERVICE PORT REMOTE CONTROL INSTRUCTIONS in TV mode EMOTE CONTROL INSTRUCTIONS in DTV mode REMOTE CONTROL... - Page 3 Basic operation Digital audio/jpeg playback Function settings System setup Screen saver OPERATION Password Rating Language setup Audio setup Audio compression setup TROUBLESHOOTING AND ADVICE DISC CARE Useful Information SPECIFICATIONS Wall Mounting...
- Page 4 1 : Safety Information Thank you for purchasing this state of the art TV and DVD. Please carefully read this manual before installing and using the tv. Keep this manual handy for future reference. If the tv is damaged in transit do not attempt to use it, but contact the supplier immediately.
- Page 5 2: Safety Precautions Unpacking and Handling. Open the carton carefully and remove the top polyfoam packing. Carefully lift the Tv (2 persons) and place onto a firm stable surface. Lift off the Poly bag and retain all packaging for future use. Keep all packaging away from small children and animals.
-
Page 6: Remote Control
3 : Accessories POWER MUTE SOURCE PMODE SMODE AUDIO SLEEP I/II PROGRAM LIST TV MENU EXIT TEXT DISPLAY GOTO INFO ENTER DVD SETUP ANGLE REPEAT SUBTITLE HOLD SIZE REVEAL D.DIS INDEX SUBPAGE D.MENU ZOOM TV/RADIO LCD TV SET Remote Control Model : ABLDVD3220W-HDID 32"... - Page 7 4 : Front Controls and Rear Connections 1. Power. Switches Tv from Standby to operate and back to standby. 2. V+/V- Increases and Decreases volume level. 3. P+/P-. Selects TV channels up and down. 4. Menu. Selects operational menu’s 5. Source. Selects input source 6 Led Indicator.
-
Page 8: Antenna Connection
5 : Tv Installation Connections Mains lead Connection Connect the Mains lead as shown. Press the POWER switch to turn the Tv on. The LED will change from Red to Green. S-VIDEO RF IN AC IN Antennas Connection Insert the Tv Antenna plug into the rear of the Tv as shown. For best results an external (outdoor) antenna is recommended. -
Page 9: Hdmi C Onnection
HDMI Connection HDMI2 HDMI1 PC IN HDMI2 HDMI1 PC IN TV Back TV Back HDMI Cable HDMI Cable HDMI OUT HDMI OUT DVD or VCR Back DVD or VCR Back DVD or VCR DVD or VCR Connect HDMI output from DVD/VCR or X box or similar to the tv and use the “SOURCE” button to select HDMI 1 or 2. -
Page 10: S-Video Connection
S-VIDEO Connection S-VIDEO RF IN VIDEO TV Back Audio Cable S-VIDEO Cable AUDIO DVD or VCR Back DVD or VCR Connect the S_VIDEO output of the DVD, VCR or other item, to the S-VIDEO input on the tv. The picture quality will be improved compared with SCART or AV input. Connect the Audio output of the DVD, VCR or other item to the Audio input sockets on the tv using a stereo RCA cable (not supplied). -
Page 11: Av Connection
SCART Connection CI PORT CI PORT SCART1 SCART2 SCART1 SCART2 AUDIO AUDIO TV Back TV Back Scart cable Scart cable DVD or VCR Back DVD or VCR Back DVD or VCR DVD or VCR Connect the SCART connector to the external video item and the SCART connector on the tv. (lead not supplied). -
Page 12: Cam (Conditional Access Module)
CAM (Conditional Access Module) Fig1 Using a CAM (Conditional Access Module) (CI Slot). This feature allows the user to access digital terrestrial “pay per view” channels. To use the facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company. -
Page 13: Remote Control Instructions In Tv Mode
6 REMOTE CONTROL Remote control instructions in TV mode POWER Turns Tv on and back to Standby MUTE Press to mute the sound. Press again or press V+ to un-mute the TV. POWER MUTE SOURCE SOURCE Press to display SOURCE Menu. Press ▼/▲to select PMODE SMODE AUDIO... -
Page 14: R Emote Control Instructions In Dtv Mode
Remote control instructions in DTV mode POWER MUTE SOURCE PMODE SMODE AUDIO SLEEP I/II AUDIO To display audio menu. PROGRAM LIST LIST P ress to display the DTV program list. TV MENU EXIT TEXT DISPLAY INFO GOTO INFO Shows information about the current channel ENTER COLOR BUTTONS... -
Page 15: Number Buttons
Remote control instructions in TELETEXT mode POWER MUTE SOURCE PMODE SMODE AUDIO SLEEP I/II NUMBER BUTTONS Press 0-9 to select a teletext page. PROGRAM TEXT LIST Press to switch between TV and Teletext mode or DTV and Teletext mode. TV MENU EXIT TEXT DISPLAY... -
Page 16: Remote Control Instructions In Dvd Mode
Remote control instructions in DVD mode AUDIO(I/II) AUDIO selection buttons in DVD mode. POWER MUTE SOURCE NUMBER BUTTONS Numerical buttons for various data. PMODE SMODE AUDIO SLEEP I/II PROGRAM Program a disc playing in a desired sequence. GOTO It is possible to get access to any point on the directly using the ‘GOTO’... -
Page 17: Remote Control Setup
Remote control setup 1. Open the battery cover 2. Fit two “AAA” batteries (Not supplied). Ensure the battery polarities are correct i.e + to + and – to -. 3. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not place in the domestic waste, consult your local waste disposal company. -
Page 18: Auto Tuning
7 MENU OPERATION CHANNEL Menu CHANNEL Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information EXIT MENU Press ▲/▼to select the item required and ►or OK to confirm . Press MENU to return to a previous menu . Press EXIT to exit the menu’s . -
Page 19: Dtv Manual Tuning
DTV Manual Tuning DTV Manual Tuning UHF CH Please select channel then Press OK to search NO SIGNAL Normal Good EXIT MENU Press ◄► to select the channel, then OK to search. ATV Manual Tuning ATV Manual Tuning Storage TO "... -
Page 20: Program Edit
To Store. Press ◄/►to select the channel number you want to save to. System. Press ◄/►to select the sound system. In the UK it is “I”, Western Europe “B/G”, Eastern Europe “D/K”. Parts of France “L” or “LL”. Current Channel. Press ◄/►to select the current channel number. -
Page 21: Picture Menu
Rename. Press ▲/▼to select the channel you want to rename. Press (Green) “Rename” to mark the selected channel. Press ◄/►to select the position in the word, then press ▲/▼to select the letter or number required. To exit, press EXIT or wait for the menu to “time out”. Move. -
Page 22: Sound Menu
Sharpness Press ◄►to adjust the sharpness. Color Temperature Press◄► to select Color Temperature. Cool User Warm Medium Aspect Ratio Press ◄► to select Aspect Ratio. Zoom1, Zoom2, Auto 4:3,16:9. Noise Reduction Press ◄► to turn On or Off the Noise Reduction. Screen ( Only available in PC mode). -
Page 23: Time Menu
Press MENU to display the menu, press ◄► to select the SOUND menu , Press ▼ to enter the submenu. Press MENU to return to the main menu from the submenu. Sound Mode Press ◄► to select sound mode. Music, Movie, Sport, User , Standard Press OK t... -
Page 24: Option Menu
Clock ▲ ▼◄► Press ► to select Date, Month, Year, Hour and Minute, press to set the time. Off time This is a “Stand alone” function. It will not work in conjunction with the “On Time” setting. Press ► ▲▼ ▲▼... -
Page 25: Lock Menu
LOCK menu LOCK Lock Channel Set Password Block Program Parental Guidance EXIT MENU Press MENU to display the menu,press ◄► to select the LOCK menu, press▼ the default password is "0000", and ▲▼ to enter the submenu. Press MENU to return to the main menu from the submenu. Lock Channel Press ◄►... -
Page 26: Fast Channel List
Fast Channel List Channel List BBC 1 BBC 2 Channel4 EXIT Press List button to enter into Channel List menu directly. INPUT SOURCE Press SOURCE to display the input source, press ▲▼to select the main source , and then press OK to confirm. Input Source SCART1 SCART2... -
Page 27: Basic Operation
DVD Operation Basic operation 1. Select DVD. Turn on the TV and press the SOURCE button and then the ▲/ ▼to select DVD. Press OK to confirm. 2. Playing discs. 2. Playing discs. Insert the disc with the label facing AWAY from you. The disc will either automatically start to play, or will display a menu. -
Page 28: Function Settings
Function Settings DVD Function General setup TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING POWER RESUME SOURCE DEFAULT - Press the DVD SETUP button to activate the player OSD menu; - Press ▲ / ▼ buttons to move and highlight between different sub-menus. Press ◄... -
Page 29: Screen Saver
SCREEN SAVER If the screen saver option is on, when your DVD player is in Stop, Open, or No Disc state, or there is a frame frozen for more than 60sec, the screen saver will be displayed. This feature can protect the screen from damage. ON: Choose this setting to activate the screen saver. -
Page 30: Rating
TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING POWER RESUME SOURCE DEFAULT RATING You can select the rating setting according to your preference. Rating restriction is divided into eight different category from KID SAFE to ADULT. NOTE: Only editable when password is unlocked. 1 KID SAFE TV SYSTEM TV SYSTEM... -
Page 31: Language Setup
Language Setup Press DVD SETUP button to enter the menu. - OSD Language OSD LANGUAGE ENGLISH Use navigation buttons to select the OSD LANGUAGE setup AUDIO LANG GERMAN icon, press ENTER button to confirm. There are 8 languages SPANISH SUBTITLE LANG for your selection, press ▲... -
Page 32: Audio Setup
MENU LANGUAGE OSD LANGUAGE ENGLISH GERMAN AUDIO LANG - Use navigation buttons to select the MENU LANG setup icon, SPANISH SUBTITLE LANG press ENTER button to confirm. There are 8 languages for you FRENCH selection, press ▲ & ▼ buttons to toggle between different MENU LANG PORTUGUESE L a n g u a g e s . -
Page 33: Audio Compression Setup
Audio compression setup DYNAMIC RANGE FULL DYNAMIC RANGE - Switch the compress mode to “Audio output” to adjust the DUAL MONO compress ratio for different effects. When selected FULL, the peak signal value is smallest. When selected OFF, the peak signal value is largest. - Page 34 9 : TROUBLESHOOTING AND ADVICE Should the TV stop working or work abnormally. Please consult the guide below, before calling the customer help line. Symptom Remedy Possible cause Check DC connection to TV Check connection Power not connected Dead. No led lit to mains supply an that the supply is turned on.
-
Page 35: Disc Care
10 DISC CARE About Disc Terms Title Generally, pictures or music compressed on a DVD are divided into several sections,”title” Chapter The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching, but some discs may not have a recording chapter. -
Page 36: Service Port
(not supplied).To remove the TV base, unscrew the 4 screws in Fig 1 and slide the base away from the Tv. Mount the bracket using the manufacturers instructions. Do NOT use mounting screws longer than 16mm.Fit the wall bracket securely following the manufacturers instructions.Akura or it agents accept no responsibility for damage caused by faulty bracket installation. - Page 37 13 SPECIFICATIONS Screen size 31.4” (79.7 cm) Display type TFT LCD Resolution (Pixels) 1366 x 768 Aspect Ratio 16 X 9 Mains supply 100-240V AC 50.60Hz 0.77A (185W Max) TV System PAL / SECAM TV antenna input 75 Ohms Audio Output L/R 2 x 8W Tuning Range (Analog) Ch2 –...
