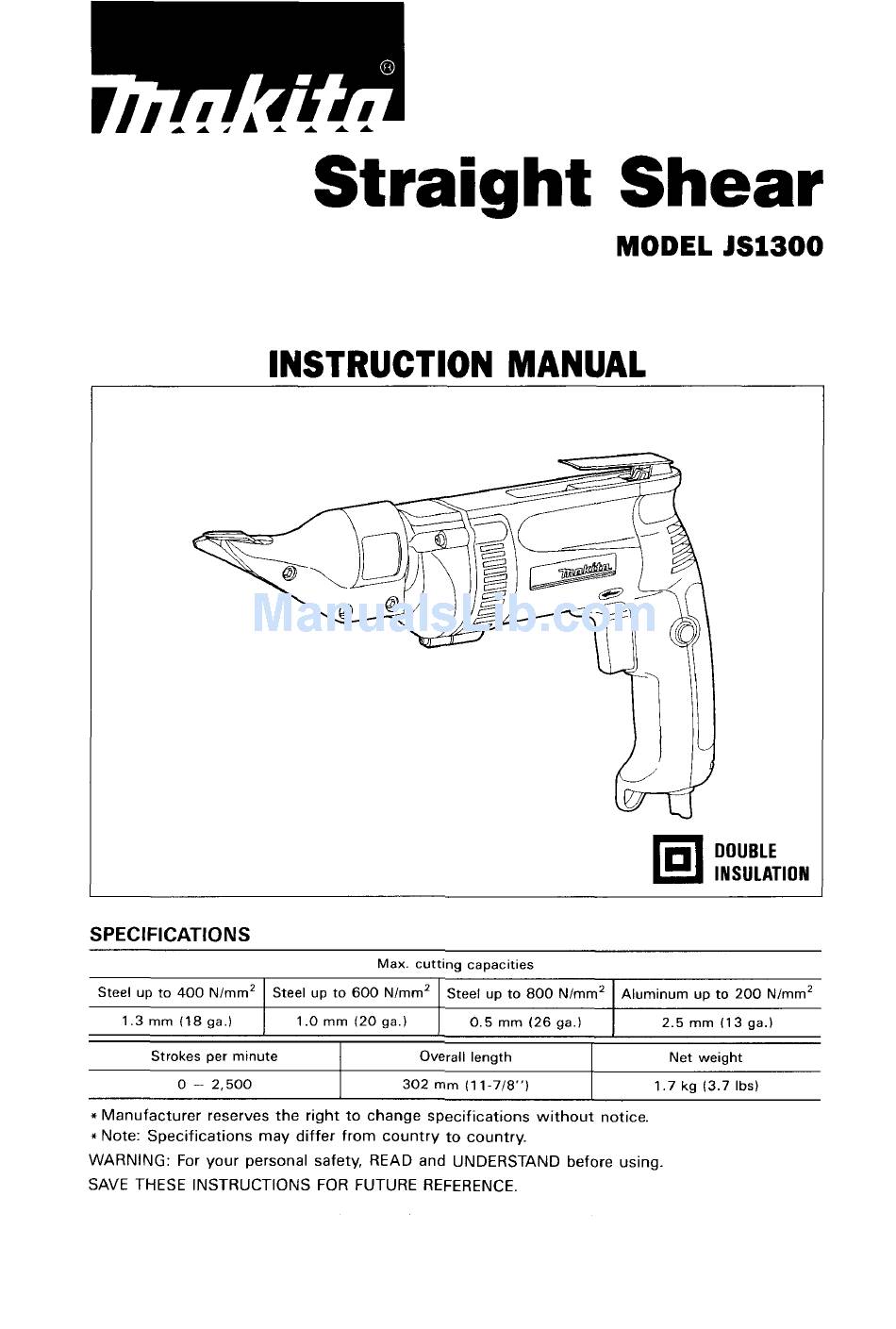

Straight Shear
Steel up
to
400 N/mmz
1.3 mm (18 ga.)
MODEL JS1300
Steel up to 600 Nlmm'
1
.O
mm (20 ga.)
Steel up to 800 N/mm2
0.5 mm (26 ga.)
Aluminum up
to
200 N/mmz
2.5 mm 113 ga.)
INSTRUCTION MANUAL
Strokes per minute
0
-
2,500
Overall length
Net weight
302 mm (1 1-718")
1.7 kg (3.7 Ibs)
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the JS1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Makita JS1300

Summary of Contents for Makita JS1300

  • Page 1 Straight Shear MODEL JS1300 INSTRUCTION MANUAL Steel up 400 N/mmz Steel up to 600 Nlmm' Steel up to 800 N/mm2 Aluminum up 200 N/mmz 1.3 mm (18 ga.) mm (20 ga.) 0.5 mm (26 ga.) 2.5 mm 113 ga.) Strokes per minute Overall length Net weight 2,500...

  • Page 2: General Safety Rules

    GENERAL SAFETY RULES USA002-1 (For All Tools) WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS Work Area 1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
  • Page 3 11. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents. Remove adjusting keys or wrenches before turning the tool on. wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

  • Page 4: Specific Safety Rules

    Specific Safety Rules USE01 1 ~ 2 1. Hold the tool firmly. Secure the workpiece firmly. Keep hands away from moving parts. 4. Edges and chips of the workpiece are sharp. Wear gloves. It is also recom- mended that you put on thickly bottomed shoes t o prevent injury. 5.

  • Page 5: Functional Description

    FUNCTIONAL DESCRIPTION Switch action CAUTION: Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released Switch trigger Hook The hook is convenient for temporary hanging the tool. When using the hook, pull it out in "A"...
  • Page 6 ASSEMBLY Replacement of blades CAUTION: *Always be sure that the tool is switched off and unplugged before replacement of the blades. Never remove the blades with bare hands. Wear gloves. Otherwise it can cause injury. Removing cutting head Use the hex wrench to loosen the three Cutting head screws which secure the cutting head.

  • Page 7: Operation

    Installing cutting head CAUTION: Secure the cutting head firmly. Otherwise it can rotate during operation and can cause serious injury. Insert the cutting head into the tool with turning it left and right alternately. Then tighten the three screws with the hex Cutting head wrench.
  • Page 8 Side blade R Center blade To maintain product SAFETY and reliability, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita placement parts.
  • Page 9 ACCESSORIES CAUTION These accessories or attachments are recommended for use with your Makita tool specified in this manual The use of any other accessories or attachments might present a risk of injury to persons The accessories or attachments should be used only in the proper and intended manner...
  • Page 11 INC. 2023.25.26.44 INSULATION WASHER BALL BEARING 607LLB RUBBER RING 19 BAFFLEPLATE TAPPING SCREW 4x55 FIELD HOOK MOTOR HOUSING MAKITA LABEL NAME PLATE JS1300 BRUSHHOLDER CARBON BRUSH CB-407 POWER SUPPLY CORD CORD GUARD 8 STRAIN RELIEF TAPPING SCREW 4x18 SWITCH HANDLE COVER COMPLETE...
