Rear panel connection

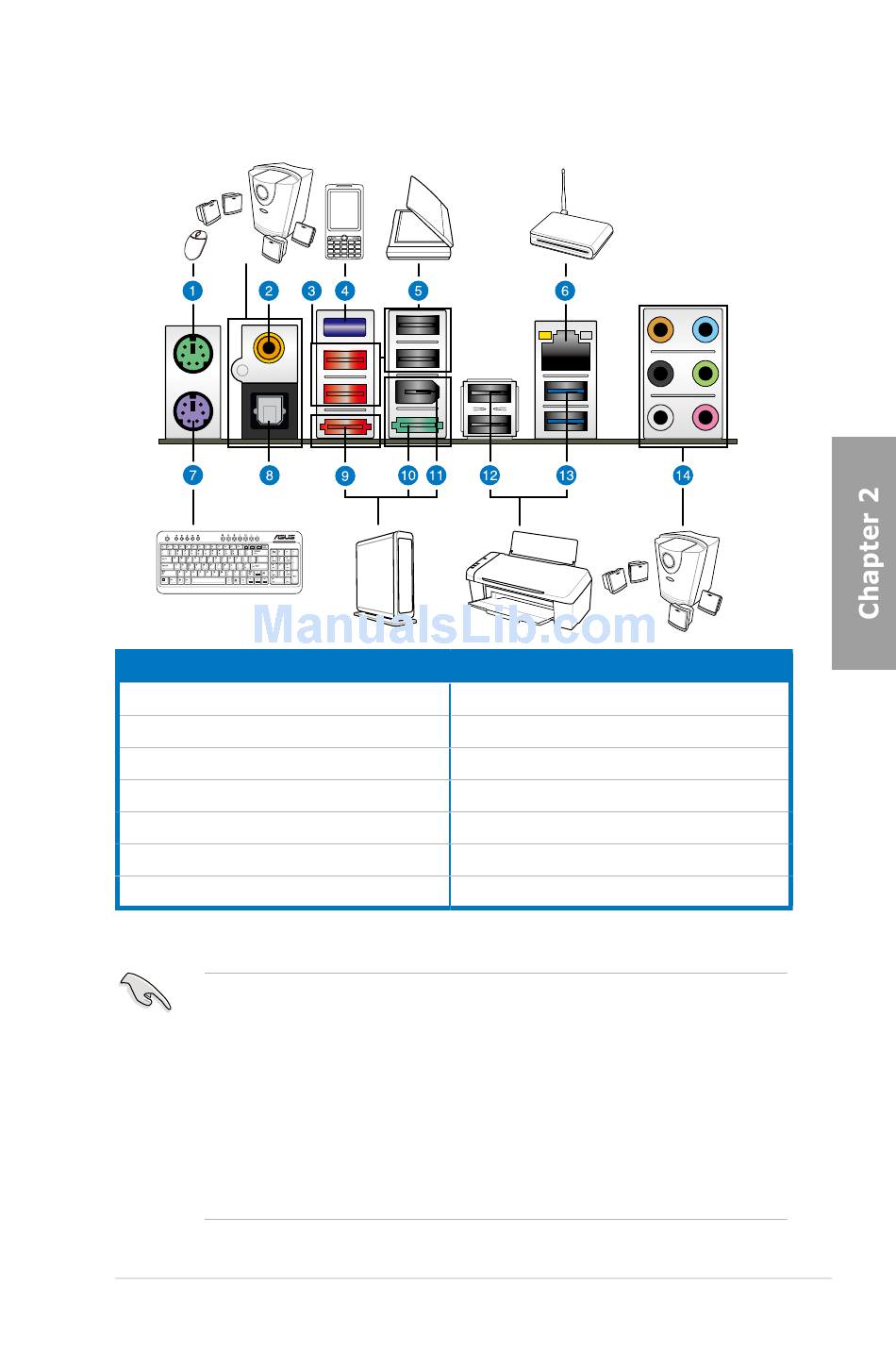

Rear panel connectors
1. PS/2 mouse port
2. Coaxial S/PDIF Out port
3. USB 2.0 ports 5 and 6
4. Bluetooth module*
5. USB 2.0 ports 3 and 4
6. Intel LAN (RJ-45) port 1**
7. PS/2 keyboard port
*, ** and ***: Refer to the tables on the next page for bluetooth module LED, LAN port LED, and
audio port definitions.
• DO NOT insert a different connector to the external SATA port.
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under
Windows® OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
• If you want to use the hot-plug function of the external SATA ports, you have to set the
JMB Storage Controller item in the BIOS setting to [Enabled] and install the JMicron
JMB36X Controller Driver from the motherboard support DVD. Refer to section 3.5.6
Onboard Devices Configuration for details.
ASUS P8P67 PRO REV 3.1
8. Optical S/PDIF Out port
9. External SATA port
10. Power External SATA port
11. IEEE 1394a port
12. USB 2.0 ports 1 and 2
13. USB 3.0 ports 1 and 2
14. Audio I/O ports***
