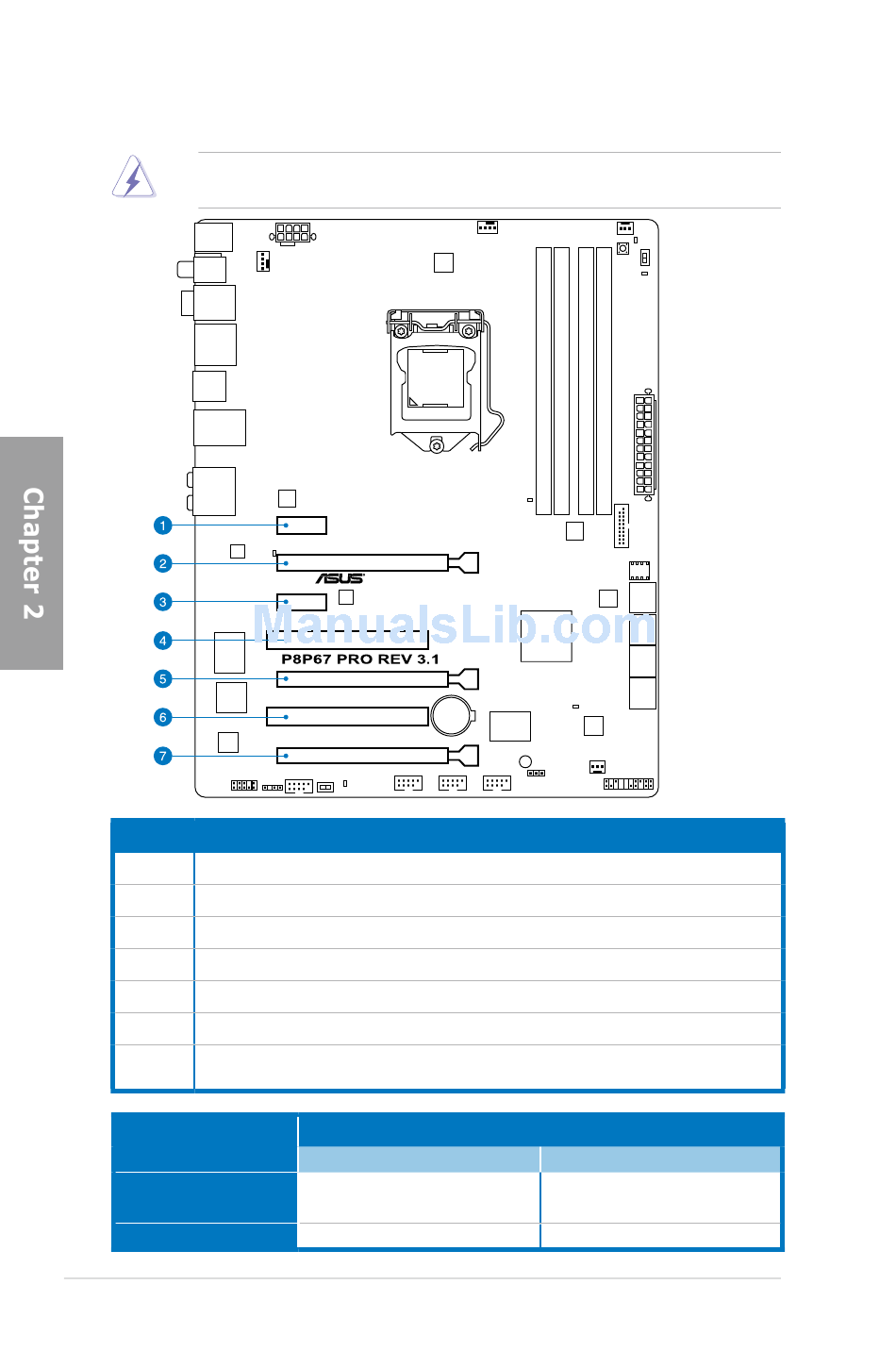

Expansion slots

Ensure to unplug the power cord before adding or removing expansion cards. Failure to do
so may cause you physical injury and damage motherboard components.
Slot No. Slot Description
1 PCIe 2.0 x1_1 slot
2 PCIe 2.0 x16_1 slot (single at x16 or dual at x8/x8 mode)
3 PCIe 2.0 x1_2 slot
4 PCI slot 1
5 PCIe 2.0 x16_2 slot [grey] (at x8 mode)
6 PCI slot 2
PCIe 2.0 x16_3 slot [black] (at x4 mode, compatible with PCIe x1 and x4
7
devices)
VGA configuration
Single VGA/PCIe card
Dual VGA/PCIe card
2-14
PCI Express operating mode
PCIe 2.0 x16_1
x16
(Recommend for single VGA)
x8
PCIe 2.0 x16_2
N/A
x8
Chapter 2: Hardware information
