PLC-XU305A/355A Basic Serial Command Specifications

1. Overview

1.1. These specifications define projector control commands for PLC-XU305A/355A.
1.2. The projector control commands are used to remotely control a projector through RS-232C from a
computer.

2. Serial Interface Specifications

2.1. Transfer Specifications

Item
Synchronous system
Transmission Speed
Data Length
Parity
Stop Bit
Flow Control
1) Transmission speed: initial setting value is 19200.
2) Transmission speed can be changed in service mode.

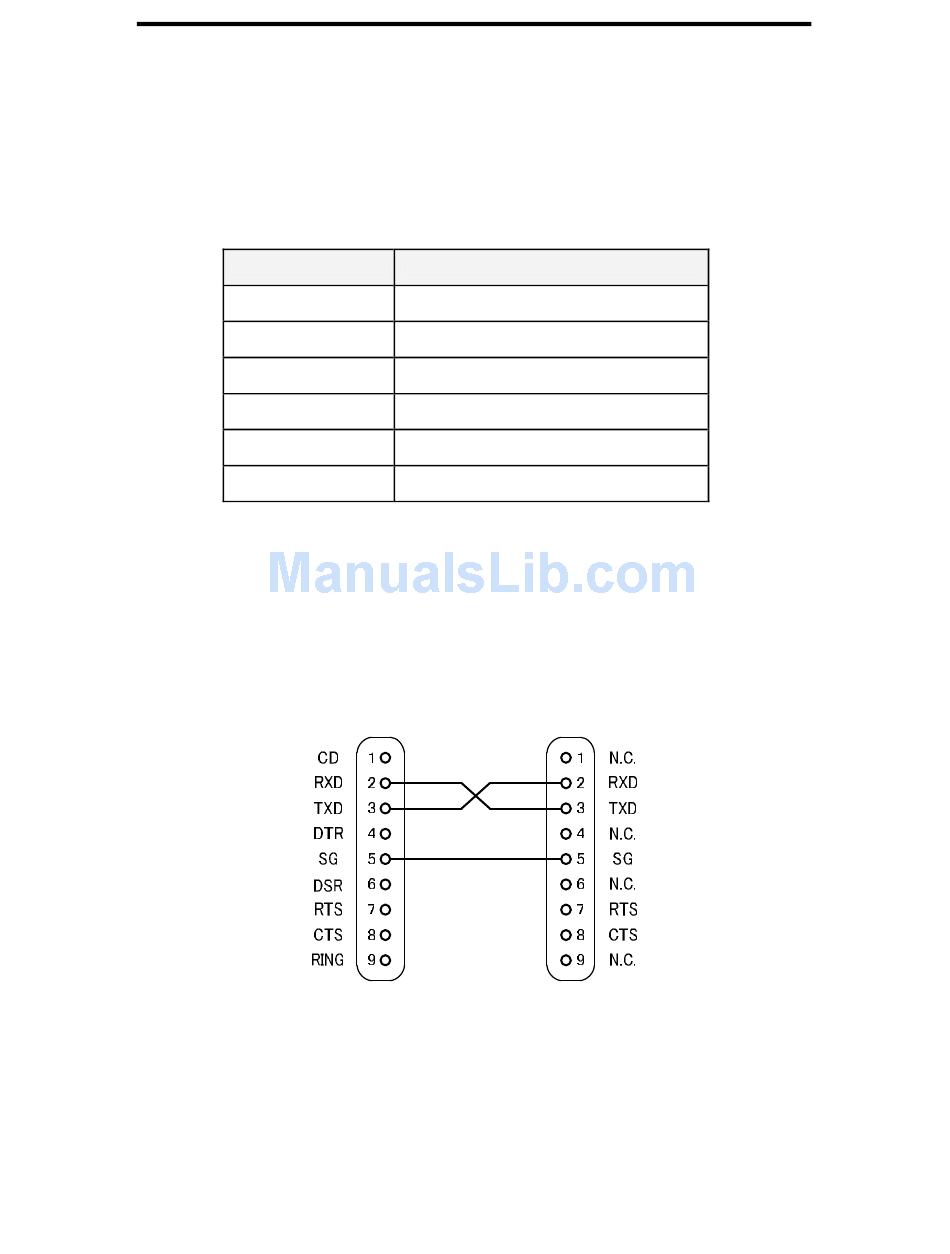

2.2. Connection

Dedicated serial cable must be used for connection to a computer and a projector.
Asynchronous
9600 / 19200
8 bit
N/A
1
N/A
PC
COM 1
(D-Sub 9 Pin)
5/26
Specifications
Projector
Control Port
(D-Sub 9 Pin)
