Motherboard overview
1.2.1

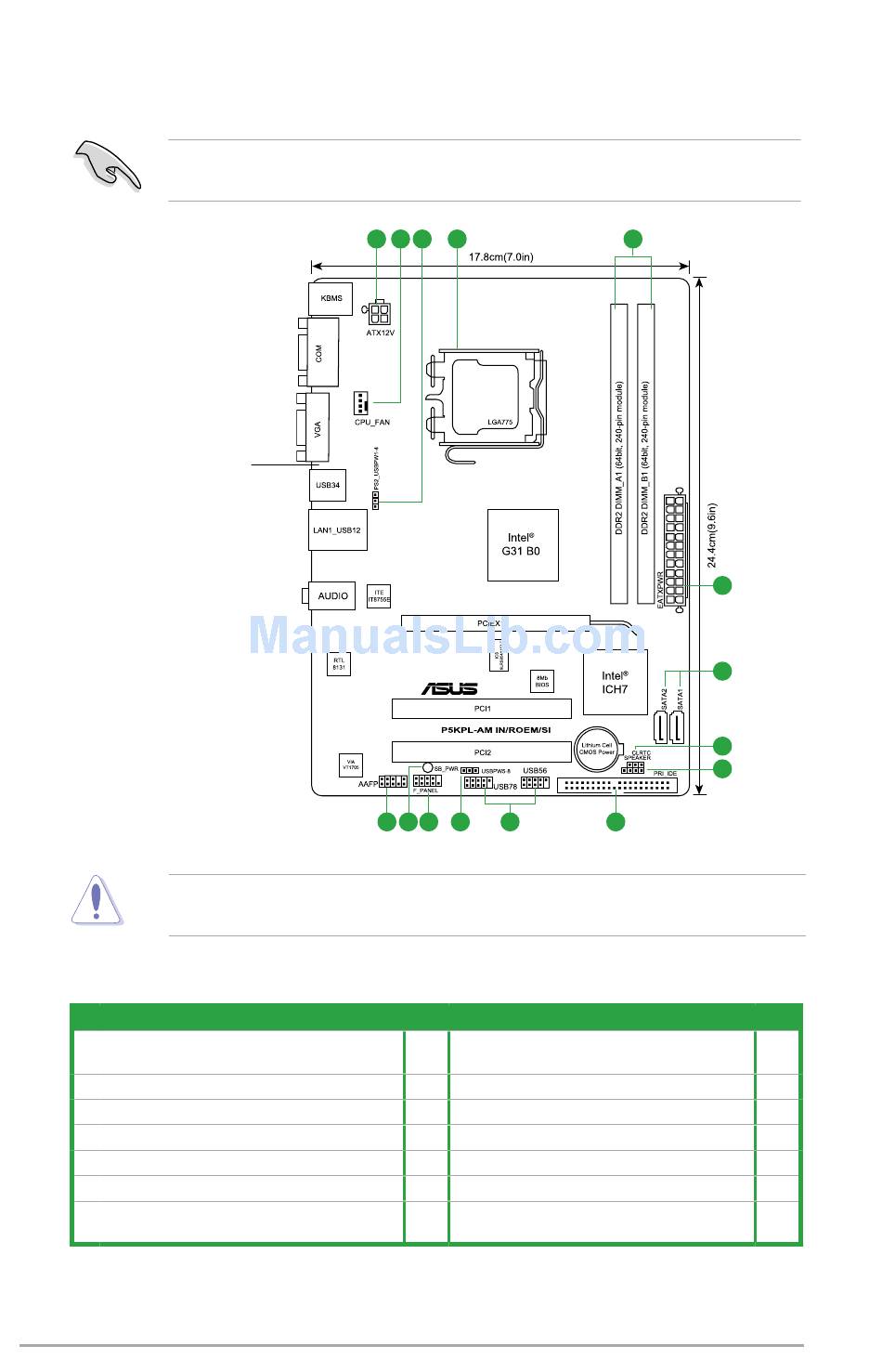

Motherboard layout
Ensure that you install the motherboard into the chassis in the correct orientation. The
edge with external ports goes to the rear part of the chassis.
Place this side towards
the rear of the chassis.
Place six screws into the holes indicated by circles to secure the motherboard to the
chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.
1.2.2
Layout contents
Connectors/Jumpers/Slots
1.
ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
2.
CPU fan connector (4-pin CPU_FAN)
3.
Keyboard/mouse power (3-pin PS2_USBPW1-4)
4.
LGA775 CPU socket
5.
DDR2 DIMM slots
6.
Serial ATA connectors (7-pin SATA1-2)
7.
Clear RTC RAM (3-pin CLRTC)
Chapter 1: Product introduction
1
2
3
4
14 13
12
11
10
Page
Connectors/Jumpers/Slots
1-13
8.
Speaker connector (4-1 pin SPEAKER)
1-12
9.
IDE connector (40-1 pin PRI_EIDE)
1-9
10.
USB connectors (10-1 pin USB56 USB78)
1-3
11.
USB device wake-up (3-pin USBPW5-8)
1-3
12.
System panel connector (10-1 pin PANEL)
1-10
13.
Onboard LED
1-8
14.
Front panel audio connector (10-1 pin
AAFP)
5
1
6
7
8
9
Page
1-14
1-11
1-11
1-7
1-14
1-1
1-12
1-2
