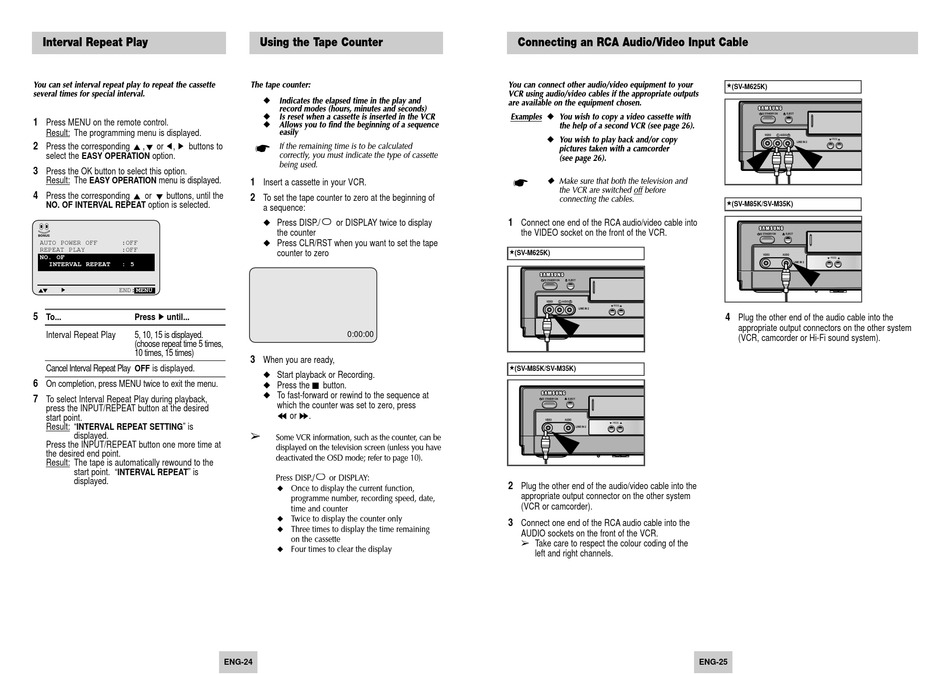

Interval Repeat Play; Using The Tape Counter; Connecting An Rca Audio/Video Input Cable - Samsung Sv-M35K Instruction Manual

Interval Repeat Play

You can set interval repeat play to repeat the cassette
several times for special interval.
1
Press MENU on the remote control.
Result: The programming menu is displayed.
2 , ➛ ❿
Press the corresponding or , buttons to
❷
select the EASY OPERATION option.
3
Press the OK button to select this option.
Result: The EASY OPERATION menu is displayed.
4
Press the corresponding or buttons, until the
❷
NO. OF INTERVAL REPEAT option is selected.
BONUS
AUTO POWER OFF :OFF
REPEAT PLAY :OFF
NO. OF
INTERVAL REPEAT : 5
❿
❷ END: MENU
❿
5 To... Press until...
Interval Repeat Play 5, 10, 15 is displayed.
(choose repeat time 5 times,
10 times, 15 times)
Cancel Interval Repeat Play OFF is displayed.
6
On completion, press MENU twice to exit the menu.
7
To select Interval Repeat Play during playback,
press the INPUT/REPEAT button at the desired
start point.
Result: "INTERVAL REPEAT SETTING" is
displayed.
Press the INPUT/REPEAT button one more time at
the desired end point.
Result: The tape is automatically rewound to the
start point. "INTERVAL REPEAT" is
displayed.

Using the Tape Counter

The tape counter:
Indicates the elapsed time in the play and
record modes (hours, minutes and seconds)
Is reset when a cassette is inserted in the VCR
Allows you to find the beginning of a sequence
easily
If the remaining time is to be calculated
correctly, you must indicate the type of cassette
being used.
1
Insert a cassette in your VCR.
2
To set the tape counter to zero at the beginning of
a sequence:
Press DISP./ or DISPLAY twice to display
the counter
Press CLR/RST when you want to set the tape
counter to zero
0:00:00
3
When you are ready,
Start playback or Recording.
Press the button.
To fast-forward or rewind to the sequence at
which the counter was set to zero, press
➛ ➛ or ❿ ❿.
Some VCR information, such as the counter, can be
displayed on the television screen (unless you have
deactivated the OSD mode; refer to page 10).
Press DISP./ or DISPLAY:
Once to display the current function,
programme number, recording speed, date,
time and counter
Twice to display the counter only
Three times to display the time remaining
on the cassette
Four times to clear the display
ENG-24

Connecting an RCA Audio/Video Input Cable

You can connect other audio/video equipment to your
VCR using audio/video cables if the appropriate outputs
are available on the equipment chosen.
Examples You wish to copy a video cassette with
the help of a second VCR (see page 26).
You wish to play back and/or copy
pictures taken with a camcorder
(see page 26).
Make sure that both the television and
the VCR are switched off before
connecting the cables.
1 Connect one end of the RCA audio/video cable into
the VIDEO socket on the front of the VCR.
(SV-M625K)
STANDBY/ON EJECT
VIDEO L AUDIO R
PROG
LINE IN 2
(SV-M85K/SV-M35K)
STANDBY/ON EJECT
VIDEO AUDIO
PROG
LINE IN 2
2
Plug the other end of the audio/video cable into the
appropriate output connector on the other system
(VCR or camcorder).
3
Connect one end of the RCA audio cable into the
AUDIO sockets on the front of the VCR.
Take care to respect the colour coding of the
left and right channels.
(SV-M625K)
STANDBY/ON EJECT
VIDEO L AUDIO R
PROG
LINE IN 2
(SV-M85K/SV-M35K)
STANDBY/ON EJECT
VIDEO AUDIO
PROG
LINE IN 2
4 Plug the other end of the audio cable into the
appropriate output connectors on the other system
(VCR, camcorder or Hi-Fi sound system).
ENG-25
