- Page 1 900 Series Professional UHF Wireless Systems ATW-0951 UniPak Transmitter System ™ ATW-0952 Handheld Dynamic Microphone System Installation and Operation...
-
Page 2: Receiver Installation

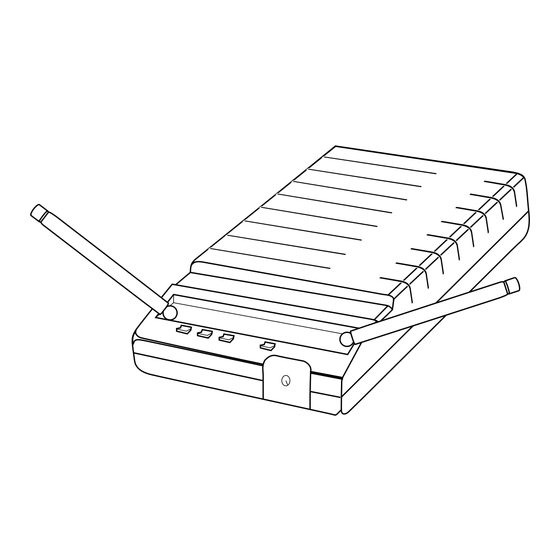

Installation and Operation Receiver Installation Location This device complies with part 15 of the FCC Rules. Operation is subject to the condition that For best operation the receiver should be at least 3' above the ground and at least 3' away from a this device does not cause harmful interference. -
Page 3: Transmitter Setup
Fig. D Transmitter Setup Battery Polarity Diagram Battery Selection An alkaline 9-volt battery is recommended. UniPak ™ Transmitter Battery Installation Make certain the power switch on the bottom of transmitter is in the “Off” position. Battery-Save Switch Slide off the battery cover as shown in Figure B. Move the white arm down until it presses on the battery, then slide the lower body portion back Fig. -
Page 4: System Operation
• Guitar/Instrument: Adjusting input level System Operation While playing at typically-loud levels, carefully turn the GT control clockwise while watching the receiver’s AF Peak indicator. Increase the GT control setting until the AF Peak indicator lights. Check the frequency of the system against the chart on page 9 to ensure you have a proper This indicates that maximum transmitter modulation without significant distortion has been frequency for your area. - Page 5 Wireless Operating Frequencies System Operating Frequencies Frequency Selection UHF TV Band (792-806 MHz) Freq. Code Freq. (MHz) Each transmitter/receiver system operates on a single factory-aligned, crystal-controlled frequency. • For use only where there is no TV Channel 67: 792.650 Available frequencies are shown in the chart on the following page. Frequencies in the 792-806 MHz 793.000 band are useable in the U.S.
-
Page 6: Specifications
Specifications Optional System Accessories Overall System Microphones and Cables (terminated for use with the UniPak ™ transmitter) Operating Frequency UHF band, 792 MHz to 806 MHz (U.S. and Canada); AT829cW Miniature cardioid condenser lavalier microphone. 944 MHz to 952 MHz (U.S. only) MT830cW Subminiature omnidirectional condenser lavalier microphone. - Page 7 Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away.
