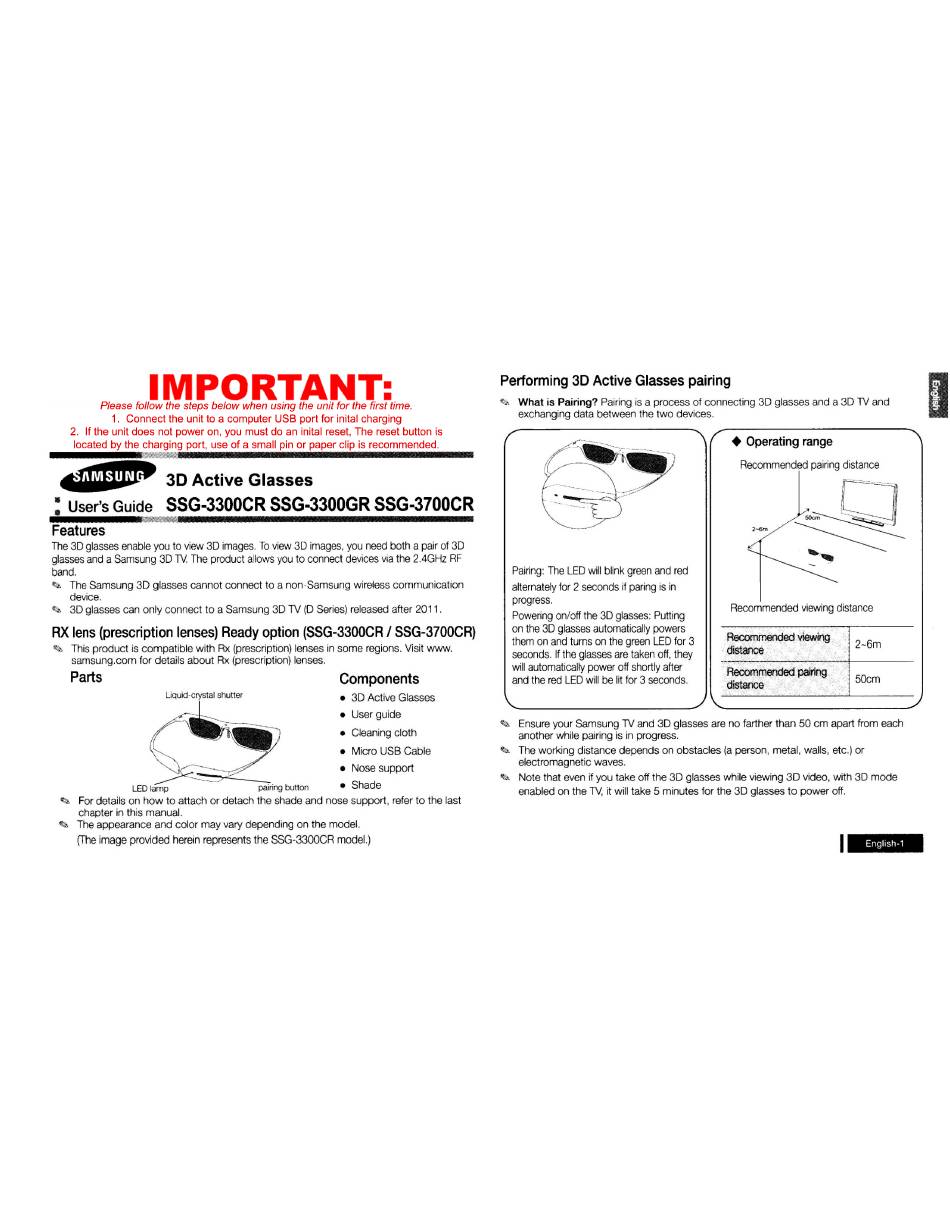

IMPORTANT:
Please follow the steps below when using the unit for the first time.
1. Connect the unit to a computer USB port for inital charging
2. If the unit does not power on, you must do an inital reset, The reset button is
located by the charging port, use of a small pin or paper clip is recommended
AMSUN
3D Active
: User's Guide SSG-3300CR SSG-3300GR SSG-3700CR
Features
The 3Dglassesenableyou to view 3D images.Toview 3D images,you need both a pair of 3D
glassesand a Samsung 3D TV.Theproduct allows youto connect devicesvvathe 2.4GHz RF
The Samsung 3D glasses cannot connect to a non-Samsung wireless communication
3D glasses can only connect to a Samsung 3D TV (DSeries)released after 2011.
RX lens (prescription lenses)Ready option (SSG-3300CR / SSG-3700CR)
This product iS compatible With Rx (prescription) lenses in some regions. Visit www.
samsung.com for details about Rx (prescription) lenses.
Parts
Liquki•crystal shutter
LED larnp
For details on how to attach or detach the shade and nose support, refer to the last
chapter
in this manual.
The appearance and color may vary depending on the model.
(Theimage provided heren representsthe SSG-3300CR model.)
Glasses
Components
3D Active Glasses
user guide
Cleaning cloth
• Micro USB Cable
Nose support
• Shade
pairing button
Performing 3D Active Glasses pairing
What is Pairing? Pairing is a process of connecting 3D glasses and a 3D TV and
exchanging data between the two devices.
Pairing:The I FD will blinkgreen and red
alternatelyfor 2 secondsif paring is in
progress.
Poweringon/off the 3D glasses:Putting
on the 3D glasses automatically powers
them on and turns on the green LEDfor 3
seconds. If the glasses are taken off, they
willautornaticallypower off shortlyafter
and the red LED will be lit for 3 seconds.
Ensure your Samsung TV and 3D glasses are no farther than 50 cm apart from each
another while pairing is in progress.
The working distance depends on obstacles (a person, rnetal, walls, etc.) or
electromagnetic waves.
Note that even if you take off the 3D glasses while viewing 3D video, with 3D mode
enabled on the TV, it will take 5 minutes for the 3D glasses to power off.
Operating range
Recommendedpairing distance
Recommendedviewingdistance
viewing
2-6m
distance
Recommendedparing
50cm
English-I
