3 Connect the black antenna cable with a gray stripe to the connector
labeled "aux" (black triangle) and connect the white antenna cable with a
gray stripe to the connector labeled "main" (white triangle).
4 Secure unused antenna cables in the protective mylar sleeve.
5 Replace the cover and tighten the captive screws.

Removing a WPAN Card

1 Follow the procedures in "Before You Begin" on page 153.
2 Turn the computer over.

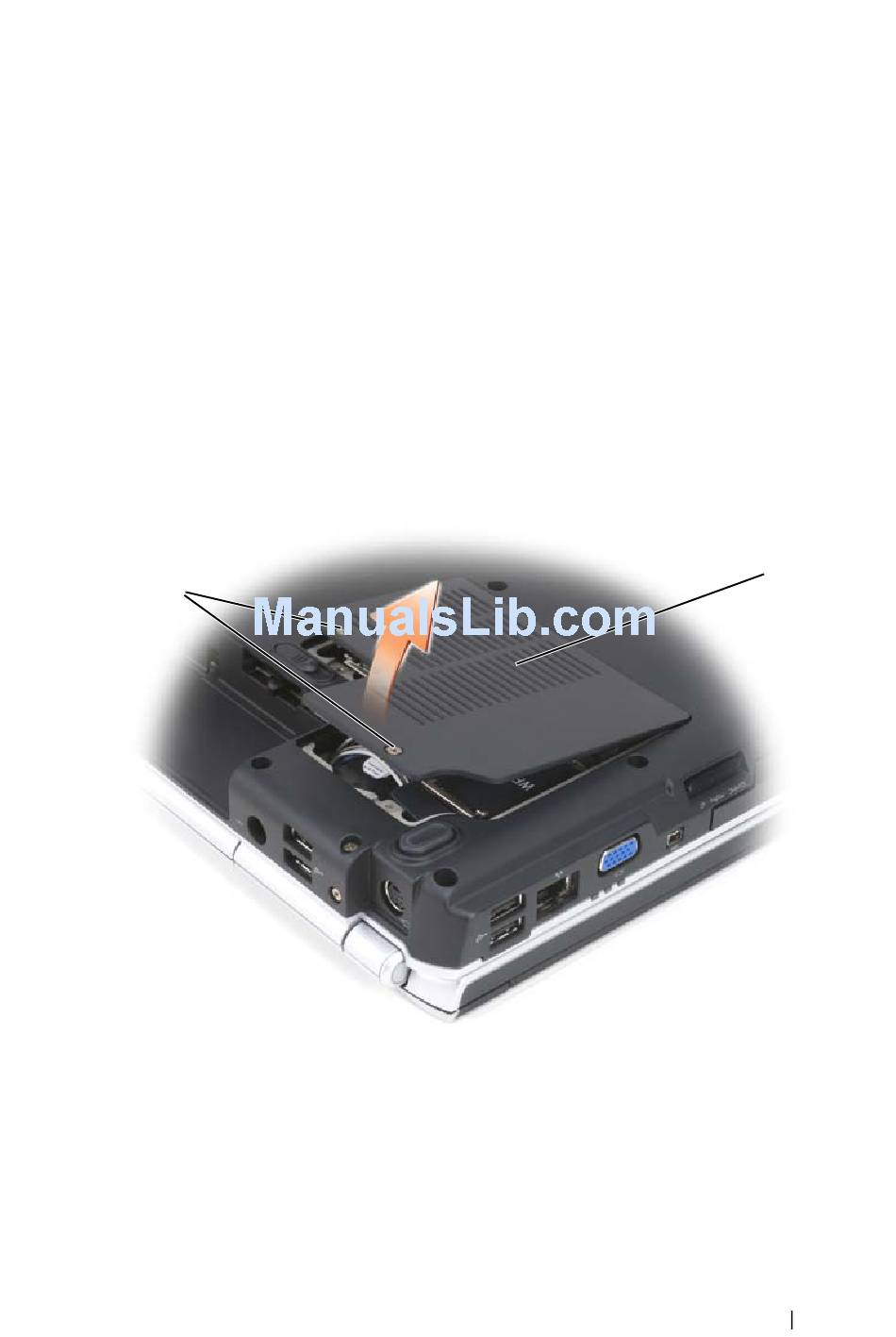

3 Loosen the captive screws on the cover of the Mini Card compartment and
remove the cover.
1
4 Disconnect the blue antenna cable from the
5 Release the
back of the computer until the card pops up slightly.
6 Lift the
WPAN card
1 captive screws (2)
card by pushing the metal securing tabs toward the
WPAN
out of its system board connector.
2 cover
card.
WPAN
Adding and Replacing Parts
2
177
