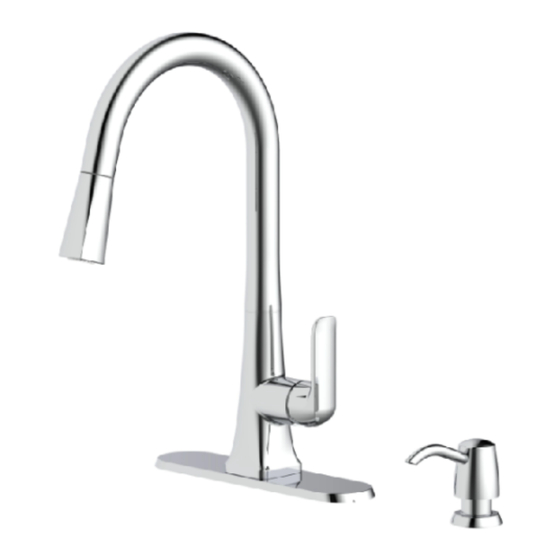

Pull-down kitchen faucet

Quick Links

ALLEN + ROTH and logo design are
trademarks or registered trademarks of LF,
LLC. All rights reserved.
Serial Number
Purchase Date
Thank you for purchasing this ALLEN + ROTH product.
Questions, problems or missing parts?
Before returning, contact us on:
866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday or ascs@lowes.com.
ST25133
ITEM #6832225/6832227/6832228/6033971
MODEL #FP1B4248CP/FP1B4248BL/
PULL-DOWN
KITCHEN FAUCET
ATTACH YOUR RECEIPT HERE
1
FP1B4248SP/FP1B4248CZ
Español p. 17
Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP1B4248CP and is the answer not in the manual?

Questions and answers

Summary of Contents for Allen + Roth FP1B4248CP

  • Page 1 LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Thank you for purchasing this ALLEN + ROTH product. Questions, problems or missing parts? Before returning, contact us on: 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday or ascs@lowes.com.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents ..........................3 Hardware Contents ..........................4 Safety Information ..........................5 Preparation ............................5 Assembly Instructions..........................6 Operating Instructions ......................... 12 Soap Dispenser Installation ........................ 13 Quick Connector Removal ........................14 Care and Maintenance ........................15 Troubleshooting ...........................
  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Faucet body Putty plate Spray head Sleeve (preassembled) Quick connect tube Weight Pump nozzle (preassembled) Water supply line Bottle shank (preassembled) Hose Washer (preassembled) Quick connector Lock nut (preassembled) Base Bottle (preassembled) Deck plate Washer (preassembled)
  • Page 4: Hardware Contents

    HARDWARE CONTENTS (SHOWN ACTUAL SIZE) Hex Wrench Qty. 1 Hex Wrench Qty. 1...
  • Page 5: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • Please do not use plumber’s putty on plastic components. Use silicone caulk if sealant is required. • When installing the flexible hose, please note there should be no torsion or deformation. Do not fold it into a V or L shape, and do not use it if there is any cracks or damage.
  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. Turn off water supply. Remove existing faucet if necessary. 2. Check for the proper thickness of the sink. Without deck plate 1-5/8 in. (41 mm) max. Ø 1-3/8 in. (35 mm) min. Ø 1-1/2 in. (38 mm) max. With deck plate 1-1/4 in.
  • Page 7 ASSEMBLY INSTRUCTIONS 3b. With deck plate: Place a bead of silicone sealant (not included) around the base of the deck plate (I). Place the putty plate (J) and the deck plate (I) on the sink and insert the base (H). “FR£NT” must face the front of the sink.
  • Page 8 ASSEMBLY INSTRUCTIONS 6. Insert the supply lines (E) one by one through the large hole of the base (H). NOTE: Ensure water supply line (blue) is in front of water supply line (red). Big hole 7. Insert the quick connect tube (C) through the large hole of the base (H).
  • Page 9 ASSEMBLY INSTRUCTIONS 9. Secure the faucet body (A) by tightening the set screw with the provided hex wrench (BB). Hardware Used Hex Wrench 10. Locate lowest point of the hose (F) on the spout side and attach attach sleeve (K) and weight (L). 11.
  • Page 10 ASSEMBLY INSTRUCTIONS 12. Attach the quick connector (G) to the hose (F). 13. Attach the quick connector (G) to the quick connect tube (C). Pull down the quick connector (G) to ensure it is secure. NOTE: For removal, see “Quick Connector Removal page 14.”...
  • Page 11 ASSEMBLY INSTRUCTIONS 15. Turn on water supply.
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS 1. Remove spray head (B) from faucet body (A). 2. Flush out any debris. 3. Replace spray head (B).
  • Page 13: Soap Dispenser Installation

    SOAP DISPENSER INSTALLATION 1. Unscrew the bottle (Q), lock nut (P) and wahsers (O) & (R). Remove the pump nozzle (M) and plastic pump from soap dispenser assembly. 2. Install the bottle shank (N) through the hole for soap dispenser. 3.
  • Page 14: Quick Connector Removal

    SOAP DISPENSER INSTALLATION 4. Fill bottle (Q) with liquid soap (or hand lotion). Reattach the pump nozzle (M) and plastic pump to the connector. QUICK CONNECTOR REMOVAL 1. Push quick connector housing upward. Hold clip and housing together and pull downward. CAUTION: Be careful in removal of quick connector to not cut hands.
  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE • Clean periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh chemicals as these will dull the finish and void your warranty. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Leak from under Retainer nut has come loose. Tighten the retainer nut.
  • Page 16: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at ascs@lowes.com. PART DESCRIPTION PART # COVERED UNDER WARRANTY Index Button A66D558 Index Button (BL) A66D558KP Handle A079343...
