2.2

Wiring

2.2.1

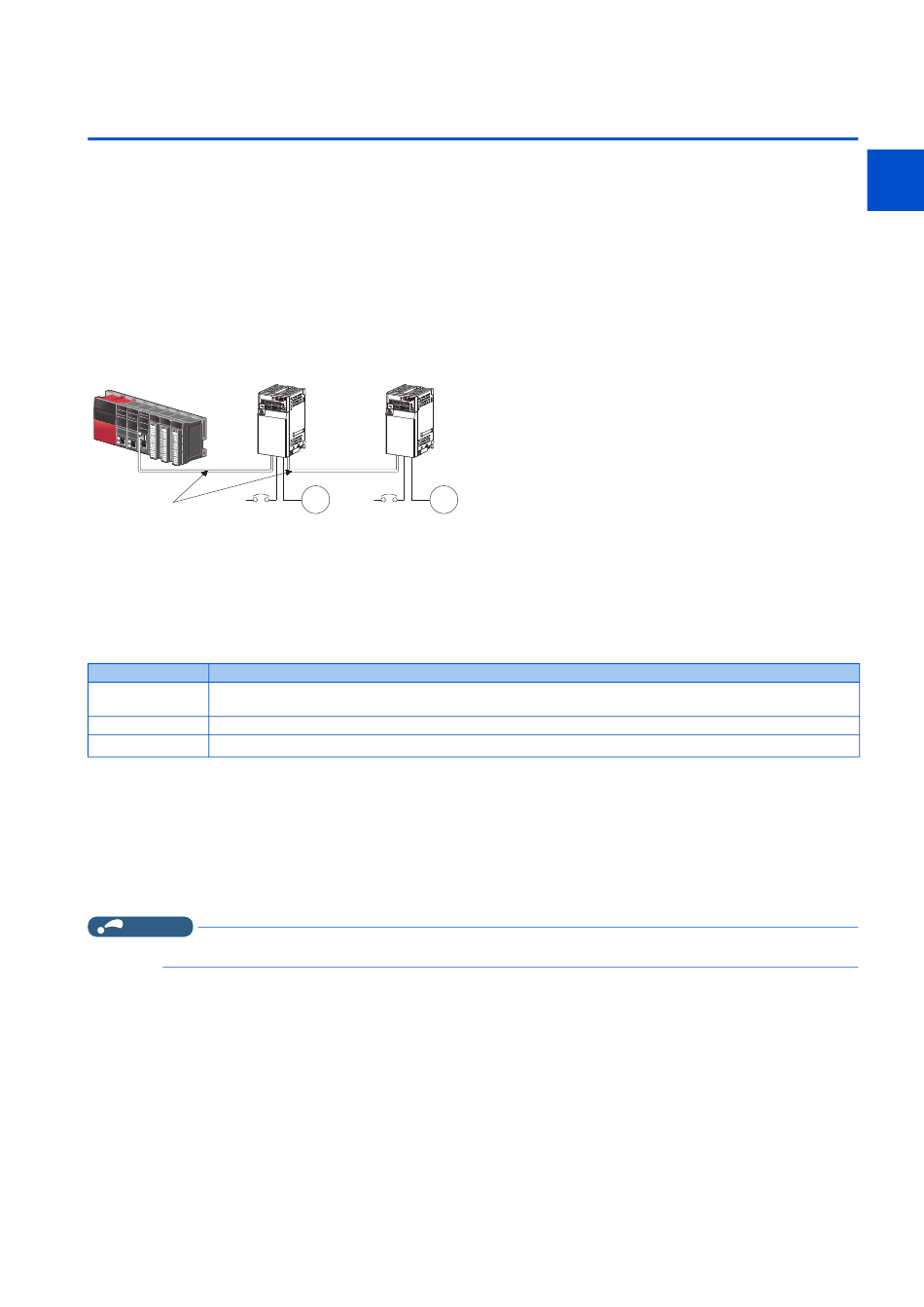

System configuration example

1.
Select the connection method. (Refer to
2.
Prepare the equipment required for wiring. (Refer to
3.
Turn OFF the power of the programmable controller and the inverters.
4.
Connect the programmable controller (master) and the inverters with Ethernet cables. (Refer to
Programmable
controller (master) Inverter
Power
Ethernet cable
supply
2.2.2

Network configuration

 Network topology
The network can be wired into star topology, line topology, and ring topology. A network can consist of a combination of star
and line topologies.
Item
Units are configured into a star using a switching hub and Ethernet cables. Except for the master, units can be easily
*1
Star topology
added in a star topology. Furthermore, data link continues among normally-operating stations in a star topology.
Line topology Units are configured into a line using Ethernet cables. A switching hub is not required.
*2
Units are configured into a ring using Ethernet cables. Data link continues with the stations that are operating normally.
Ring topology
*1 A general-purpose switching hub cannot be used for EtherCAT communication. Use an EtherCAT branch slave.
*2 Ring topology is available only for EtherCAT communication. Use an EtherCAT branch slave.
 Station number and connection position
Units can be connected in any order regardless of the station number.
 Replacing CC-Link IE TSN devices
For star topology, units (except for the master) can be replaced without powering off the whole system.
NOTE
• Refer to the Master Module User's Manual for detailed network configurations.
page 15.)
page
Inverter
Power
M M
supply
16.)
Description
page 17.)
