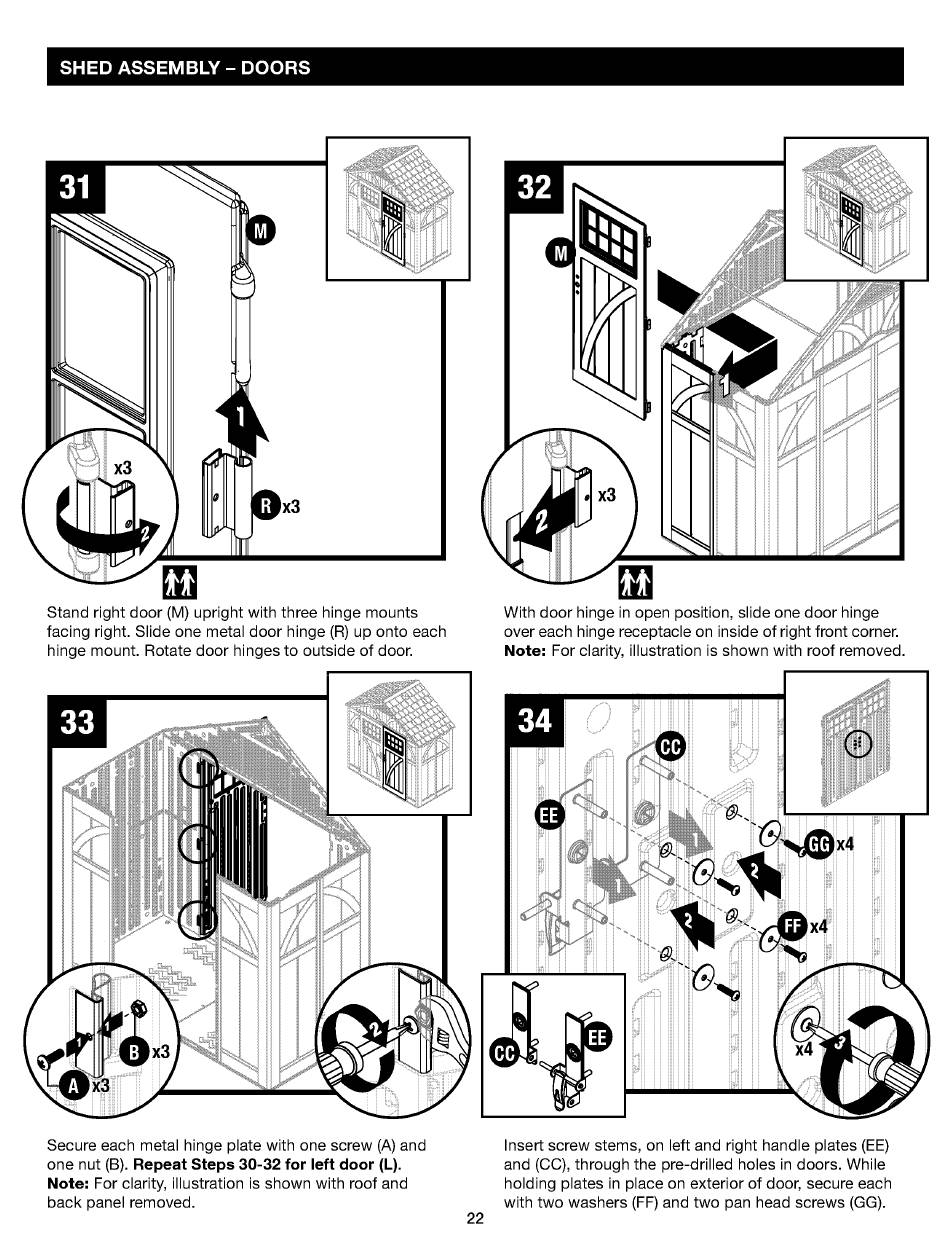

SHED ASSEMBLY - DOORS
Stand right door (M) upright with three hinge mounts
facing right. Slide one metal door hinge (R) up onto each
hinge mount. Rotate door hinges to outside of door.
33
x3
Secure each metal hinge plate with one screw (A) and
one nut (B). Repeat Steps 30-32 for left door (L).
Note: For clarity, illustration is shown with roof and
back panel removed.
If(Q
x3
32
x3
With door hinge in open position, slide one door hinge
over each hinge receptacle on inside of right front corner.
Note: For clarity, illustration
34
Insert screw stems, on left and right handle plates (EE)
and (CC), through the pre-drilled holes in doors. While
holding plates in place on exterior of door, secure each
with two washers (FF) and two pan head screws (GG).
22
is shown with roof removed.
cc
x4
x4
x4
