Craftsman 65006 Assembly Instructions Manual page 14

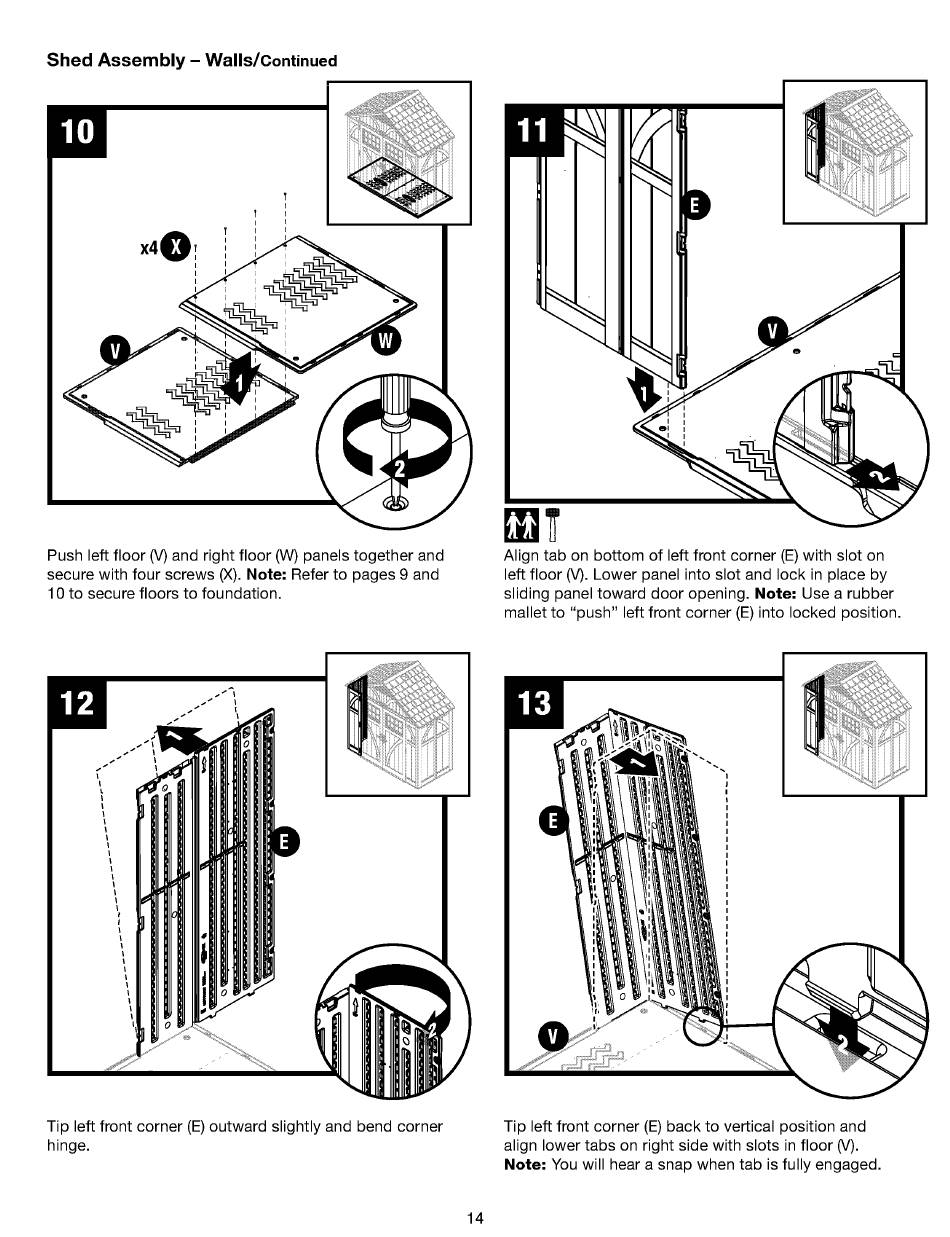

Shed Assembly —Walls/Continued
x4
Push left floor (V) and right floor (W) panels together and
secure with four screws (X). Note: Refer to pages 9 and
10 to secure floors to foundation.
Tip left front corner (E) outward slightly and bend corner
hinge.
Align tab on bottom of left front corner (E) with slot on
left floor (V). Lower panel into slot and lock in place by
sliding panel toward door opening. Note: Use a rubber
mallet to "push" left front corner (E) into locked position.
13
Tip left front corner (E) back to vertical position and
align lower tabs on right side with slots in floor U.
Note: You will hear a snap when tab is fully engaged.
