Craftsman 65006 Assembly Instructions Manual page 12

Storage shed

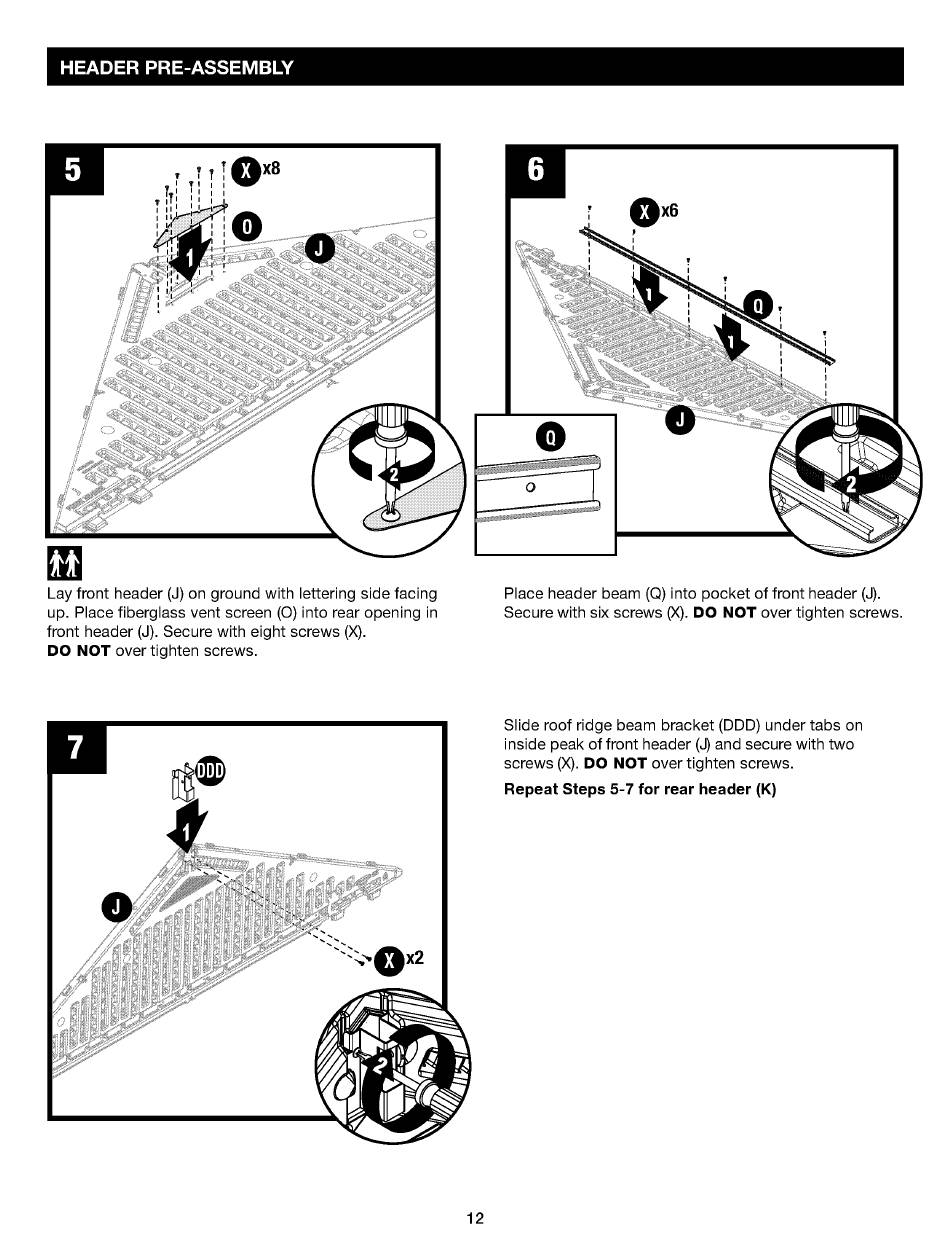

HEADER
PRE-ASSEMBLY
Lay front header (J) on ground with lettering side facing
up. Place fiberglass vent screen (O) into rear opening in
front header (J). Secure with eight screws (X).
DO NOT over tighten screws.
Place header beam (Q) into pocket of front header (J).
Secure with six screws (X). DO NOT over tighten screws.
Slide roof ridge beam bracket (DDD) under tabs on
inside peak of front header (J) and secure with two
screws (X). DO NOT over tighten screws.
Repeat Steps 5-7 for rear header (K)
12
