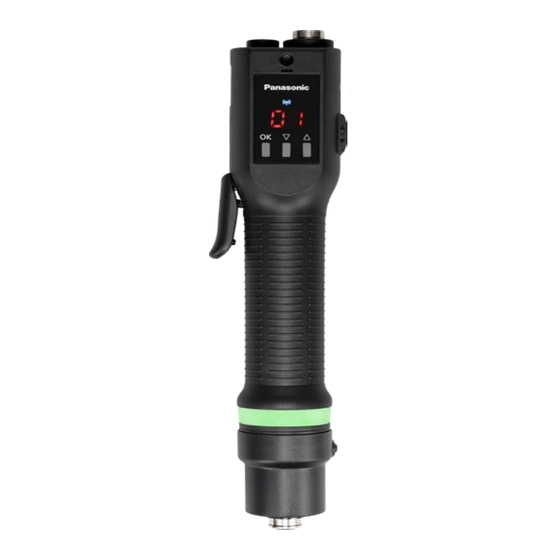

Panasonic EYADA218 Quick Manual
Quick Links
Type A
• Clutch shut off
• Torque Number Conversion
• LED display
• Muti colors confirmation LED
• Wireless Communication
• Torque Limits
• Rotation Time Limits
• Job Sequence
• Soft start
• Push or lever Start
• Batch Count
Panasonic Electric Screwdriver Quick Guide

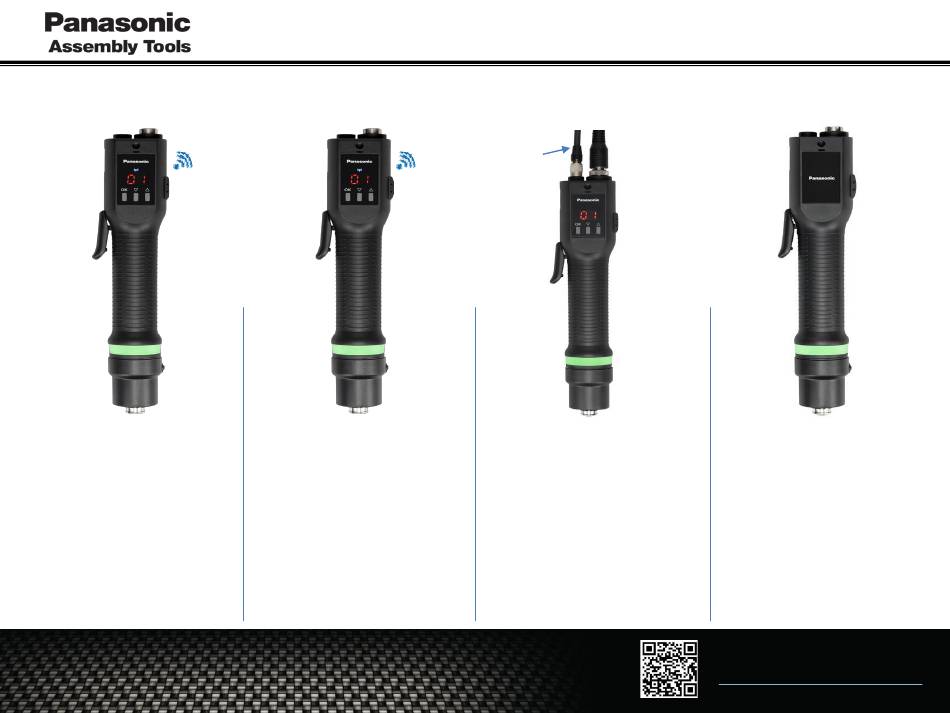

Screwdriver Types
Type B
• Clutch shut off
• LED display
• Muti colors confirmation LED
• Wireless Communication
• Rotation Time Limits
• Job Sequence
• Soft start
• Push or lever Start
• Batch Count
Type C
I/O
• Clutch shut off
• LED display
• Muti colors confirmation LED
• Poka-yoke PLC Connector
• Rotation Time Limits
• Job Sequence
• Soft start
• Push or lever Start
• Batch Count
Type D
• Clutch shut off
• Push or lever Start
• Muti colors confirmation LED
Tech support: 1-888-388-4296
Assemblytools@us.panasonic.com
Related Manuals for Panasonic EYADA218
Summary of Contents for Panasonic EYADA218
- Page 1 Panasonic Electric Screwdriver Quick Guide Screwdriver Types Type A Type B Type C Type D • Clutch shut off • Torque Number Conversion • Clutch shut off • Clutch shut off • LED display • LED display • LED display •...
- Page 2 Panasonic Electric Screwdriver Quick Guide Overview Serial number tag Program settings 3 position switch 1. Reverse ↑ ↑ ↑ 2. Center (Programming) down 3. Forward Lever start Muti color Verification LED 96 step clutch adjustment Push to start Tech support: 1-888-388-4296...
-
Page 3: Torque Chart
Panasonic Electric Screwdriver Quick Guide Torque Chart EYSDA112 Machine screw: M2 to M3.5 0.1 Nm to 1.0 Nm 407 SERIES EYSDA212 Bolt size M2 – M5 Machine screw: 212 SERIES Based on approximate values M2.5 to M4.5 0.3 Nm to 2.5 Nm... - Page 4 Panasonic Electric Screwdriver Quick Guide Step 3 Advanced Features Step 1 Step 2 Torque Adjustment & Verification Select Tool & Initial Torque Setting 1. Choose correct tool and 1. There are two options for testing the After you setup the clutch, then fastener size M2 –...
-
Page 5: Advanced Features
Panasonic Electric Screwdriver Quick Guide Advanced Features Tool Reset 1. Put the tool in program mode • Slide switch to center position, press and hold the “Ok” button (entering program mode) 2. Press and hold Ok, Up Down buttons simultaneously and hold •... - Page 6 Panasonic Electric Screwdriver Quick Guide Push to Start Push to start Push or Lever Start Slide the F/R switch to center Push to Start - Push the bit down for 5 sec until the LED lights yellow and beeps Lever Start...
- Page 7 Panasonic Electric Screwdriver Quick Guide Default Setting for Soft Start and Soft Snug 1. Soft Start and Soft Snug time programing 2. Soft Start and Soft Snug RPM programing Soft Start (u1) - Off -.- Start speed (u2) - Level 10 (1800 RPM for 218 tool) Soft Snug (u1) - Off -.-...
- Page 8 Panasonic Electric Screwdriver Quick Guide Max RPM then Down Shift 1. Soft Start and Soft Snug time programing 2. Soft Start and Soft Snug RPM programing Soft Start (u1) - Off -.- Start speed (u2) - Level 1 (450 RPM for 218 tool) Soft Snug (u1) - .1 sec...
- Page 9 Panasonic Electric Screwdriver Quick Guide Same as previous slide. M5 rundown with clutch shutoff 1. Soft Start and Soft Snug time programing 2. Soft Start and Soft Snug RPM programing Soft Start (u1) - Off -.- Start speed (u2) - Level 1 (450 RPM for 218 tool) Soft Snug (u1) - .1 sec...
- Page 10 Panasonic Electric Screwdriver Quick Guide Same as previous slide. M5 rundown with clutch shutoff 1. Soft Start and Soft Snug time programing 2. Soft Start and Soft Snug RPM programing Soft Start (u1) - Off -.- Start speed (u2) - Level 1 (450 RPM for 218 tool) Soft Snug (u1) - .1 sec...
- Page 11 Panasonic Electric Screwdriver Quick Guide Soft Start, Max RPM then Down Shift 1. Soft Start and Soft Snug time programing 2. Soft Start and Soft Snug RPM programing Soft Start (u1) - .3 sec Start speed (u2) - Level 2 (600 RPM for 218 tool) Soft Snug (u1) - .7 sec...
- Page 12 Panasonic Electric Screwdriver Quick Guide Minimum RPM through the Tightening 1. Soft Start and Soft Snug time programing 2. Soft Start and Soft Snug RPM programing Soft Start (u1) - Longer than the rundown Start speed (u2) - Level 1 (450 RPM for 218 tool) Soft Snug (u1) - Off -.-...
- Page 13 Panasonic Electric Screwdriver Quick Guide RPM Level Chart RPM Level EYADA218 450 600 750 900 1050 1200 1350 1500 1650 1800 Type A,B,C EYADA212 300 400 500 600 700 800 900 1000 1100 1200 Type A,B,C EYADA407 160 220 270 330 380 430 490 540 600 650 Type A,B,C Type D Screwdrivers only have max RPM.
- Page 14 Panasonic Electric Screwdriver Quick Guide Available Features Depending on Type Tech support: 1-888-388-4296 Assemblytools@us.panasonic.com...
