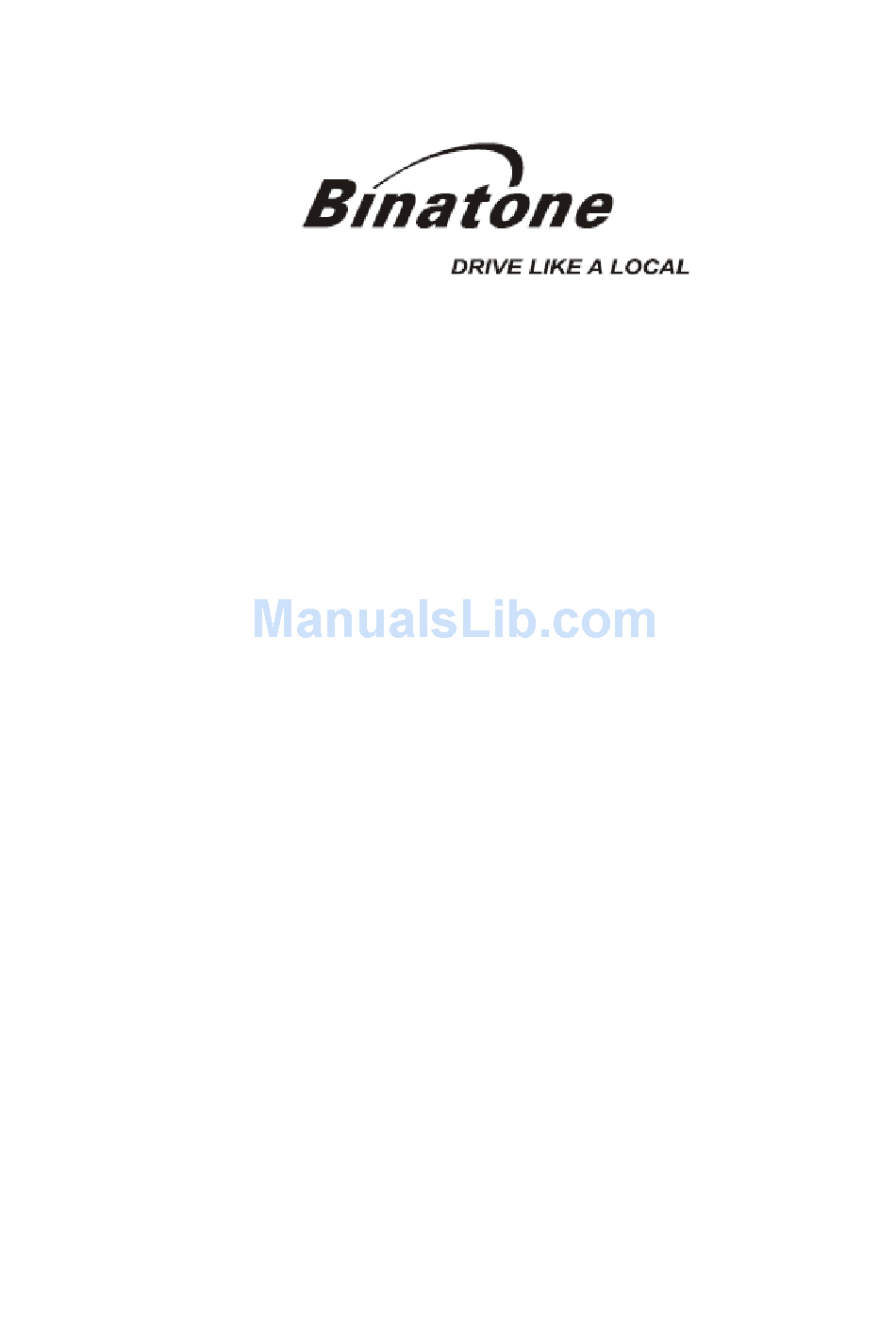

- Page 1 User Guide F430 edition www.binatonegps.com Binatone Navigation software...
-
Page 2: Important
This is quite normal for products of this type. You can check the number of satellite signals that the unit is receiving and the strength of those signals by viewing the GPS Receiver. Unpacking your Binatone Navigation System In the box you will find ·GPS navigation device ·Car mounting kit... -
Page 3: Safety
America, who are responsible for its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of you Binatone Personal Navigation Device (PND). Using Your PND in the Car When using your PND while driving it is essential that you drive with due care and attention. -
Page 4: Table Of Contents
CONTENTS CONTENTS Important………………………………………………………………………. In the Box ……….………………………………………………………... Safety …………………………………………………………………………… 02 The Global Positioning System …………………………………………… 02 Using Your PND in the Car .…………………………………………….. 02 Prohibited Areas .…………………………………………………….…… 02 Battery..…………………………………………………………………….. 02 Contents .………………………………………………………………………. 03 Quick Start Guide …………………………………………………………… Position of the Controls ………………………………………………… Charging the Battery ……………………………………………………. - Page 5 CONTENTS NAVIGATION 1. Introduction......................... 15 1.1 GPS connection………………………………………………………………. 15 2. Getting Started ......................16 3. Navigational Map Screens……………………………………………………………16 3.1 Free Navigation……………………………………………………………….. 17 3.2 Route Navigation………………………………………………………………18 4. Browsing the Map…………………………………………………………………….19 5. Navigation…………………………………………………………………………….19 5.1 Free navigation…………………………………………………………………19 5.2 Route Navigation………………………………………………………………19 6. Go to…………………………………………………………………………………..19 6.1 Entering an Address/Postcode………………………………………………….20 6.2 Searching for a POI (Point of Interest)…………………………………………22 6.2.1 POI near Current Position………………………………………………22...
- Page 6 CONTENTS 8.11 Brightness…………………………………………………………………… 33 8.12 Calibration……………………………………………………………………34 9. Route Plan……………………………………………………………………………34 9.1 Navigating……………………………………………………………………. 34 9.2 Waypoints……………………………………………………………………. 34 9.3 Simulate……………………………………………………………………….35 9.4 Route Options…………………………………………………………………35 10. Route Navigation Menu……………………………………………………………36 10.1 Route Plan………………………………………………………………… 36 10.2 Detour ……………………………………………………………………… 36 10.3 Cancel Route ………………………………………………………………. 36 10.4 Go to ………………………………………………………………………. 37 10.5 Route Information …………………………………………………………...
-
Page 7: Quick Start Guide
QUICK START GUIDE Quick Start Guide Please make sure that your read all of the information contained within this user guide before operating this unit. If you experience any problems, please go through the user guide before contacting the customer helpline. Position of the controls 1. -
Page 8: Charging The Battery
QUICK START GUIDE Charging the Battery Before using your GPS device for the first time, we recommend that you charge the unit for 5 hours via the mains/car charger, or until the charge light turns green. Plug the mains/car charger into the USB socket. -
Page 9: Turning The Sat Nav Unit On/Off
QUICK START GUIDE Turning the Sat Nav Unit On/Off Press and hold the On/Off button on the top of the unit for around 3 seconds, the unit will power up and display the Menu screen. Press and hold the On/Off button for around 3 seconds during operation, the unit will show up the following display,... -
Page 10: Windscreen Holder Installation
QUICK START GUIDE Windscreen Holder Installation The car mount has a suction pad that fits to the windscreen or a flat area on the dashboard. A. Fitting to windscreen Pull the lever away from the suction pad. Place the pad on the widescreen and push the lever towards the pad until it clicks into place. -
Page 11: Getting Started
MAIN MENU Starting Up Press the On/Off button on the top until the following screens are displayed, When you press MENU, the following screens will be displayed:... -
Page 12: Settings
MAIN MENU Settings NOTE: You do not need to enter the SETTINGS menu before you start to navigate. If you press on the SETTINGS icon the following screen is displayed. To exit this page or exit any subsequent page, press the at the bottom of the screen. -
Page 13: Multi-Media
MAIN MENU Language Press ”Language” to change the language. Use the keys to scroll between further language options. Select the language you desire from the available options so that it is highlighted white. Then press to confirm and exit. About The About page contains information about your operating system software version. -
Page 14: Document Viewer
MAIN MENU 4) Click on SDMMC folder to open it and then click on a picture or a further folder. To continue searching or to load a photo it into the viewer. To go back through the menu structure press the option “...” The following screen will be shown: Button function list of Picture Files: 1. -
Page 15: Gps Receiver
MAIN MENU Button function list of Document Files: 1. Return : Press this to return back to the list of documents on the unit. 2. Page number : This shows the number of the current page and the total number of pages in the document. -
Page 16: Navigation
NAVIGATION 1 Introduction You have chosen a cutting-edge navigation system. Congratulations! Please enjoy using it. This navigation system leads you straight to your destination, whether you are travelling by car or on foot. You can navigate and plan your route with an easy-to-use and intuitive interface, just by using your finger. -
Page 17: Getting Started
“Don’t show this statement again”. You will now be shown the Binatone screen, which shows the progress of the loading software on the yellow bar at the bottom. Once the software has loaded you will be shown the Free Navigation Menu screen, this is the starting point for all your navigating needs. -
Page 18: Free Navigation
NAVIGATION 1 Compass – Shows your current heading by means of a letter, while the red part of the compass needle always points North. 2 Zoom out – Tap to zoom out on the map. 3 Speed – Shows your current speed. 4 Menu button –... -
Page 19: Route Navigation
NAVIGATION 3.2 Route Navigation 11 Speed limit– Shown when you exceed the speed limit of the current road, if switched on via the settings (see page 29). 12 Turn indicator – Shows a graphical representation of the next manoeuvre and the distance to the manoeuvre. -
Page 20: Browsing The Map
NAVIGATION 4 Browsing the Map When in Free Navigation or Route Navigation it is possible to browse the map so that you can look at parts of the map which are currently not shown. To move the map around use the stylus (if provided) or your finger to press and hold on a point on the map, then drag the map in the opposite direction you want to look at. -
Page 21: Entering An Address/Postcode
NAVIGATION 6.1 Entering an Address/Postcode One of the most commonly used methods for inputting a destination into the unit, tap Address the screen will change to show the following. This screen shows a list of any previously used cities/towns. You will also be able to enter a new city name as well as changing the country you wish to search within. - Page 22 NAVIGATION Note: That there is no need to enter any special characters in the city name as the unit will search for and match whether these are entered or not. E.g. for CÁDIZ simply enter CADIZ. to enter a space. to delete an incorrect letter.
-
Page 23: Searching For A Poi (Point Of Interest)
NAVIGATION When entering an address you have the following options; . Once you have fully entered the destination you want to navigate to and are happy, you will now be taken to the Route Plan screen (see page 34). to view the location on the map and once in the map view you can browse the map (see page 24), to exit from the map view back to the previous screen tap . -
Page 24: Poi In City
NAVIGATION Scroll through the list using the keys till you find the POI you are looking for. Select the item so that it is highlighted orange then tap or double tap the item to confirm. You will be taken to the Route Plan screen (see page 34). -
Page 25: Selecting An Entry From The Address Book
NAVIGATION Alternatively you can tap in the white box at the top of the screen. This will bring up a keyboard screen, which allows you to search for the name of a particular POI. After entering the whole name or part name tap Scroll through the list of POI until you find the one you are looking for and then tap... -
Page 26: Selecting A Point On The Map
NAVIGATION to view the location on the map and once in the map view you can browse the map (see page 24), to exit from the map view back to the previous screen tap to delete the currently selected address book entry. Warning: you will not be asked to confirm the deletion, so make sure that you wish to carry out this operation before tapping. -
Page 27: To Navigate Directly Home
NAVIGATION to delete any incorrect characters. to go back to the Search Menu screen. to confirm the entered co-ordinates. The screen will then change to show the Route Plan screen (see page 34). 6.7 To Navigate Directly Home Tapping Go Home will directly navigate you to your set home address without having to tap any other keys or enter an address. -
Page 28: Motorway Sign Post
NAVIGATION The option with the orange indicator is the currently selected option. to confirm the change. Note: You can toggle the map between 2D and 3D modes quickly, by tapping on the compass in the top right of the navigation screen. 7.3 Motorway Sign Post When switched on this option does two things. -
Page 29: Settings
NAVIGATION This option allows you to change the speed at which a simulation of a route is carried out. You can set the speed between 50-300 Mph/Kph. For more information on carrying out a simulation of a route see page 29. to confirm the change. -
Page 30: Trace Record
NAVIGATION When the option is shown with an orange indicator it is activated. Speed alert when exceeding the road speed limit – This lets you activate or deactivate the road speed limit warning. As well as speed camera locations, the unit contains information about the speed limit of many roads. -
Page 31: Address Book
NAVIGATION Viewing a trace record: Select the trace record you want to view. The currently selected trace record will be highlighted orange. Then use the button to view the trace record on the map. When active the button will then change to show . -
Page 32: Edit An Entry
NAVIGATION Icon – Tap the icon, you are then able to select from 10 different icons which are used to indicate this address book location on the map. Highlight the icon you wish to use and tap Once you have entered the information and are happy. Tap to confirm the entered text and to return to the address book list. -
Page 33: Day/Night Mode
NAVIGATION 12:00 AM and an end time of between 1:00 till 12:00PM. Use the buttons to select the start and end time. This way you can customise the Day/Night Mode for any time of year. Once set tap to confirm the selection and return to the settings screen. Tap to return to the settings screen without saving. -
Page 34: Time Zone
NAVIGATION The selected option will be shown with an orange indicator. Automatic – When selected the unit will always set the time zone according to your current GPS position. Manually – When selected you can manually set the time zone by using the keys to select the desired time zone from the list. -
Page 35: Navigating
NAVIGATION orange and tap to view the location on the map. 9.1 Navigating To begin navigating to you entered destination tap . The unit will begin to calculate a route from your current location to your destination. Once calculated the screen will change to the route navigation screen and you are ready to drive. -
Page 36: Route Options
NAVIGATION starting point will be your current position on the map. to change your starting point, you will be taken to the Search Menu screen. You can then enter the start point just as if you had entered a destination (see page 20). Once the start point has been entered the unit will begin calculating the route and then drive the route automatically. -
Page 37: Route Navigation Menu
NAVIGATION The unit will than calculate a detour route, this new route can be viewed on the map as a blue line. to confirm the new route the unit will return to the navigation screen but will now direct you via the detour route. -
Page 38: Go To
NAVIGATION 10.4 Go To Tapping this option will automatically cancel the route and take you to the Search menu (see page 19). Were you will be able to enter a new destination to navigate too. 10.5 Route Information Tapping this option will detail the route in text format and contains useful information about the route you have planned on a new screen. -
Page 39: Frequently Asked Questions
TECHNICAL SPECIFICATIONS Frequently asked questions I can’t find an address. Please make sure you have correctly spelt your entry. If you do not know how an address is spelt correctly, simply enter the parts of the address, you know of sure (e.g., “ond”, “Leic” for Leicester Square in London). -
Page 40: Technical Specifications
TECHNICAL SPECIFICATIONS Technical Specifications Atlas IV 500 MHz Operating System Microsoft WinCE.NET 6.0 Core Version Built-in GPS high sensitivity receiver (64 Antenna channels) Memory 64MB SDRAM Built-in Display 4.3″colour TFT touch screen Weight 0.142 kg Input Method Touch Expansion Slot MicroSD card Speaker Built-in 1.0W loud speaker... -
Page 41: Ec Declaration Of Conformity
TECHNICAL SPECIFICATIONS BINATONE TELECOM PLC 1 Apsley Way London NW2 7HF,United Kingdom. Tel: +44(0) 20 8955 2700 Fax: +44(0) 20 8344 8877 e-mail: binatoneuk@binatonetelecom.co.u ________________________________________ EC Declaration of Conformity We the manufacturer / Importer : Binatone Telecom Plc 1 Apsley Way London NW2 7HF, United Kingdom.
