5.19

Integrated USB 2.0 Rate Matching Hub

5.19.1

Overview

The PCH has integrated two USB 2.0 Rate Matching Hubs (RMH). One hub is connected
to each of the EHCI controllers as shown in
speed traffic into high-speed traffic. When the RMHs are enabled, they will appear to
software like an external hub is connected to Port 0 of each EHCI controller. In addition,
port 1 of each of the RMHs is multiplexed with Port 1 of the EHCI controllers and is able
to bypass the RMH for use as the Debug Port.
The hub operates like any USB 2.0 Discrete Hub and will consume one tier of hubs
allowed by the USB 2.0 Specification. section 4.1.1. A maximum of four additional non-
root hubs can be supported on any of the PCH USB Ports. The RMH will report the
following Vendor ID = 8087h and Product ID = 0024h.

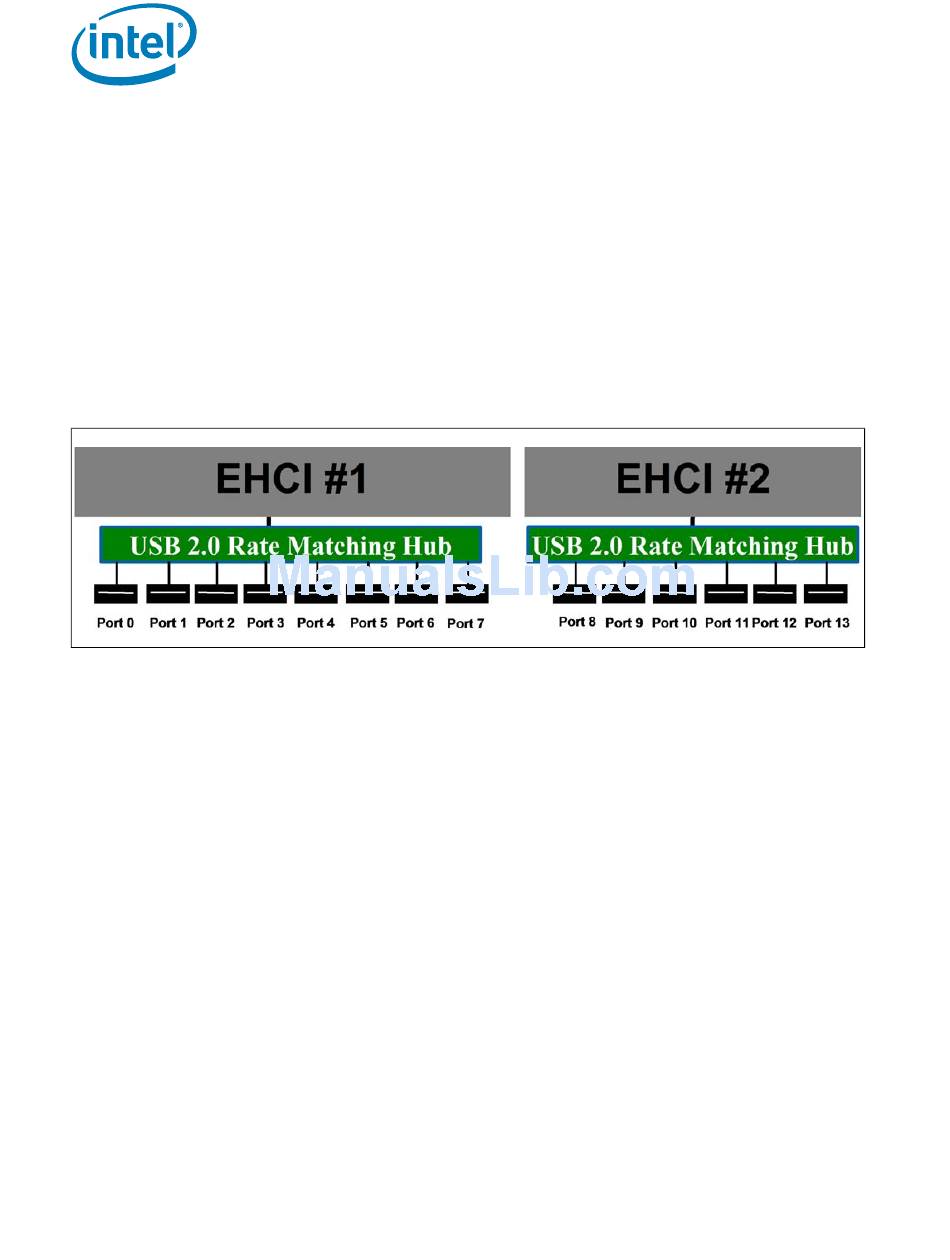

Figure 5-10. EHCI with USB 2.0 with Rate Matching Hub
5.19.2

Architecture

A hub consists of three components: the Hub Repeater, the Hub Controller, and the
Transaction Translator.
1. The Hub Repeater is responsible for connectivity setup and tear-down. It also
supports exception handling, such as bus fault detection and recovery and connect/
disconnect detect.
2. The Hub Controller provides the mechanism for host-to-hub communication. Hub-
specific status and control commands permit the host to configure a hub and to
monitor and control its individual downstream facing ports.
3. The Transaction Translator (TT) responds to high-speed split transactions and
translates them to full-/low-speed transactions with full-/low-speed devices
attached on downstream facing ports. There is 1 TT per RMH in the PCH.
See chapter 11 of the USB 2.0 Specification for more details on the architecture of the
hubs.
214
Figure 5-10. The Hubs convert low and full-
