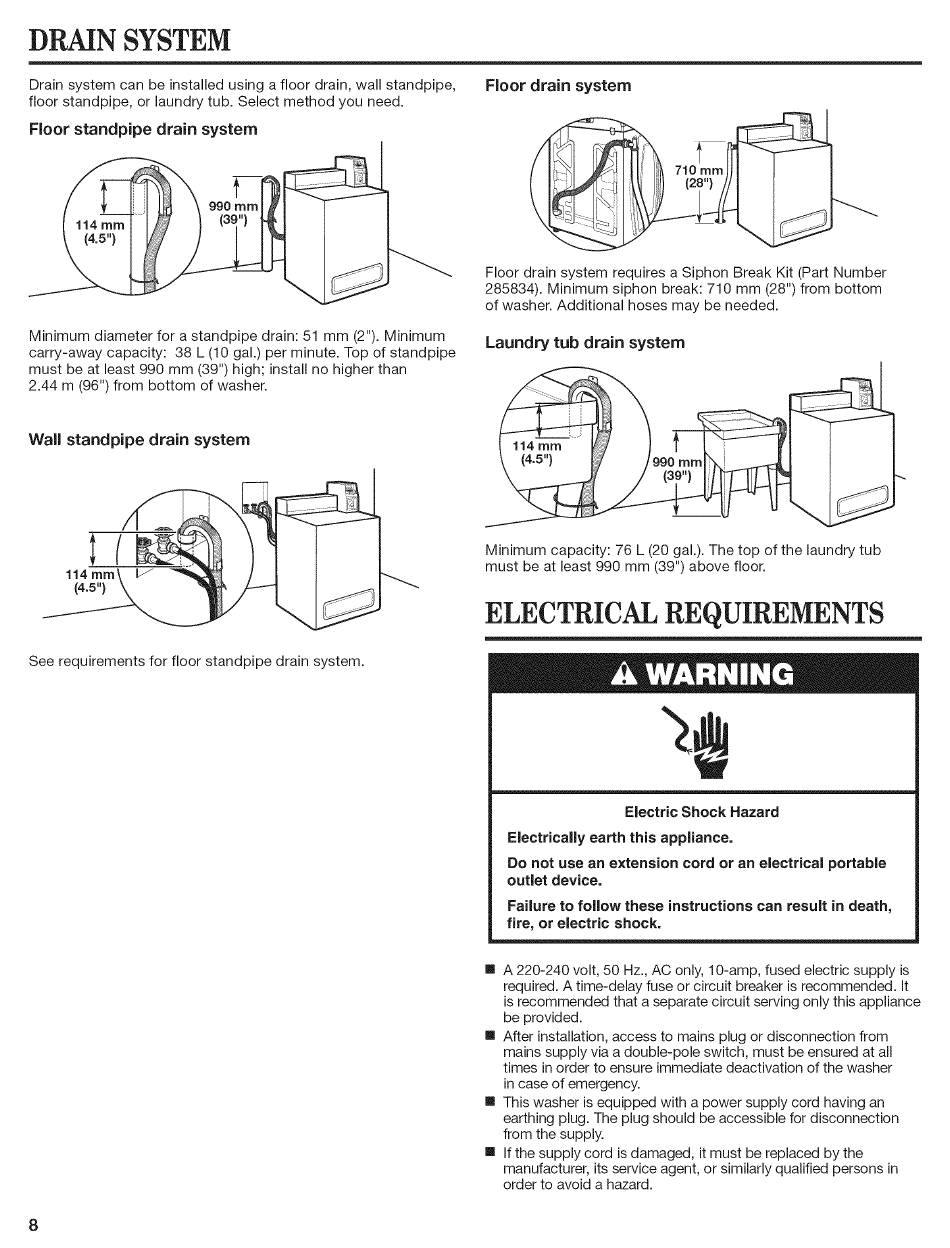

DRAIN SYSTEM
Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry
Floor standpipe drain system
114 mm
(4.5")
Minimum diameter for a standpipe
carry-away capacity: 38 L (10 gal.) per minute. Top of standpipe
must be at least 990 mm (39") high; install no higher than
2.44 m (961) from bottom of washer.
Wall standpipe drain system
114 mm
(4.5")
See requirements for floor standpipe drain system.
8
tub. Select method you need.
990 mm
(39")
drain: 51 mm (2"). Minimum
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834). Minimum siphon break: 710 mm (28") from bottom
of washer. Additional hoses may be needed.
Laundry tub drain system
114 mm
990
Minimum capacity: 76 L (20 gal.). The top of the laundry tub
must be at least 990 mm (39") above floor.

ELECTRICAL REQUIREMENTS

A WARNING
Electric
Electrically earth this appliance.
Do not use an extension
outlet device.
Failure to follow these
fire, or electric shock.
A 220-240 volt, 50 Hz., AC only, 10-amp, fused electric supply is
required. A time-delay fuse or circuit breaker is recommended.
is recommended that a separate circuit serving only this appliance
be provided.
After installation, access to mains plug or disconnection from
mains supply via a double-pole
times in order to ensure immediate
in case Of emergency.
This washer is equipped with a power supply cord having an
earthing plug. The plug should be accessible
from the supply.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in
order to avoid a hazard.
710 mm
mm
Shock Hazard
cord or an electrical portable
instructions can result in death,
switch, must be ensured at all
deactivation of the washer
for disconnection
It
