Outdoor Unit Installation Instructions

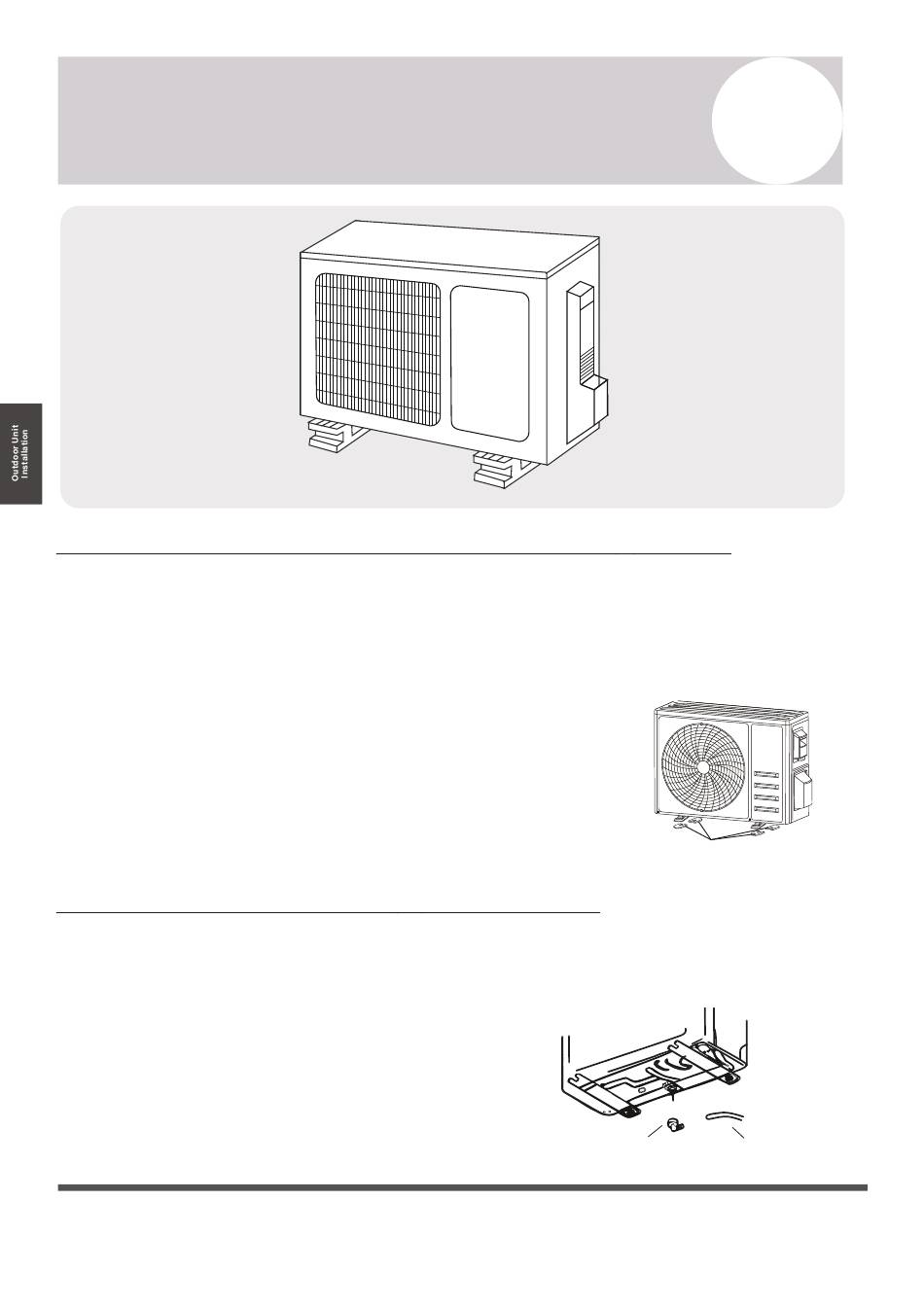

Mounting the Outdoor Unit to the Selected Location
The outdoor unit should be installed either on a pad or on a solid wall using suitable mounting
brackets and fastened securely. Follow the procedure below before connecting any pipes or cables:
Decide what the best position on the wall or on the ground is, and
▪
leave enough space to be able to carry out maintenance easily.
Anchoring dimensions are provided on Page 53.
▪ If wall mounting, fasten the support brackets to the wall using
hardware that is particularly suited for the type of wall. Use the
appropriate amount of hardware for the application.
The unit must be installed following all national regulations.
▪
Outdoor Unit Condensate Water Drainage
The condensate water and the ice formed in the outdoor unit during heat mode can be directed
away using the drain joint and drain pipe included with the system. This is optional and only needed
if the default configuration of water drainage out from the port on the bottom side is not desired.
1. Fasten the drain port in the 1 inch port located in the
part of the unit depicted in the diagram.
2. Connect the drain port and the drain pipe.
3. Ensure the condensate will drain to a suitable place.
Page 40
 
8
Install 4 rubber pads (Optional)
Drain Port
Drain Pipe
(disregard if
slab-mounting)
