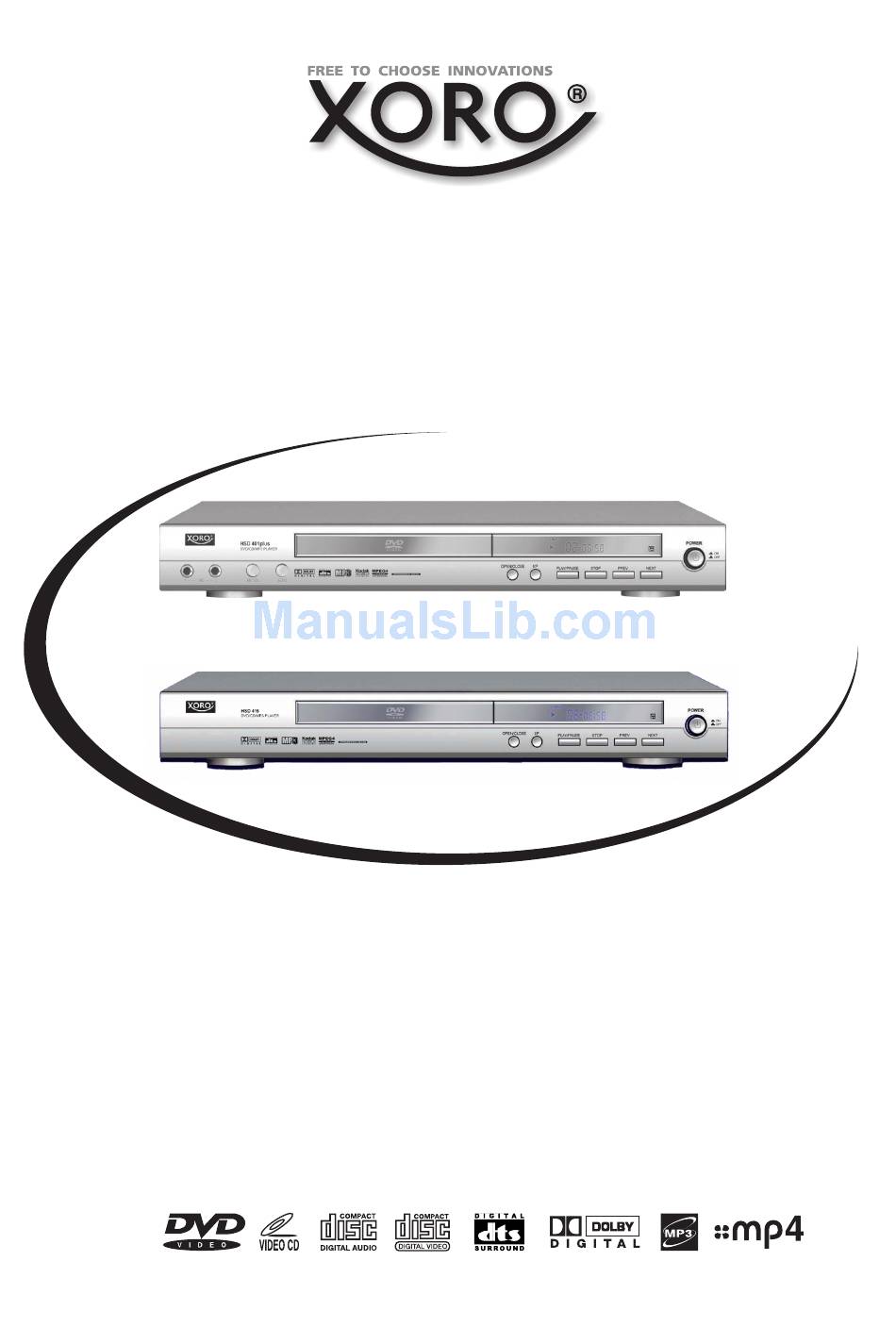

- Page 1 MPEG4 DVD - Player HSD 401plus HSD 310 / HSD 415 M a n u a l...
-
Page 2: Table Of Contents
Remote Control QUICK START Remote control Battery advise CONNECTIONS Connecting to a TV Connecting to an Audio-System Connecting to the 5.1 Audio-System (not available on HSD 310) PLAYBACK Remote control functions Buttons description Basic playback FUNCTIONS Special functions Karaoke (only model HSD 401 plus) -
Page 3: Features
4:3 Pan & Scan / 4:3 Letterbox for standart TV set 16:9-widescreen Full DVD functionality Karaoke (only on model HSD 401plus) Wide range of connections: Coaxial and optical digital outputs (optical output not on model HSD 310) SCART S-Video VGA (not on model HSD 310) Composite video Dolby Digital/MPEG 5.1 decoded analog output (not on model HSD 310) -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Marking of safety WARNING: DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DUE TO THE HIGH RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OPEN THE CABINET DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. ONLY QUALIFIED SERVICE PERSONNEL SHOULD ATTEMPT THIS. -
Page 6: Accessories
ACCESSORIES Unit of equipment Open the package of this DVD player, make sure the following accessories attached: Audio and video cable (combined Cinch cable) 1,5 V batteries Users’s manual Remote control... -
Page 7: Outputs And Control Elements Hsd 400 Plus

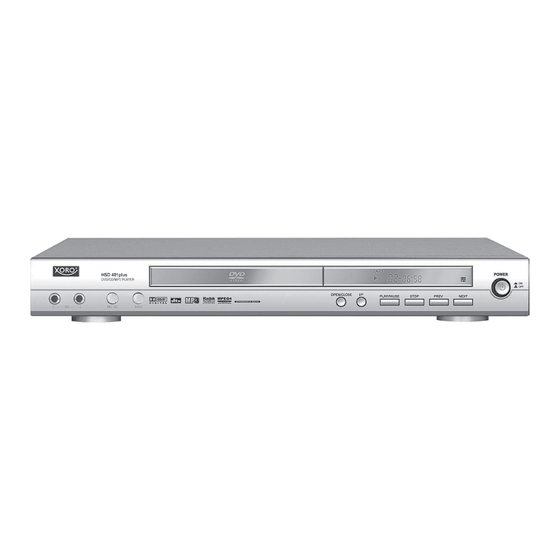

OUTPUTS AND CONTROL ELEMENTS HSD 401PLUS Front panel HSD 401 PLUS DVD/CD/MP3 PLAYER MIC VOL ECHO VOLUME AND HALL ADJUSTING KNOBS MICROPHONE INPUTS Rear panel HSD 401 PLUS DISC TRAY OPEN/CLOSE OPEN / CLOSE INTERLACED / PROGRESSIVE PLAY / PAUSE... -
Page 8: Outputs And Control Elements Hsd 310 / Hsd 415
OUTPUTS AND CONTROL ELEMENTS HDS 310 / HSD 415 Front panel HSD 415 DVD/CD/MP3 PLAYER Rear panel HSD 415 Note: 5.1 connectors not available in model HSD 310. DISC TRAY OPEN/CLOSE OPEN / CLOSE INTERLACED / PROGRESSIVE PLAY / PAUSE STOP... -
Page 9: Remote Control
OUTPUTS AND CONTROL ELEMENTS OF THE DVD-PLAYER Remote control 1. POWER Stand by on/off 2. MUTE Sound off 3. NUMBER PAD Number buttons 4. TITLE Title menu 5. AUDIO Audiotrack select 6. MENU Access to the menu of DVD 7. STOP Stop the playback of disc 8. -
Page 10: Quick Start Remote Control
QUICK START REMOTE CONTROL Remote control Insert the batteries in the remote control Open the cover Put the batteries Make sure to match - and + Close the cover NOTES: Direct the remote control at the infrared reciever (IR) of the player Do not drop the remote control Do not spill water or put anything wet on it Do not disassemble the remote control... -
Page 11: Connections
CONNECTIONS Connecting to a TV HSD 401 PLUS NOTES: Turn off all devices before connecting. Select CVBS, S-Video, SCART, YUV or VGA output according to different TVs. Follow the sketch above to connect the devices with selected output. Refer to setup instructions on the page 18,19. YUV out Use this signal source to get best picture quality. -
Page 12: Connecting To An Audio-System
CONNECTIONS Connecting to an audio system HSD 401 PLUS STEREO OUTPUT RIGHT NOTES: Please refer to the manual of the reciver or amplyfier Turn off the power of all devices before connecting The player output has a wide dynamic range. Be sure to adjust the volume of reciever to a moderate level. -
Page 13: Connecting To The 5.1 Audio-System (Not Available On Hsd 310)
SURROUND (L) AV-RECIEVER CENTER SUBWOOFER SURROUND FRONT R) SUBWOOFER FRONT LEFT FRONT RIGHT CENTER SURROUND SURROUND LEFT RIGHT See notes on the page 12, see setup instructions on the page 19 * 5.1 connection not availabel on model HSD 310... -
Page 14: Playback
PLAYBACK Remote control functions Direction buttons ( ENTER Press the Direction buttons to move the cursor to the selected item, then press the ENTER CLEAR button Press this button to clear the input digits (displays on the screen) when programming PLAY button This button starts the playback of the CD/DVD... -
Page 15: Buttons Description
PLAYBACK Buttons description SKIP buttons Press SKIP to select the next (previous) chapter (for DVD)or track (for SVCD / VCD / CD / MP3 / MPEG4). ) or ( ZOOM button Press the ZOOM button during normal playback to zoom a picture,press the Direction buttons to shift the zoom point. -
Page 16: Basic Playback
PLAYBACK Basic playback 1. Press the POWER button on the front panel of the player 2. Press the OPEN/CLOSE button on the player or on the remote control 3. Put a compatible disc in the opened tray 4. Press OPEN/CLOSE button again. ATTENTION: Do not push the tray with the hand. -
Page 17: Functions
FUNCTIONS Special functions PBC-Playback For VCD 2.0 or SVCD discs, press this button to set the PBC functions. In the PBC display of the SVCD / VCD2.0, if the PLAY button is pressed, the Player will enter PBC playback status.If the PBC is turned off, the disc will be played as VCD1.0/1.1. -
Page 18: Multimedia Playback
FUNCTIONS Multimedia playback (MP3 / MPEG4 / JPEG etc.) Smart Navi: Playback menu When a MP3 or MPEG4 disc is being played, the playback menu will appear on the screen, as shown in the following figure: SMART NAVI ROOT CD 01 CD 02 CD 03 CD 04... -
Page 19: Function Setup
Lagerung von Cds SPEAKER SETUP PAGE --SPEAKER SETUP PAGE-- DOWNMIX LT/RT CENTER STEREO REAR SUBWOOFER CNTR DELAY Note: Model HSD 310 REAR DELAY only offers TEST TONE “DOWNMIX” MAIN PAGE DOWNMIX LT/RT, STEREO, OFF CENTER ON, OFF REAR ON, OFF... - Page 20 TV DISPLAY NORMAL/PS TV TYPE MULTI.SYTEM, NTSC, PAL VIDEO OUTPUT S-VIDEO, RGB, VGA (not HSD 310), YCBCR,YPBPR AUDIO (audio language) Here you can select the language of the audio stream (if supported by the disc) SUBTITLE Language...
-
Page 21: Disc Information
DISC INFORMATION Handling precautions Do not touch the playback side of the disc. Aufnahmeseite Do not attach paper or tape to discs. To clean discs Просмотр JPEG картинок Fingerprints and dust on the disc may cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. -
Page 22: Notes On Service
NOTES ON SERVICE Check the following guide for the possible cause of a problem before contacting service. Technical Support of Xoro/MAS: Tel.: 040/77 11 09 17, Internet: www.xoro.de/support.htm Symptoms Cause No power The power plug is disconnected No picture The TV is not set to receive DVD signal output The video cable is not connected securely The DVD video mode is not matched... -
Page 23: Specification
SPECIFICATIONS DVD-Player Power supply Power consumption Weight External dimensions Signal system Laser Frequency range Signal-to noise ratio Audio dynamic range Operating conditions Outputs Composite Video output Audio output (analog audio) Supplied Accessories Audio/Video cable (3wire) 1 Remote control Batteries2 User manual Designs and specifications are subject to change without notice. - Page 24 NOTES...
- Page 25 NOTES...
- Page 26 XORO by MAS Elektronik AG Blohmstrasse 16/20 21079 Hamburg, Germany Tel.: +49 (040) 77 11 09 17 Fax: +49 (040) 76 73 35 15 xoro@mas.de www.xoro.de...
