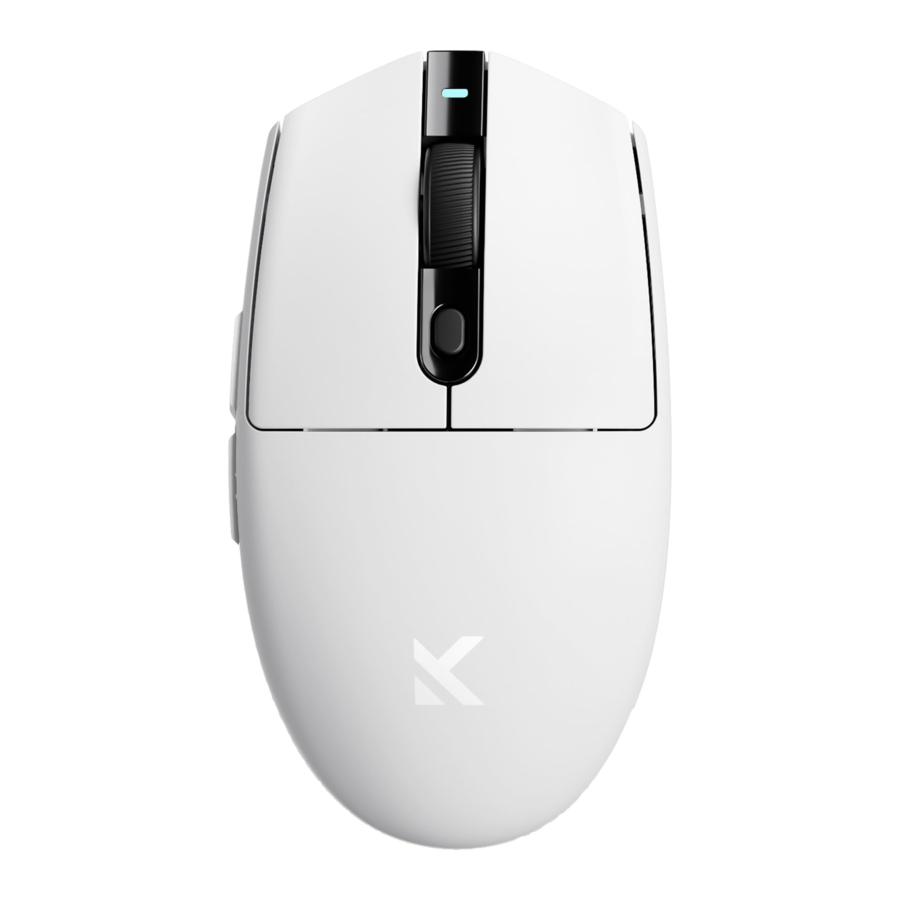

MCHOSE G3 Series Manual

Available languages

Table of Contents

Contents

1 Overview
2 Installation
3 Software
4 DPI
5 Power indicator
6 Documents / Resources

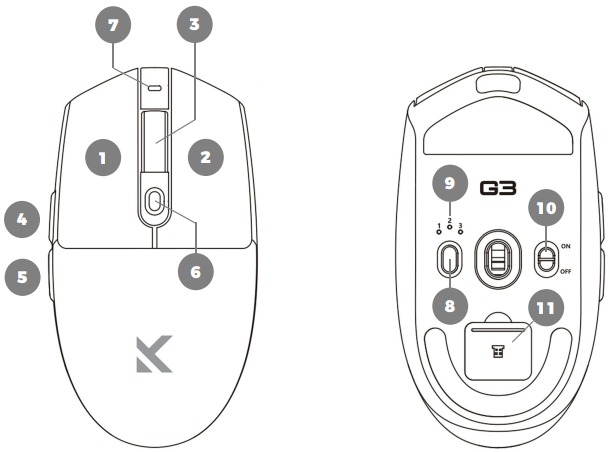

Overview

Left click button
Right click button
Mouse wheel
Forward button
Back button
DPI switch button
DPI Indicator light
Mode switch button
Connection indicator light
Power switch
Wireless receiver

Installation

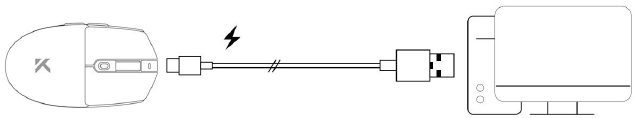

Charge/wired connection

Connect the cable to Type-C port of the mouse, and connect the cable to a USB 2.0(high-speed) or higher port of the computer.
In 2.4G/BT mode, plugging in the USB cable automatically switches the mouse to wired mode and simultaneously charges the mouse.

2.4G RF connection

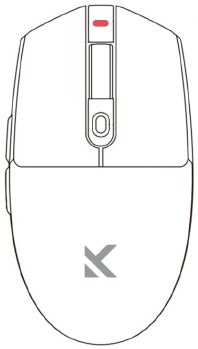

Press [Mode switch button] to enter 2.4G connection mode when [Connection indicator 1] lights up. Connect the USB receiver to the computer and the mouse is ready to use.

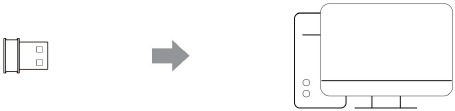

Installation - 2.4G RF connection using a dongle
Manual pairing dongle (The dongle is default paired)
Enter 2.4G connection mode, press the [Mode switch button] simultaneously for about 5 seconds. The Mouse will enter the re-pairing mode and the indicator light flashes. Re-plug the receiver and bring the mouse close to the receiver (within 20cm), and the Indicator light will be off after a successful connection.

BT connection

Press [Mode switch button] to enter BT2 connection mode when [Connection indicator 2] lights up. (The method is same for BT2 mode which use [Connection indicator 3])
Press [Mode switch button] simultaneously for about 3 seconds. The Mouse will enter the pairing mode and the indicator light flashes. Search for the device with the pairing name [G3 Mouse] and pair, the indicator light will be off after the pairing is successful.

Software

Using the Software
To customize DPl, macro settings, update the newest firmware, and more, please download software at https://www.mchose.store/pages/firmware-2

DPI

There are 6 default DPl presets.

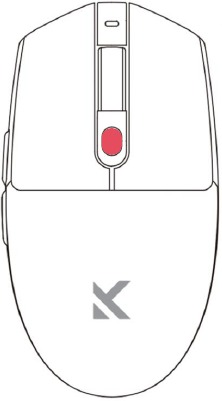

Press the [DPI switch] button at the bottom of the mouse to cycle through DPl levels. Customizing and saving DPl levels can be done within MCHOSE L7 driver software.

Factory DPI setting
DPI level	Indicator color
400	Red
800	Blue
1600	Green
3200	Yellow
6400	Cyan
12000^[1]	Purple

^[1]G3 Ultra is equipped a PAW3950 sensor with 42000 DPl in purple light.

Power indicator

When the [DPI Indicator Light] is flashing red, please charge the mouse promptly.

	The red indicator light is flashing: Please charge immediately.
	The red indicator light is on: Charging in progress.
	The green indicator light is on: Charging complete
